SDO HMI 2014-08-07 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 15.91 | 0.78 | 20.38 | -7.24 | 251.21 | 66.05 | 259.44 | 0.9230 | 308.4 | 252.1 | |
|
previous
or next observation for the same group /

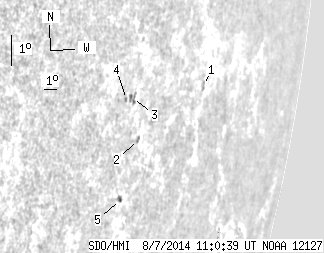

back to the solar disc SDO HMI 2014-08-07 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.25 | 0.00 | 5.03 | -6.71 | 255.48 | 70.32 | 260.75 | 0.9488 | 267.0 | 189.2 | |
| 0.00 | 2.26 | 0.00 | 2.82 | -7.88 | 250.50 | 65.34 | 258.63 | 0.9199 | 513.0 | 419.1 | |
| 0.00 | 6.33 | 0.00 | 7.61 | -6.53 | 249.69 | 64.53 | 259.94 | 0.9127 | 475.0 | 356.4 | |
| 0.00 | 1.54 | 0.00 | 1.81 | -6.51 | 249.26 | 64.10 | 259.87 | 0.9096 | 505.0 | 415.0 | |
| 0.63 | 2.53 | 0.78 | 3.11 | -9.68 | 249.77 | 64.61 | 256.56 | 0.9173 | -366.7 | -281.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
