SDO HMI 2014-08-07 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.85 | 266.97 | 21.80 | 135.26 | 9.46 | 173.86 | -11.30 | 73.09 | 0.2042 | 94.9 | 98.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

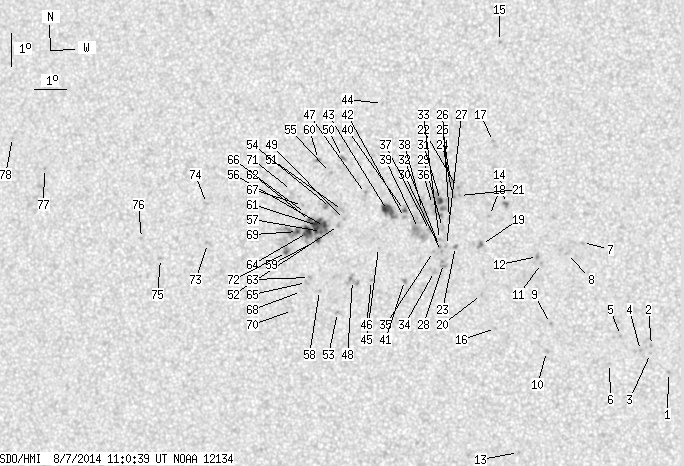

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.28 | 182.68 | -2.48 | 110.26 | 0.0462 | -941.0 | -752.6 | |
| 0.00 | 1.36 | 0.00 | 0.67 | 6.10 | 182.15 | -3.01 | 91.75 | 0.0524 | -997.0 | -766.6 | |
| 0.00 | 1.18 | 0.00 | 0.58 | 5.86 | 182.12 | -3.04 | 96.32 | 0.0533 | -851.0 | -623.0 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 5.95 | 181.82 | -3.34 | 94.18 | 0.0584 | -1051.0 | -872.0 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 6.40 | 181.20 | -3.96 | 86.89 | 0.0690 | -1040.0 | -874.1 | |
| 0.00 | 1.18 | 0.00 | 0.58 | 5.55 | 180.87 | -4.29 | 98.49 | 0.0756 | -954.0 | -661.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.22 | 180.00 | -5.16 | 59.10 | 0.1038 | -873.0 | -644.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.88 | 179.55 | -5.61 | 63.94 | 0.1081 | -919.0 | -729.9 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.75 | 179.05 | -6.11 | 84.52 | 0.1067 | -903.0 | -675.4 | |
| 0.00 | 2.44 | 0.00 | 1.22 | 5.89 | 178.93 | -6.22 | 92.50 | 0.1085 | -825.0 | -634.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 8.57 | 178.75 | -6.41 | 69.19 | 0.1187 | -976.0 | -790.3 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 8.78 | 178.62 | -6.54 | 67.91 | 0.1220 | -1259.0 | -984.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 2.81 | 178.10 | -7.06 | 115.39 | 0.1365 | -787.0 | -580.3 | |
| 0.72 | 3.44 | 0.36 | 1.72 | 10.38 | 177.59 | -7.57 | 60.32 | 0.1498 | -1090.5 | -840.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 15.34 | 177.26 | -7.90 | 39.69 | 0.2086 | -846.0 | -757.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 6.57 | 177.35 | -7.80 | 86.81 | 0.1357 | -788.0 | -518.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.27 | 177.17 | -7.99 | 51.84 | 0.1735 | -835.0 | -650.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 10.01 | 177.10 | -8.06 | 63.95 | 0.1543 | -849.0 | -661.5 | |
| 0.45 | 3.62 | 0.23 | 1.81 | 9.12 | 176.87 | -8.29 | 69.89 | 0.1522 | -1143.0 | -897.2 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 7.60 | 176.90 | -8.25 | 79.81 | 0.1452 | -722.0 | -651.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 10.60 | 176.15 | -9.01 | 63.09 | 0.1734 | -872.0 | -745.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 10.85 | 176.08 | -9.08 | 62.01 | 0.1763 | -842.0 | -777.0 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 9.05 | 176.07 | -9.09 | 71.89 | 0.1650 | -1071.0 | -859.0 | |
| 0.00 | 4.07 | 0.00 | 2.05 | 10.63 | 175.93 | -9.23 | 63.49 | 0.1770 | -652.0 | -635.9 | |
| 0.00 | 3.34 | 0.00 | 1.68 | 11.06 | 175.85 | -9.30 | 61.52 | 0.1813 | -774.0 | -631.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.90 | 175.86 | -9.30 | 67.51 | 0.1731 | -1042.0 | -756.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.08 | 175.79 | -9.37 | 72.22 | 0.1697 | -702.0 | -538.7 | |
| 0.00 | 6.51 | 0.00 | 3.27 | 8.53 | 175.70 | -9.45 | 75.49 | 0.1686 | -782.0 | -814.5 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 9.62 | 175.65 | -9.51 | 69.43 | 0.1748 | -789.0 | -679.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.89 | 175.63 | -9.53 | 73.51 | 0.1713 | -1072.0 | -864.5 | |
| 2.35 | 20.79 | 1.18 | 10.47 | 10.44 | 175.56 | -9.60 | 65.29 | 0.1813 | -691.2 | -248.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.04 | 175.57 | -9.59 | 72.76 | 0.1731 | -903.0 | -730.5 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 9.25 | 175.56 | -9.60 | 71.59 | 0.1742 | -907.0 | -667.1 | |
| 0.00 | 2.62 | 0.00 | 1.32 | 8.28 | 175.43 | -9.73 | 77.26 | 0.1722 | -992.0 | -733.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.89 | 175.38 | -9.78 | 73.90 | 0.1754 | -766.0 | -563.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.32 | 175.31 | -9.85 | 66.44 | 0.1844 | 79.0 | 104.4 | |
| 0.00 | 2.35 | 0.00 | 1.18 | 9.52 | 175.24 | -9.92 | 70.68 | 0.1808 | -775.0 | -708.5 | |
| 0.00 | 11.12 | 0.00 | 5.61 | 10.16 | 175.00 | -10.16 | 67.84 | 0.1883 | 308.0 | 351.8 | |
| 0.00 | 28.20 | 0.00 | 14.22 | 9.58 | 174.90 | -10.26 | 70.96 | 0.1867 | -84.0 | -29.8 | |
| 0.81 | 3.62 | 0.41 | 1.83 | 10.12 | 174.44 | -10.72 | 69.03 | 0.1970 | 1080.1 | 864.5 | |
| 0.00 | 2.44 | 0.00 | 1.23 | 7.99 | 174.50 | -10.66 | 79.77 | 0.1870 | -1028.0 | -775.3 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 9.91 | 174.45 | -10.71 | 70.05 | 0.1957 | 866.0 | 656.3 | |
| 8.68 | 14.83 | 4.39 | 7.50 | 10.11 | 173.91 | -11.25 | 69.93 | 0.2055 | 1128.9 | 838.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 13.37 | 173.61 | -11.55 | 56.89 | 0.2335 | 867.0 | 660.8 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 8.98 | 173.66 | -11.50 | 75.60 | 0.2042 | 774.0 | 567.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.97 | 173.47 | -11.69 | 80.64 | 0.2043 | 796.0 | 612.0 | |
| 0.00 | 2.53 | 0.00 | 1.29 | 10.61 | 173.19 | -11.97 | 68.75 | 0.2196 | 844.0 | 585.8 | |
| 0.00 | 8.95 | 0.00 | 4.54 | 7.96 | 172.87 | -12.29 | 81.08 | 0.2143 | 965.0 | 858.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.81 | 172.56 | -12.60 | 73.06 | 0.2257 | 846.0 | 731.8 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 11.69 | 172.42 | -12.74 | 65.52 | 0.2384 | -769.0 | -592.7 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 10.08 | 172.49 | -12.67 | 71.99 | 0.2282 | 947.0 | 769.3 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 9.62 | 172.38 | -12.78 | 74.07 | 0.2279 | 997.0 | 794.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 6.97 | 172.43 | -12.73 | 85.79 | 0.2203 | 934.0 | 700.7 | |
| 0.00 | 10.12 | 0.00 | 5.16 | 10.16 | 172.10 | -13.06 | 72.10 | 0.2347 | 197.0 | 762.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.23 | 172.06 | -13.10 | 67.88 | 0.2411 | -462.0 | -479.9 | |
| 3.71 | 59.84 | 1.89 | 30.55 | 9.58 | 171.94 | -13.22 | 74.69 | 0.2349 | 1138.6 | 731.5 | |
| 1.36 | -56.00 | 0.69 | -56.00 | 9.42 | 171.85 | -13.31 | 75.42 | 0.2358 | 1303.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 7.63 | 171.84 | -13.31 | 83.06 | 0.2310 | 868.0 | 661.0 | |
| 1.90 | -56.00 | 0.97 | -56.00 | 9.18 | 171.76 | -13.40 | 76.51 | 0.2363 | 1003.2 | 999999 | |
| 0.54 | 2.44 | 0.28 | 1.25 | 11.62 | 171.66 | -13.50 | 66.95 | 0.2497 | 943.3 | 701.9 | |
| 10.67 | -56.00 | 5.44 | -56.00 | 9.60 | 171.71 | -13.45 | 74.80 | 0.2387 | 1158.1 | 999999 | |
| 1.72 | -56.00 | 0.88 | -56.00 | 9.75 | 171.45 | -13.71 | 74.46 | 0.2435 | 867.3 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 8.02 | 171.52 | -13.64 | 81.55 | 0.2372 | 888.0 | 742.7 | |
| 7.23 | -56.00 | 3.69 | -56.00 | 9.38 | 171.40 | -13.76 | 75.98 | 0.2429 | 1047.9 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 7.86 | 171.43 | -13.73 | 82.24 | 0.2384 | 758.0 | 684.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 9.96 | 171.32 | -13.84 | 73.76 | 0.2465 | 738.0 | 544.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 10.20 | 171.21 | -13.95 | 72.92 | 0.2493 | 835.0 | 642.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.58 | 171.28 | -13.88 | 83.46 | 0.2404 | 758.0 | 548.6 | |
| 1.72 | -56.00 | 0.88 | -56.00 | 9.41 | 171.09 | -14.07 | 76.16 | 0.2482 | 1058.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 7.00 | 171.01 | -14.15 | 85.94 | 0.2443 | 637.0 | 450.3 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 10.65 | 170.84 | -14.32 | 71.60 | 0.2573 | 343.0 | 298.6 | |
| 0.99 | 4.25 | 0.51 | 2.17 | 8.76 | 170.76 | -14.40 | 78.95 | 0.2515 | 869.3 | 812.4 | |
| 0.00 | 2.08 | 0.00 | 1.08 | 8.96 | 168.23 | -16.93 | 79.60 | 0.2938 | 716.0 | 647.3 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 10.18 | 168.13 | -17.02 | 75.59 | 0.2988 | 846.0 | 641.6 | |
| 0.00 | 2.08 | 0.00 | 1.09 | 8.46 | 166.73 | -18.43 | 81.83 | 0.3172 | 919.0 | 694.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 9.05 | 166.09 | -19.07 | 80.24 | 0.3289 | 823.0 | 579.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 11.06 | 162.75 | -22.41 | 76.08 | 0.3871 | 743.0 | 652.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 11.96 | 161.59 | -23.57 | 74.40 | 0.4078 | 618.0 | 545.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
