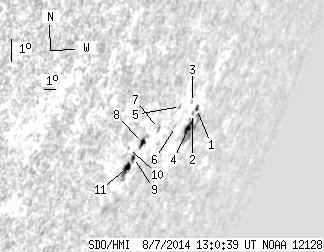

SDO HMI 2014-08-07 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.36 | 49.70 | 20.05 | 75.85 | -20.85 | 250.91 | 66.85 | 245.38 | 0.9462 | 22.9 | -110.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 2.17 | 1.77 | 3.54 | -20.12 | 252.64 | 68.58 | 246.56 | 0.9541 | 215.2 | 86.9 | |
| 0.00 | 1.45 | 0.00 | 2.34 | -20.26 | 252.42 | 68.36 | 246.37 | 0.9532 | 448.0 | 399.8 | |
| 0.00 | 0.90 | 0.00 | 1.42 | -19.85 | 252.05 | 67.99 | 246.69 | 0.9509 | 510.0 | 437.9 | |
| 5.24 | 21.60 | 8.57 | 35.75 | -20.73 | 252.51 | 68.46 | 245.91 | 0.9543 | 272.6 | -165.5 | |
| 0.00 | 1.08 | 0.00 | 1.63 | -19.88 | 251.05 | 66.99 | 246.42 | 0.9458 | 275.0 | 264.0 | |
| 0.00 | 0.72 | 0.00 | 1.11 | -20.56 | 251.22 | 67.17 | 245.76 | 0.9477 | 343.0 | 321.4 | |
| 0.00 | 2.08 | 0.00 | 2.99 | -20.48 | 249.75 | 65.70 | 245.48 | 0.9399 | -122.0 | -21.4 | |
| 2.53 | 6.24 | 3.51 | 8.64 | -20.85 | 248.80 | 64.75 | 244.85 | 0.9353 | -255.8 | -1.5 | |
| 1.17 | 12.74 | 1.62 | 17.47 | -21.32 | 248.50 | 64.44 | 244.28 | 0.9344 | -259.2 | -342.9 | |
| 0.00 | 0.72 | 0.00 | 0.96 | -20.95 | 247.82 | 63.77 | 244.47 | 0.9299 | -205.0 | -252.0 | |
| 3.34 | -9.00 | 4.58 | -9.00 | -21.63 | 248.30 | 64.24 | 243.90 | 0.9338 | -447.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
