SDO HMI 2014-08-07 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.83 | 398.62 | 79.43 | 352.21 | 11.88 | 127.84 | -56.22 | 79.77 | 0.8280 | -70.0 | -72.5 | |
|
previous
or next observation for the same group /

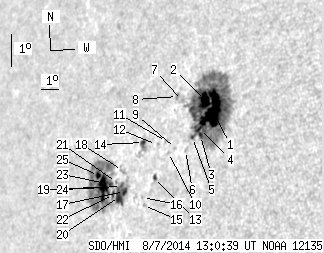

back to the solar disc SDO HMI 2014-08-07 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.50 | 237.59 | 31.40 | 199.45 | 13.03 | 129.92 | -54.14 | 78.37 | 0.8083 | -827.2 | -237.5 | |
| 10.30 | -1.00 | 8.73 | -1.00 | 13.30 | 129.45 | -54.61 | 78.06 | 0.8131 | -507.7 | 999999 | |
| 1.63 | -1.00 | 1.37 | -1.00 | 12.22 | 129.52 | -54.53 | 79.39 | 0.8120 | -170.2 | 999999 | |
| 1.90 | -1.00 | 1.61 | -1.00 | 12.40 | 129.42 | -54.64 | 79.17 | 0.8132 | -260.7 | 999999 | |
| 0.90 | -1.00 | 0.77 | -1.00 | 12.12 | 129.12 | -54.94 | 79.51 | 0.8160 | -182.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.32 | 11.70 | 128.87 | -55.19 | 80.04 | 0.8185 | -353.0 | -224.7 | |
| 0.00 | 2.35 | 0.00 | 2.05 | 13.19 | 128.22 | -55.84 | 78.23 | 0.8250 | 335.0 | 322.3 | |
| 0.00 | 2.53 | 0.00 | 2.22 | 13.29 | 127.91 | -56.15 | 78.13 | 0.8281 | 540.0 | 421.9 | |
| 0.00 | 1.17 | 0.00 | 1.02 | 11.71 | 128.31 | -55.75 | 80.03 | 0.8239 | 219.0 | 224.4 | |
| 0.00 | 0.90 | 0.00 | 0.79 | 11.56 | 127.97 | -56.09 | 80.22 | 0.8272 | 343.0 | 292.7 | |
| 0.00 | 1.72 | 0.00 | 1.51 | 11.88 | 127.75 | -56.30 | 79.83 | 0.8293 | 427.0 | 384.5 | |
| 0.00 | 0.63 | 0.00 | 0.56 | 11.74 | 127.23 | -56.83 | 80.00 | 0.8343 | 474.0 | 429.7 | |
| 1.08 | 2.44 | 0.96 | 2.17 | 10.74 | 127.42 | -56.64 | 81.21 | 0.8325 | -196.4 | -110.1 | |
| 1.63 | 7.86 | 1.48 | 7.16 | 11.74 | 126.48 | -57.58 | 80.01 | 0.8413 | 581.0 | 499.7 | |
| 0.00 | 0.54 | 0.00 | 0.49 | 9.84 | 127.04 | -57.02 | 82.28 | 0.8361 | 573.0 | 503.8 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 10.08 | 126.92 | -57.14 | 82.00 | 0.8372 | 416.0 | 498.0 | |
| 3.43 | 133.84 | 3.18 | 128.33 | 10.17 | 125.85 | -58.21 | 81.87 | 0.8472 | 759.8 | 95.0 | |
| 0.00 | 4.16 | 0.00 | 3.88 | 10.79 | 125.54 | -58.51 | 81.13 | 0.8499 | 598.0 | 485.9 | |
| 1.36 | -17.00 | 1.26 | -17.00 | 10.30 | 125.63 | -58.43 | 81.71 | 0.8491 | 709.5 | 999999 | |
| 8.22 | -17.00 | 7.68 | -17.00 | 9.99 | 125.60 | -58.46 | 82.07 | 0.8495 | 685.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.02 | 10.40 | 125.30 | -58.75 | 81.59 | 0.8521 | 603.0 | 577.2 | |
| 1.36 | -17.00 | 1.28 | -17.00 | 10.02 | 125.24 | -58.82 | 82.03 | 0.8528 | 575.9 | 999999 | |
| 1.27 | -17.00 | 1.20 | -17.00 | 10.30 | 124.97 | -59.09 | 81.69 | 0.8551 | 707.8 | 999999 | |
| 16.81 | -17.00 | 16.14 | -17.00 | 10.18 | 124.58 | -59.48 | 81.84 | 0.8586 | 572.3 | 999999 | |
| 2.44 | -17.00 | 2.37 | -17.00 | 10.51 | 124.17 | -59.89 | 81.44 | 0.8621 | 263.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
