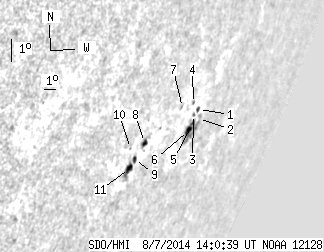

SDO HMI 2014-08-07 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.46 | 42.56 | 20.65 | 66.87 | -20.89 | 251.00 | 67.49 | 245.49 | 0.9494 | -53.5 | -105.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 2.08 | 1.52 | 3.50 | -20.15 | 252.75 | 69.25 | 246.68 | 0.9573 | 143.0 | 64.7 | |
| 0.00 | 0.72 | 0.00 | 1.25 | -20.49 | 253.09 | 69.58 | 246.42 | 0.9592 | -358.0 | -351.9 | |
| 0.36 | 1.17 | 0.60 | 1.96 | -20.28 | 252.42 | 68.92 | 246.47 | 0.9559 | 417.5 | 363.8 | |
| 0.00 | 1.27 | 0.00 | 2.05 | -19.88 | 252.04 | 68.53 | 246.79 | 0.9535 | 460.0 | 373.1 | |
| 1.27 | 18.89 | 2.14 | 32.12 | -20.61 | 252.65 | 69.14 | 246.19 | 0.9573 | 106.3 | -113.9 | |
| 3.70 | -5.00 | 6.23 | -5.00 | -20.82 | 252.50 | 68.99 | 245.94 | 0.9569 | 254.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 1.40 | -19.91 | 251.11 | 67.60 | 246.54 | 0.9490 | 394.0 | 349.9 | |
| 2.17 | 4.43 | 3.07 | 6.27 | -20.84 | 248.78 | 65.27 | 245.00 | 0.9382 | -271.0 | -24.0 | |
| 1.45 | 12.29 | 2.03 | 17.21 | -21.37 | 248.44 | 64.94 | 244.36 | 0.9372 | -235.7 | -323.3 | |
| 0.00 | 0.81 | 0.00 | 1.11 | -20.94 | 247.78 | 64.27 | 244.63 | 0.9328 | -202.0 | -243.9 | |
| 3.61 | -9.00 | 5.06 | -9.00 | -21.66 | 248.30 | 64.79 | 244.02 | 0.9369 | -511.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
