SDO HMI 2014-08-07 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.02 | 38.22 | 15.52 | 62.04 | -20.95 | 251.08 | 68.13 | 245.59 | 0.9526 | -45.2 | -117.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

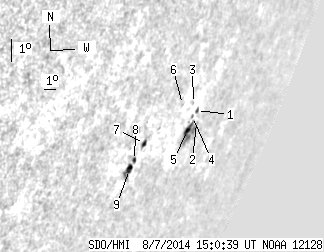

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.99 | 0.94 | 3.46 | -20.17 | 252.68 | 69.72 | 246.77 | 0.9594 | 119.0 | 67.6 | |
| 0.00 | 1.26 | 0.00 | 2.26 | -20.61 | 253.14 | 70.18 | 246.42 | 0.9620 | -413.0 | -336.8 | |
| 0.00 | 0.63 | 0.00 | 1.06 | -19.88 | 252.11 | 69.16 | 246.94 | 0.9565 | 406.0 | 368.4 | |
| 0.00 | 1.36 | 0.00 | 2.32 | -20.34 | 252.48 | 69.53 | 246.55 | 0.9587 | 429.0 | 389.7 | |
| 3.25 | 17.53 | 5.62 | 30.70 | -20.81 | 252.48 | 69.53 | 246.07 | 0.9593 | 266.9 | -115.1 | |
| 0.00 | 0.27 | 0.00 | 0.43 | -19.80 | 251.05 | 68.10 | 246.77 | 0.9513 | 189.0 | 254.7 | |
| 1.54 | 3.52 | 2.22 | 5.10 | -20.86 | 248.80 | 65.84 | 245.13 | 0.9413 | -220.1 | -40.7 | |
| 1.17 | 2.53 | 1.69 | 3.64 | -21.39 | 248.45 | 65.50 | 244.49 | 0.9403 | -177.5 | -89.5 | |
| 3.52 | 9.13 | 5.05 | 13.07 | -21.68 | 248.31 | 65.35 | 244.15 | 0.9400 | -458.7 | -386.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
