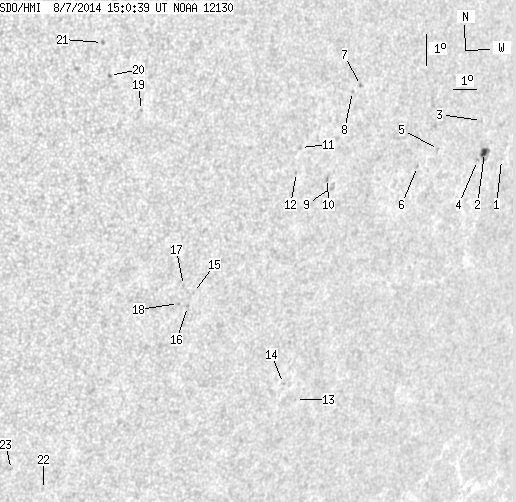

SDO HMI 2014-08-07 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.43 | 33.68 | 2.86 | 25.32 | -8.11 | 229.28 | 46.33 | 253.13 | 0.7478 | 93.4 | 187.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.31 | -8.02 | 235.70 | 52.74 | 255.52 | 0.8162 | 357.0 | 432.2 | |
| 3.43 | 9.85 | 2.86 | 8.22 | -7.72 | 234.79 | 51.83 | 255.62 | 0.8065 | 692.4 | 431.6 | |
| 0.00 | 1.36 | 0.00 | 1.12 | -6.70 | 234.47 | 51.52 | 256.77 | 0.8009 | 463.0 | 385.6 | |
| 0.00 | 1.36 | 0.00 | 1.12 | -7.95 | 234.48 | 51.52 | 255.26 | 0.8039 | 717.0 | 632.9 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -7.43 | 232.50 | 49.55 | 255.29 | 0.7824 | -388.0 | -359.6 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -7.88 | 231.58 | 48.63 | 254.43 | 0.7739 | 559.0 | 446.9 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -5.13 | 228.66 | 45.71 | 257.04 | 0.7339 | 686.0 | 612.1 | |
| 0.00 | 1.26 | 0.00 | 0.91 | -5.29 | 228.33 | 45.37 | 256.72 | 0.7304 | 617.0 | 539.1 | |
| 0.00 | 2.98 | 0.00 | 2.17 | -8.20 | 227.80 | 44.85 | 252.68 | 0.7335 | 433.0 | 337.6 | |
| 0.00 | 2.08 | 0.00 | 1.50 | -7.93 | 227.55 | 44.59 | 252.94 | 0.7297 | 720.0 | 550.9 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -6.86 | 226.26 | 43.31 | 253.87 | 0.7112 | 720.0 | 608.1 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -7.64 | 226.18 | 43.23 | 252.80 | 0.7129 | 665.0 | 608.7 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -14.95 | 227.55 | 44.59 | 244.00 | 0.7569 | -451.0 | -343.5 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -14.38 | 226.87 | 43.92 | 244.38 | 0.7475 | -554.0 | -529.0 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -11.13 | 222.44 | 39.49 | 246.31 | 0.6837 | -477.0 | -502.0 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -11.57 | 222.27 | 39.32 | 245.63 | 0.6838 | -513.0 | -396.3 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -10.88 | 222.00 | 39.05 | 246.42 | 0.6773 | -528.0 | -400.3 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -11.44 | 221.89 | 38.94 | 245.59 | 0.6788 | -634.0 | -618.5 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -5.25 | 219.74 | 36.79 | 253.46 | 0.6243 | -633.0 | -496.3 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -4.08 | 218.46 | 35.51 | 254.70 | 0.6028 | -691.0 | -599.7 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -3.04 | 218.15 | 35.20 | 256.24 | 0.5948 | -824.0 | -700.8 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -17.16 | 217.67 | 34.72 | 235.20 | 0.6650 | -469.0 | -386.2 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -16.42 | 216.29 | 33.34 | 235.11 | 0.6449 | 567.0 | 552.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
