SDO HMI 2014-08-07 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.66 | 240.21 | 18.06 | 121.04 | 9.47 | 173.44 | -9.51 | 70.55 | 0.1750 | 247.0 | 165.7 | |
|
previous
or next observation for the same group /

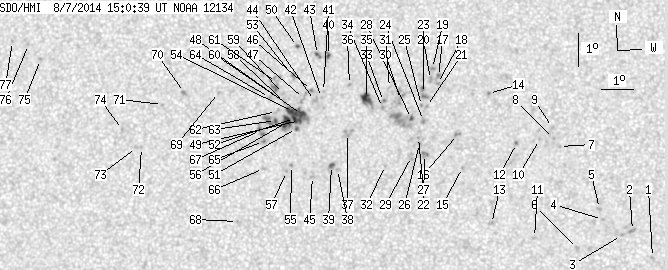

back to the solar disc SDO HMI 2014-08-07 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | 5.35 | 182.79 | -0.16 | 169.48 | 0.0153 | -934.0 | -693.1 | |
| 0.00 | 2.80 | 0.00 | 1.39 | 6.17 | 182.18 | -0.77 | 92.66 | 0.0134 | -879.0 | -875.5 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 6.02 | 181.85 | -1.11 | 99.65 | 0.0196 | -858.0 | -688.4 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 6.50 | 181.26 | -1.69 | 79.87 | 0.0299 | -998.0 | -879.1 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 6.84 | 181.17 | -1.78 | 70.27 | 0.0329 | -968.0 | -848.8 | |
| 0.00 | 2.35 | 0.00 | 1.16 | 5.62 | 180.50 | -2.45 | 103.39 | 0.0439 | -795.0 | -529.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.72 | 179.94 | -3.02 | 49.80 | 0.0684 | -849.0 | -647.8 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.96 | 179.75 | -3.20 | 48.86 | 0.0736 | -979.0 | -790.5 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.29 | 179.72 | -3.24 | 45.87 | 0.0780 | -806.0 | -613.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.93 | 179.32 | -3.63 | 52.71 | 0.0791 | -981.0 | -829.2 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 5.95 | 179.19 | -3.77 | 93.74 | 0.0658 | -791.0 | -604.2 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.80 | 178.61 | -4.34 | 58.65 | 0.0880 | -1233.0 | -950.8 | |
| 0.00 | 2.89 | 0.00 | 1.44 | 6.36 | 177.87 | -5.09 | 87.93 | 0.0886 | -955.0 | -615.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.32 | 177.73 | -5.23 | 51.18 | 0.1156 | -1025.0 | -869.5 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.06 | 176.95 | -6.00 | 72.36 | 0.1091 | -865.0 | -654.3 | |
| 0.00 | 3.07 | 0.00 | 1.53 | 9.06 | 176.78 | -6.17 | 64.59 | 0.1180 | -1046.0 | -881.3 | |
| 0.00 | 2.62 | 0.00 | 1.31 | 10.82 | 176.16 | -6.79 | 55.05 | 0.1424 | -968.0 | -794.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.60 | 176.14 | -6.82 | 56.42 | 0.1407 | -941.0 | -842.6 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 11.06 | 175.97 | -6.98 | 54.40 | 0.1474 | -878.0 | -716.8 | |
| 0.00 | 3.07 | 0.00 | 1.54 | 10.72 | 175.91 | -7.04 | 56.53 | 0.1450 | -742.0 | -604.5 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 9.90 | 175.81 | -7.15 | 61.96 | 0.1395 | -850.0 | -625.7 | |
| 0.00 | 4.07 | 0.00 | 2.03 | 8.44 | 175.77 | -7.18 | 72.15 | 0.1305 | -943.0 | -898.2 | |
| 0.00 | 6.23 | 0.00 | 3.12 | 10.29 | 175.71 | -7.25 | 59.82 | 0.1442 | -727.0 | -737.0 | |
| 0.00 | 2.89 | 0.00 | 1.45 | 9.47 | 175.72 | -7.23 | 65.01 | 0.1376 | -945.0 | -802.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.93 | 175.65 | -7.30 | 62.27 | 0.1421 | -764.0 | -575.0 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.77 | 175.61 | -7.34 | 70.12 | 0.1349 | -979.0 | -871.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 8.95 | 175.58 | -7.37 | 68.93 | 0.1365 | -921.0 | -802.9 | |
| 0.81 | 24.30 | 0.41 | 12.17 | 9.53 | 175.35 | -7.60 | 65.70 | 0.1438 | -885.7 | -149.7 | |
| 0.00 | 3.34 | 0.00 | 1.67 | 8.37 | 175.37 | -7.58 | 73.46 | 0.1368 | -597.0 | -724.2 | |
| 0.00 | 7.14 | 0.00 | 3.58 | 10.10 | 174.99 | -7.96 | 63.15 | 0.1535 | 460.0 | 408.4 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 10.46 | 174.64 | -8.31 | 62.06 | 0.1616 | 741.0 | 600.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.09 | 174.57 | -8.38 | 76.74 | 0.1489 | -772.0 | -633.6 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 10.03 | 174.47 | -8.49 | 64.94 | 0.1612 | 1120.0 | 886.1 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 9.85 | 174.44 | -8.51 | 66.06 | 0.1603 | 944.0 | 723.1 | |
| 5.96 | 11.93 | 3.00 | 5.99 | 10.12 | 173.93 | -9.02 | 65.74 | 0.1701 | 1141.8 | 860.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 10.54 | 173.39 | -9.56 | 64.77 | 0.1814 | 1038.0 | 790.0 | |
| 0.00 | 6.87 | 0.00 | 3.45 | 9.04 | 173.37 | -9.59 | 72.77 | 0.1730 | 766.0 | 726.7 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 7.94 | 173.08 | -9.87 | 79.35 | 0.1735 | 917.0 | 716.0 | |
| 1.08 | 2.80 | 0.55 | 1.41 | 8.06 | 172.89 | -10.06 | 78.86 | 0.1771 | 1158.1 | 975.6 | |
| 0.90 | 4.07 | 0.46 | 2.05 | 11.41 | 172.70 | -10.25 | 62.10 | 0.1983 | -781.9 | -547.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.31 | 172.58 | -10.37 | 67.52 | 0.1926 | 802.0 | 664.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.12 | 172.52 | -10.43 | 68.52 | 0.1924 | 960.0 | 792.1 | |
| 0.63 | 3.34 | 0.32 | 1.69 | 11.43 | 172.35 | -10.60 | 62.74 | 0.2038 | -627.9 | -537.9 | |
| 0.00 | 3.70 | 0.00 | 1.87 | 10.03 | 172.31 | -10.65 | 69.36 | 0.1953 | 995.0 | 692.8 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 7.72 | 172.31 | -10.64 | 81.23 | 0.1860 | 773.0 | 588.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 10.33 | 172.20 | -10.75 | 68.08 | 0.1987 | 961.0 | 811.3 | |
| 0.00 | 4.07 | 0.00 | 2.06 | 10.08 | 171.96 | -10.99 | 69.66 | 0.2012 | 806.0 | 666.4 | |
| 5.51 | 39.21 | 2.79 | 19.83 | 9.60 | 171.91 | -11.04 | 72.07 | 0.1994 | 1172.4 | 813.0 | |
| 1.54 | -48.00 | 0.78 | -48.00 | 9.41 | 171.85 | -11.10 | 73.03 | 0.1994 | 1252.0 | 999999 | |
| 0.63 | 1.63 | 0.32 | 0.82 | 11.66 | 171.71 | -11.24 | 63.02 | 0.2152 | 858.7 | 724.5 | |
| 0.72 | 1.99 | 0.37 | 1.00 | 9.17 | 171.77 | -11.19 | 74.34 | 0.1998 | 1060.6 | 903.5 | |
| 3.61 | -48.00 | 1.83 | -48.00 | 9.47 | 171.70 | -11.26 | 72.97 | 0.2023 | 1278.1 | 999999 | |
| 0.00 | 3.43 | 0.00 | 1.74 | 10.75 | 171.62 | -11.33 | 67.17 | 0.2104 | 799.0 | 572.7 | |
| 6.14 | -48.00 | 3.11 | -48.00 | 9.68 | 171.63 | -11.33 | 72.05 | 0.2044 | 1075.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 8.04 | 171.64 | -11.31 | 80.05 | 0.1980 | 969.0 | 856.5 | |
| 7.23 | -48.00 | 3.66 | -48.00 | 9.34 | 171.45 | -11.50 | 73.88 | 0.2058 | 1059.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 7.85 | 171.49 | -11.46 | 81.08 | 0.2001 | 882.0 | 750.5 | |
| 0.00 | 2.44 | 0.00 | 1.24 | 9.95 | 171.36 | -11.59 | 71.16 | 0.2100 | 767.0 | 644.5 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 10.22 | 171.32 | -11.63 | 69.98 | 0.2121 | 672.0 | 499.0 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 10.07 | 171.17 | -11.78 | 70.90 | 0.2137 | 759.0 | 607.7 | |
| 0.00 | 9.94 | 0.00 | 5.04 | 10.55 | 171.09 | -11.86 | 68.87 | 0.2176 | 930.0 | 713.4 | |
| 0.00 | 2.44 | 0.00 | 1.24 | 9.67 | 171.12 | -11.83 | 72.76 | 0.2126 | 646.0 | 549.6 | |
| 0.90 | 8.67 | 0.46 | 4.40 | 9.40 | 171.10 | -11.85 | 74.04 | 0.2117 | 1066.7 | 857.6 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 10.09 | 170.89 | -12.07 | 71.18 | 0.2184 | 755.0 | 654.2 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 8.75 | 170.74 | -12.21 | 77.37 | 0.2152 | 810.0 | 716.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 7.93 | 170.77 | -12.18 | 81.16 | 0.2125 | 898.0 | 663.8 | |
| 0.00 | 5.78 | 0.00 | 2.93 | 9.08 | 170.64 | -12.31 | 75.96 | 0.2181 | 812.0 | 749.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 6.30 | 170.00 | -12.96 | 88.87 | 0.2239 | 921.0 | 724.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 10.21 | 169.27 | -13.69 | 72.63 | 0.2451 | 806.0 | 631.1 | |
| 0.00 | 2.53 | 0.00 | 1.30 | 10.18 | 168.18 | -14.77 | 73.81 | 0.2624 | 950.0 | 776.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 9.80 | 167.50 | -15.45 | 75.79 | 0.2721 | 748.0 | 598.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 8.47 | 166.89 | -16.07 | 80.93 | 0.2784 | 616.0 | 586.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 8.47 | 166.73 | -16.23 | 81.01 | 0.2811 | 816.0 | 666.9 | |
| 0.00 | 1.99 | 0.00 | 1.03 | 9.00 | 166.25 | -16.70 | 79.37 | 0.2900 | 778.0 | 507.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 11.05 | 163.47 | -19.48 | 74.55 | 0.3410 | 803.0 | 668.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 11.49 | 163.05 | -19.91 | 73.56 | 0.3494 | 756.0 | 640.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 11.56 | 162.51 | -20.44 | 73.70 | 0.3580 | 766.0 | 651.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
