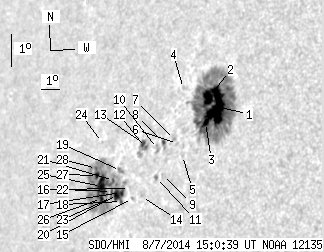

SDO HMI 2014-08-07 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.96 | 416.60 | 80.95 | 358.58 | 11.93 | 127.75 | -55.20 | 79.70 | 0.8181 | -103.0 | -44.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.77 | 240.23 | 29.97 | 196.44 | 13.16 | 130.00 | -52.95 | 78.16 | 0.7963 | -887.7 | -243.6 | |
| 12.56 | -1.00 | 10.35 | -1.00 | 13.39 | 129.51 | -53.45 | 77.89 | 0.8014 | -519.0 | 999999 | |
| 4.52 | -1.00 | 3.71 | -1.00 | 12.63 | 129.59 | -53.36 | 78.85 | 0.8003 | -478.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 13.55 | 128.11 | -54.84 | 77.76 | 0.8155 | 570.0 | 516.1 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 11.53 | 128.69 | -54.26 | 80.23 | 0.8092 | -210.0 | -117.7 | |
| 0.00 | 1.63 | 0.00 | 1.38 | 11.87 | 128.32 | -54.63 | 79.82 | 0.8129 | 272.0 | 218.3 | |
| 0.00 | 1.45 | 0.00 | 1.23 | 11.98 | 128.13 | -54.82 | 79.69 | 0.8149 | 331.0 | 308.6 | |
| 1.17 | 4.16 | 1.01 | 3.58 | 11.84 | 127.57 | -55.38 | 79.88 | 0.8204 | 542.5 | 460.0 | |
| 0.00 | 1.45 | 0.00 | 1.24 | 10.84 | 127.80 | -55.15 | 81.10 | 0.8180 | -219.0 | -259.6 | |
| 0.00 | 4.16 | 0.00 | 3.61 | 11.63 | 127.30 | -55.65 | 80.13 | 0.8230 | 414.0 | 294.2 | |
| 0.00 | 1.81 | 0.00 | 1.56 | 10.75 | 127.50 | -55.45 | 81.20 | 0.8210 | -427.0 | -268.4 | |
| 0.72 | 11.93 | 0.64 | 10.56 | 11.60 | 126.64 | -56.31 | 80.17 | 0.8294 | 705.8 | 500.0 | |
| 2.08 | -12.00 | 1.84 | -12.00 | 11.71 | 126.49 | -56.46 | 80.04 | 0.8308 | 577.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.79 | 10.11 | 126.84 | -56.11 | 81.98 | 0.8274 | 644.0 | 580.9 | |
| 0.00 | 1.08 | 0.00 | 0.96 | 10.00 | 126.36 | -56.59 | 82.10 | 0.8320 | 597.0 | 550.7 | |
| 0.00 | 0.72 | 0.00 | 0.65 | 10.29 | 126.12 | -56.84 | 81.75 | 0.8344 | 552.0 | 515.5 | |
| 2.62 | 142.21 | 2.36 | 132.21 | 10.13 | 125.70 | -57.25 | 81.94 | 0.8383 | 757.7 | 152.9 | |
| 0.90 | -17.00 | 0.81 | -17.00 | 9.86 | 125.78 | -57.18 | 82.26 | 0.8376 | 560.1 | 999999 | |
| 0.00 | 3.25 | 0.00 | 2.96 | 10.79 | 125.46 | -57.50 | 81.15 | 0.8405 | 618.0 | 557.9 | |
| 6.96 | -17.00 | 6.32 | -17.00 | 10.05 | 125.50 | -57.46 | 82.03 | 0.8403 | 763.0 | 999999 | |
| 0.99 | -17.00 | 0.91 | -17.00 | 10.45 | 125.15 | -57.80 | 81.55 | 0.8434 | 632.6 | 999999 | |
| 1.54 | -17.00 | 1.41 | -17.00 | 10.11 | 125.13 | -57.82 | 81.95 | 0.8436 | 694.1 | 999999 | |
| 0.27 | -17.00 | 0.25 | -17.00 | 9.93 | 125.18 | -57.77 | 82.17 | 0.8432 | 539.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.26 | 11.53 | 124.16 | -58.80 | 80.26 | 0.8524 | -71.0 | -95.0 | |
| 15.00 | -17.00 | 13.99 | -17.00 | 10.21 | 124.51 | -58.44 | 81.82 | 0.8493 | 516.5 | 999999 | |
| 3.07 | -17.00 | 2.86 | -17.00 | 9.85 | 124.62 | -58.34 | 82.25 | 0.8484 | 502.7 | 999999 | |
| 2.62 | -17.00 | 2.47 | -17.00 | 10.52 | 124.18 | -58.77 | 81.45 | 0.8522 | 225.5 | 999999 | |
| 2.17 | -17.00 | 2.05 | -17.00 | 10.72 | 124.06 | -58.90 | 81.21 | 0.8533 | 208.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
