SDO HMI 2014-08-07 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.30 | 32.52 | 13.55 | 55.95 | -21.00 | 251.04 | 69.20 | 245.78 | 0.9577 | -36.6 | -197.2 | |
|
previous
or next observation for the same group /

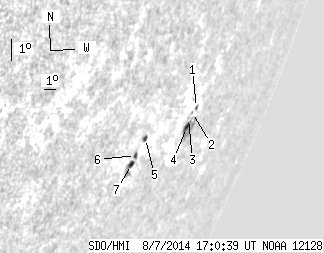

back to the solar disc SDO HMI 2014-08-07 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 3.19 | -20.22 | 252.78 | 70.93 | 246.98 | 0.9648 | -149.0 | -106.2 | |
| 0.00 | 0.72 | 0.00 | 1.32 | -20.36 | 252.53 | 70.68 | 246.78 | 0.9639 | 387.0 | 350.1 | |
| 0.00 | 0.27 | 0.00 | 0.49 | -20.54 | 252.32 | 70.47 | 246.56 | 0.9632 | 388.0 | 377.0 | |
| 3.16 | 16.71 | 5.80 | 31.24 | -20.85 | 252.46 | 70.62 | 246.27 | 0.9641 | 226.5 | -202.6 | |
| 1.35 | 2.71 | 2.05 | 4.10 | -20.83 | 248.71 | 66.86 | 245.42 | 0.9465 | -229.3 | -70.2 | |
| 1.17 | 2.71 | 1.77 | 4.08 | -21.36 | 248.35 | 66.51 | 244.78 | 0.9455 | -194.0 | -138.1 | |
| 2.62 | 7.68 | 3.93 | 11.53 | -21.65 | 248.29 | 66.45 | 244.47 | 0.9456 | -440.5 | -402.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
