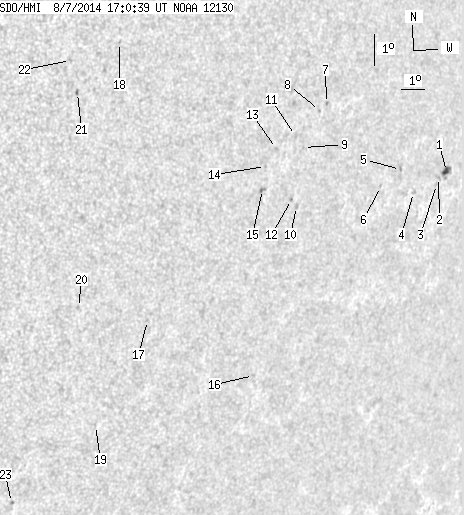

SDO HMI 2014-08-07 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.43 | 39.74 | 2.94 | 30.12 | -7.93 | 228.70 | 46.86 | 253.57 | 0.7530 | 141.8 | 165.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.43 | 7.50 | 2.94 | 6.43 | -7.76 | 234.84 | 52.99 | 255.90 | 0.8180 | 659.1 | 382.4 | |
| 0.00 | 2.71 | 0.00 | 2.30 | -7.91 | 234.46 | 52.61 | 255.61 | 0.8146 | 705.0 | 437.2 | |
| 0.00 | 1.08 | 0.00 | 0.92 | -8.12 | 234.39 | 52.55 | 255.34 | 0.8145 | 501.0 | 435.6 | |
| 0.00 | 1.90 | 0.00 | 1.57 | -8.27 | 233.27 | 51.42 | 254.82 | 0.8038 | 506.0 | 421.1 | |
| 0.00 | 1.26 | 0.00 | 1.03 | -7.49 | 232.50 | 50.65 | 255.55 | 0.7940 | -366.0 | -243.3 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -7.94 | 231.61 | 49.76 | 254.72 | 0.7860 | 467.0 | 356.8 | |
| 0.00 | 1.45 | 0.00 | 1.07 | -5.13 | 228.74 | 46.90 | 257.41 | 0.7474 | 639.0 | 591.4 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -5.32 | 228.45 | 46.60 | 257.07 | 0.7446 | 625.0 | 508.1 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -6.42 | 227.86 | 46.01 | 255.43 | 0.7410 | 394.0 | 386.4 | |
| 0.00 | 2.44 | 0.00 | 1.81 | -8.25 | 227.79 | 45.94 | 253.02 | 0.7459 | 420.0 | 357.3 | |
| 0.00 | 1.90 | 0.00 | 1.38 | -6.01 | 227.46 | 45.61 | 255.83 | 0.7353 | 214.0 | 282.7 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -8.01 | 227.53 | 45.69 | 253.24 | 0.7423 | 683.0 | 579.0 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -6.35 | 226.67 | 44.82 | 255.11 | 0.7272 | 599.0 | 468.5 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -6.88 | 226.25 | 44.41 | 254.26 | 0.7241 | 690.0 | 559.2 | |
| 0.00 | 2.35 | 0.00 | 1.69 | -7.59 | 226.21 | 44.37 | 253.29 | 0.7260 | 725.0 | 538.5 | |
| 0.00 | 1.45 | 0.00 | 1.09 | -13.53 | 226.92 | 45.07 | 245.97 | 0.7559 | -578.0 | -494.6 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -11.39 | 221.98 | 40.13 | 246.29 | 0.6924 | -762.0 | -532.3 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -2.59 | 219.99 | 38.15 | 258.12 | 0.6328 | -547.0 | -395.5 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -14.65 | 220.49 | 38.65 | 241.12 | 0.6923 | -512.0 | -464.6 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -10.78 | 219.13 | 37.29 | 245.56 | 0.6560 | -743.0 | -525.4 | |
| 0.00 | 2.08 | 0.00 | 1.30 | -4.02 | 218.44 | 36.59 | 255.27 | 0.6171 | -755.0 | -509.6 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -3.01 | 218.13 | 36.28 | 256.73 | 0.6094 | -752.0 | -644.3 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -16.97 | 217.65 | 35.80 | 236.24 | 0.6753 | -554.0 | -510.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
