SDO HMI 2014-08-07 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.38 | 234.09 | 19.32 | 117.63 | 9.45 | 173.59 | -8.25 | 72.00 | 0.1556 | 202.0 | 155.4 | |
|
previous
or next observation for the same group /

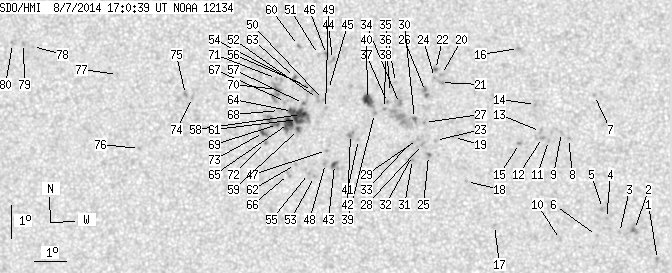

back to the solar disc SDO HMI 2014-08-07 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.07 | 5.29 | 182.87 | 1.03 | 228.11 | 0.0241 | -844.0 | -701.7 | |
| 0.00 | 4.97 | 0.00 | 2.46 | 6.20 | 182.17 | 0.33 | 268.85 | 0.0057 | -1037.0 | -875.7 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 6.11 | 181.72 | -0.13 | 126.96 | 0.0028 | -839.0 | -750.3 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 6.54 | 181.32 | -0.53 | 57.88 | 0.0108 | -1108.0 | -957.2 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 6.84 | 181.20 | -0.65 | 45.54 | 0.0158 | -1050.0 | -876.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 6.02 | 181.01 | -0.83 | 102.76 | 0.0149 | -821.0 | -700.8 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 10.28 | 180.95 | -0.90 | 12.26 | 0.0730 | -931.0 | -651.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.97 | 180.15 | -1.70 | 31.25 | 0.0566 | -913.0 | -751.2 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 9.15 | 179.93 | -1.91 | 32.67 | 0.0613 | -833.0 | -618.8 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 5.90 | 179.91 | -1.93 | 99.09 | 0.0341 | -827.0 | -608.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 8.91 | 179.53 | -2.31 | 40.21 | 0.0620 | -958.0 | -760.7 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.00 | 179.35 | -2.50 | 41.44 | 0.0653 | -1145.0 | -978.1 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 9.18 | 179.29 | -2.56 | 40.33 | 0.0684 | -932.0 | -817.5 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 10.00 | 179.13 | -2.72 | 35.19 | 0.0814 | -936.0 | -783.0 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.81 | 178.64 | -3.20 | 50.47 | 0.0719 | -1155.0 | -899.1 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 11.71 | 178.59 | -3.26 | 30.13 | 0.1114 | -922.0 | -756.3 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 6.32 | 177.89 | -3.95 | 88.25 | 0.0689 | -890.0 | -667.8 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.65 | 177.02 | -4.82 | 73.02 | 0.0875 | -928.0 | -715.2 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 8.98 | 176.61 | -5.24 | 61.60 | 0.1030 | -943.0 | -810.7 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 10.90 | 176.20 | -5.64 | 49.59 | 0.1274 | -930.0 | -822.6 | |
| 0.00 | 2.89 | 0.00 | 1.44 | 10.65 | 176.18 | -5.67 | 51.23 | 0.1251 | -828.0 | -756.1 | |
| 0.45 | 1.90 | 0.23 | 0.95 | 11.05 | 176.01 | -5.83 | 49.60 | 0.1315 | -890.0 | -757.8 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.89 | 176.05 | -5.80 | 64.68 | 0.1109 | -970.0 | -655.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.80 | 175.99 | -5.86 | 51.20 | 0.1292 | -776.0 | -652.5 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 8.43 | 175.84 | -6.00 | 69.22 | 0.1112 | -1196.0 | -965.4 | |
| 0.00 | 3.97 | 0.00 | 1.99 | 10.37 | 175.72 | -6.13 | 55.13 | 0.1286 | -694.0 | -739.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.43 | 175.70 | -6.14 | 61.74 | 0.1204 | -966.0 | -822.7 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 8.76 | 175.65 | -6.20 | 67.08 | 0.1163 | -1004.0 | -822.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.91 | 175.49 | -6.35 | 66.40 | 0.1198 | -789.0 | -724.8 | |
| 0.36 | 23.85 | 0.18 | 11.92 | 9.55 | 175.39 | -6.46 | 62.03 | 0.1261 | -1002.2 | -157.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 8.30 | 175.35 | -6.50 | 71.65 | 0.1185 | -918.0 | -704.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.42 | 175.35 | -6.50 | 70.67 | 0.1192 | -849.0 | -701.0 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 8.88 | 175.34 | -6.51 | 67.13 | 0.1221 | -663.0 | -622.2 | |
| 0.00 | 3.52 | 0.00 | 1.76 | 10.00 | 174.92 | -6.93 | 60.64 | 0.1370 | 762.0 | 619.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.64 | 174.78 | -7.07 | 57.18 | 0.1446 | 738.0 | 601.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.33 | 174.63 | -7.22 | 59.54 | 0.1440 | 771.0 | 601.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 10.03 | 174.54 | -7.30 | 61.71 | 0.1428 | 980.0 | 818.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 9.84 | 174.45 | -7.39 | 63.14 | 0.1428 | 900.0 | 702.0 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.69 | 174.14 | -7.70 | 65.01 | 0.1464 | 815.0 | 641.3 | |
| 6.23 | 11.38 | 3.12 | 5.70 | 10.11 | 173.92 | -7.93 | 63.07 | 0.1530 | 1193.6 | 845.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.89 | 173.66 | -8.18 | 71.23 | 0.1492 | 739.0 | 536.7 | |
| 0.00 | 3.52 | 0.00 | 1.77 | 9.04 | 173.41 | -8.43 | 70.80 | 0.1541 | 970.0 | 843.2 | |
| 1.54 | 5.78 | 0.77 | 2.90 | 8.12 | 172.94 | -8.91 | 77.30 | 0.1579 | 1181.0 | 922.4 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 11.31 | 172.79 | -9.06 | 59.69 | 0.1796 | -872.0 | -637.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.40 | 172.69 | -9.15 | 64.59 | 0.1740 | 781.0 | 461.0 | |
| 0.00 | 2.44 | 0.00 | 1.23 | 11.46 | 172.60 | -9.25 | 59.47 | 0.1837 | -1052.0 | -854.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.54 | 172.68 | -9.17 | 75.08 | 0.1638 | 1040.0 | 793.9 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 8.14 | 172.65 | -9.19 | 77.49 | 0.1627 | 939.0 | 690.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.82 | 172.61 | -9.23 | 67.88 | 0.1714 | 898.0 | 775.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 10.09 | 172.54 | -9.30 | 66.55 | 0.1742 | 960.0 | 786.1 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 11.46 | 172.35 | -9.50 | 60.13 | 0.1874 | -152.0 | -214.0 | |
| 0.00 | 3.07 | 0.00 | 1.55 | 10.12 | 172.36 | -9.49 | 66.80 | 0.1774 | 806.0 | 763.5 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 7.74 | 172.32 | -9.52 | 80.24 | 0.1671 | 880.0 | 755.5 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.36 | 172.19 | -9.65 | 65.90 | 0.1815 | 1002.0 | 758.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 7.83 | 172.13 | -9.71 | 79.89 | 0.1705 | 832.0 | 676.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 10.51 | 171.97 | -9.88 | 65.61 | 0.1860 | 734.0 | 560.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.96 | 171.92 | -9.92 | 68.48 | 0.1833 | 957.0 | 768.9 | |
| 7.86 | 42.45 | 3.96 | 21.39 | 9.62 | 171.87 | -9.98 | 70.32 | 0.1822 | 1218.0 | 777.3 | |
| 1.35 | -58.00 | 0.68 | -58.00 | 9.16 | 171.79 | -10.06 | 72.87 | 0.1812 | 987.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.72 | 171.71 | -10.14 | 60.46 | 0.1990 | 790.0 | 697.1 | |
| 4.97 | -58.00 | 2.50 | -58.00 | 9.47 | 171.75 | -10.10 | 71.33 | 0.1834 | 1313.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 8.10 | 171.72 | -10.12 | 78.76 | 0.1782 | 1036.0 | 744.3 | |
| 0.54 | 2.26 | 0.27 | 1.14 | 10.74 | 171.61 | -10.23 | 65.18 | 0.1931 | 905.7 | 676.8 | |
| 3.52 | -58.00 | 1.78 | -58.00 | 9.71 | 171.58 | -10.26 | 70.35 | 0.1873 | 1059.8 | 999999 | |
| 7.95 | -58.00 | 4.01 | -58.00 | 9.34 | 171.47 | -10.38 | 72.41 | 0.1873 | 1100.1 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 7.79 | 171.51 | -10.33 | 80.65 | 0.1810 | 640.0 | 666.5 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 10.01 | 171.36 | -10.49 | 69.23 | 0.1926 | 836.0 | 744.8 | |
| 0.00 | 2.44 | 0.00 | 1.23 | 9.73 | 171.18 | -10.67 | 70.89 | 0.1940 | 727.0 | 584.8 | |
| 0.99 | 12.83 | 0.50 | 6.48 | 9.30 | 171.13 | -10.72 | 73.09 | 0.1927 | 1119.2 | 745.5 | |
| 0.99 | 14.63 | 0.50 | 7.40 | 10.37 | 171.09 | -10.75 | 67.94 | 0.1989 | 1002.5 | 697.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 10.70 | 171.05 | -10.80 | 66.46 | 0.2017 | 788.0 | 653.9 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 8.75 | 170.77 | -11.08 | 76.31 | 0.1964 | 932.0 | 824.4 | |
| 1.63 | 3.70 | 0.82 | 1.87 | 9.05 | 170.70 | -11.15 | 74.89 | 0.1987 | 940.6 | 694.6 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 10.07 | 168.42 | -13.43 | 72.94 | 0.2402 | 962.0 | 699.5 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 10.15 | 168.19 | -13.65 | 72.83 | 0.2442 | 941.0 | 771.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 8.47 | 166.80 | -15.05 | 80.46 | 0.2615 | 824.0 | 672.3 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 10.71 | 165.99 | -15.85 | 72.93 | 0.2820 | 813.0 | 633.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 11.48 | 163.19 | -18.65 | 72.75 | 0.3297 | 821.0 | 607.5 | |
| 0.00 | 1.90 | 0.00 | 1.00 | 11.56 | 162.89 | -18.96 | 72.73 | 0.3347 | 851.0 | 670.7 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 11.55 | 162.53 | -19.32 | 73.02 | 0.3403 | 832.0 | 550.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
