SDO HMI 2014-08-07 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.07 | 442.57 | 72.58 | 370.21 | 12.00 | 127.80 | -54.05 | 79.58 | 0.8066 | -183.2 | -38.2 | |
|
previous
or next observation for the same group /

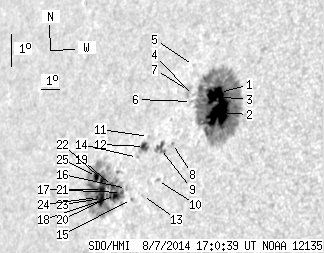

back to the solar disc SDO HMI 2014-08-07 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.68 | 258.96 | 6.13 | 206.29 | 13.65 | 129.89 | -51.96 | 77.49 | 0.7862 | -905.6 | -265.8 | |
| 36.76 | -1.00 | 29.22 | -1.00 | 13.04 | 130.02 | -51.83 | 78.26 | 0.7845 | -903.5 | 999999 | |
| 10.30 | -1.00 | 8.28 | -1.00 | 13.49 | 129.52 | -52.32 | 77.71 | 0.7899 | -606.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.89 | 13.45 | 128.60 | -53.24 | 77.82 | 0.7994 | -158.0 | -87.8 | |
| 0.00 | 0.99 | 0.00 | 0.82 | 14.35 | 128.30 | -53.54 | 76.71 | 0.8029 | -330.0 | -295.5 | |
| 0.00 | 0.99 | 0.00 | 0.82 | 13.26 | 128.56 | -53.29 | 78.06 | 0.7998 | -295.0 | -202.5 | |
| 0.00 | 5.60 | 0.00 | 4.63 | 13.57 | 128.30 | -53.55 | 77.67 | 0.8025 | 387.0 | 347.5 | |
| 0.00 | 0.99 | 0.00 | 0.83 | 11.91 | 127.96 | -53.88 | 79.77 | 0.8054 | 615.0 | 513.5 | |
| 0.00 | 8.40 | 0.00 | 7.08 | 11.70 | 127.38 | -54.47 | 80.03 | 0.8112 | 734.0 | 497.1 | |
| 0.00 | 1.72 | 0.00 | 1.44 | 10.73 | 127.49 | -54.36 | 81.24 | 0.8101 | -471.0 | -353.3 | |
| 0.00 | 1.26 | 0.00 | 1.08 | 12.01 | 126.64 | -55.21 | 79.67 | 0.8187 | 608.0 | 417.4 | |
| 3.97 | 8.22 | 3.42 | 7.08 | 11.69 | 126.51 | -55.33 | 80.06 | 0.8198 | 645.1 | 507.7 | |
| 0.00 | 0.81 | 0.00 | 0.69 | 10.21 | 126.82 | -55.03 | 81.88 | 0.8168 | 530.0 | 532.1 | |
| 0.00 | 1.17 | 0.00 | 1.02 | 11.33 | 126.24 | -55.61 | 80.51 | 0.8225 | 678.0 | 551.1 | |
| 0.00 | 0.54 | 0.00 | 0.47 | 10.03 | 126.26 | -55.59 | 82.08 | 0.8223 | 694.0 | 660.8 | |
| 0.00 | 1.54 | 0.00 | 1.34 | 10.34 | 125.90 | -55.94 | 81.70 | 0.8258 | 602.0 | 570.8 | |
| 1.08 | 150.30 | 0.95 | 135.73 | 10.20 | 125.66 | -56.18 | 81.88 | 0.8281 | 836.4 | 208.6 | |
| 2.80 | -17.00 | 2.48 | -17.00 | 10.08 | 125.36 | -56.49 | 82.02 | 0.8311 | 888.6 | 999999 | |
| 2.44 | -17.00 | 2.17 | -17.00 | 10.33 | 125.12 | -56.73 | 81.70 | 0.8333 | 842.4 | 999999 | |
| 2.35 | -17.00 | 2.09 | -17.00 | 10.02 | 125.09 | -56.75 | 82.08 | 0.8336 | 817.7 | 999999 | |
| 4.06 | -17.00 | 3.67 | -17.00 | 10.19 | 124.59 | -57.26 | 81.86 | 0.8384 | 625.8 | 999999 | |
| 2.89 | -17.00 | 2.62 | -17.00 | 10.46 | 124.51 | -57.33 | 81.54 | 0.8390 | 598.9 | 999999 | |
| 7.32 | -17.00 | 6.61 | -17.00 | 9.92 | 124.61 | -57.24 | 82.19 | 0.8382 | 609.5 | 999999 | |
| 1.72 | -17.00 | 1.56 | -17.00 | 9.93 | 124.37 | -57.47 | 82.18 | 0.8404 | 219.9 | 999999 | |
| 3.70 | -17.00 | 3.38 | -17.00 | 10.55 | 124.14 | -57.71 | 81.43 | 0.8425 | 268.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
