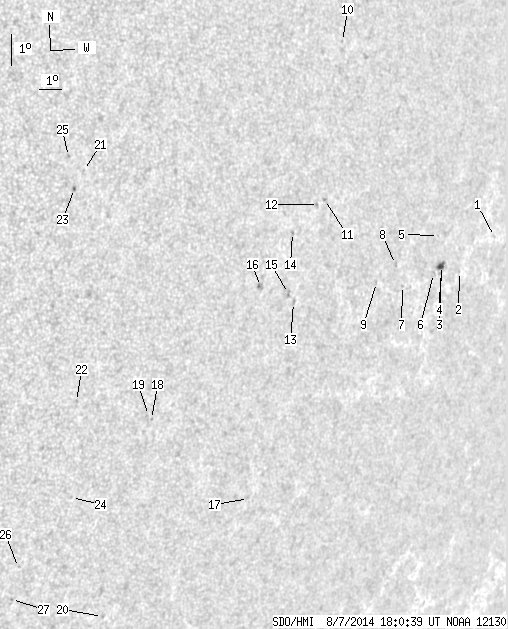

SDO HMI 2014-08-07 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.25 | 35.36 | 2.82 | 27.15 | -8.26 | 228.65 | 47.36 | 253.26 | 0.7602 | 46.7 | 148.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.84 | -7.06 | 237.56 | 56.27 | 257.58 | 0.8472 | 285.0 | 260.5 | |
| 0.00 | 0.63 | 0.00 | 0.56 | -7.99 | 235.84 | 54.55 | 256.05 | 0.8333 | 475.0 | 477.1 | |
| 3.25 | 5.06 | 2.82 | 4.39 | -7.71 | 234.84 | 53.55 | 256.11 | 0.8232 | 648.4 | 500.9 | |
| 0.00 | 1.26 | 0.00 | 1.10 | -7.96 | 234.83 | 53.54 | 255.81 | 0.8238 | 490.0 | 386.9 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -6.75 | 234.52 | 53.23 | 257.17 | 0.8180 | 395.0 | 311.0 | |
| 0.00 | 1.81 | 0.00 | 1.56 | -7.93 | 234.46 | 53.17 | 255.75 | 0.8201 | 563.0 | 530.0 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -8.17 | 232.94 | 51.65 | 255.02 | 0.8058 | 494.0 | 484.8 | |
| 0.00 | 1.90 | 0.00 | 1.56 | -7.47 | 232.47 | 51.18 | 255.73 | 0.7993 | -328.0 | -253.0 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -7.96 | 231.63 | 50.34 | 254.87 | 0.7920 | 473.0 | 498.8 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -0.33 | 229.39 | 48.10 | 264.02 | 0.7507 | -555.0 | -468.6 | |
| 0.00 | 1.54 | 0.00 | 1.15 | -5.14 | 228.82 | 47.53 | 257.57 | 0.7546 | 766.0 | 616.3 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -5.28 | 228.56 | 47.27 | 257.32 | 0.7520 | 581.0 | 532.8 | |
| 0.00 | 1.99 | 0.00 | 1.49 | -8.26 | 227.81 | 46.52 | 253.22 | 0.7524 | 484.0 | 413.2 | |
| 0.00 | 1.17 | 0.00 | 0.86 | -6.06 | 227.48 | 46.19 | 255.96 | 0.7420 | 354.0 | 385.8 | |
| 0.00 | 2.44 | 0.00 | 1.82 | -7.96 | 227.55 | 46.25 | 253.51 | 0.7484 | 666.0 | 528.3 | |
| 0.00 | 3.97 | 0.00 | 2.88 | -7.64 | 226.27 | 44.98 | 253.46 | 0.7331 | 686.0 | 510.4 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -14.42 | 227.08 | 45.79 | 245.20 | 0.7669 | -643.0 | -529.9 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -11.52 | 222.26 | 40.97 | 246.56 | 0.7026 | -499.0 | -437.9 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -11.38 | 222.11 | 40.82 | 246.67 | 0.7003 | -629.0 | -626.6 | |
| 0.00 | 1.26 | 0.00 | 0.91 | -17.85 | 221.65 | 40.36 | 238.13 | 0.7281 | -389.0 | -414.1 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -3.49 | 218.70 | 37.41 | 256.44 | 0.6260 | -575.0 | -594.3 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -10.72 | 219.12 | 37.83 | 245.95 | 0.6621 | -527.0 | -469.3 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -4.02 | 218.38 | 37.09 | 255.48 | 0.6236 | -756.0 | -565.4 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -13.81 | 219.44 | 38.15 | 241.93 | 0.6822 | -471.0 | -332.5 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -3.01 | 218.10 | 36.81 | 256.94 | 0.6165 | -721.0 | -666.5 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -15.96 | 217.78 | 36.49 | 238.02 | 0.6763 | -482.0 | -407.0 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -17.00 | 217.73 | 36.44 | 236.63 | 0.6824 | -621.0 | -553.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
