SDO HMI 2014-08-07 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.56 | 236.28 | 18.88 | 118.75 | 9.64 | 173.21 | -8.09 | 71.97 | 0.1554 | 193.6 | 186.2 | |
|
previous
or next observation for the same group /

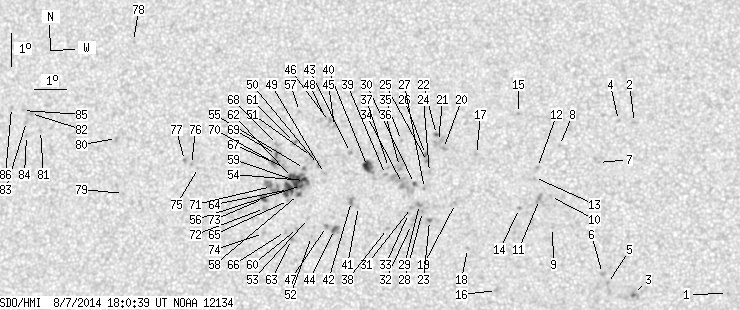

back to the solar disc SDO HMI 2014-08-07 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.45 | 6.22 | 185.01 | 3.72 | 270.30 | 0.0648 | -820.0 | -672.9 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 11.44 | 182.19 | 0.90 | 350.43 | 0.0928 | -1037.0 | -864.4 | |
| 0.54 | 3.43 | 0.27 | 1.70 | 6.21 | 182.14 | 0.85 | 269.49 | 0.0148 | -1145.8 | -845.5 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 11.50 | 181.69 | 0.40 | 355.74 | 0.0928 | -740.0 | -590.5 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.54 | 181.34 | 0.05 | 350.76 | 0.0058 | -1080.0 | -860.4 | |
| 0.00 | 2.53 | 0.00 | 1.25 | 6.85 | 181.19 | -0.10 | 8.84 | 0.0112 | -1129.0 | -855.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 10.22 | 181.07 | -0.22 | 3.08 | 0.0703 | -787.0 | -625.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.74 | 179.87 | -1.42 | 17.20 | 0.0830 | -901.0 | -648.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.24 | 179.66 | -1.63 | 38.50 | 0.0455 | -794.0 | -658.5 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 9.19 | 179.59 | -1.70 | 29.40 | 0.0598 | -882.0 | -709.1 | |
| 0.00 | 5.33 | 0.00 | 2.64 | 9.09 | 179.26 | -2.04 | 34.88 | 0.0616 | -988.0 | -806.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.07 | 179.19 | -2.10 | 28.23 | 0.0767 | -978.0 | -722.8 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 9.76 | 179.10 | -2.19 | 31.32 | 0.0729 | -823.0 | -639.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.82 | 178.64 | -2.65 | 45.09 | 0.0648 | -1163.0 | -912.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.71 | 178.59 | -2.70 | 25.69 | 0.1069 | -1044.0 | -826.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 6.32 | 177.95 | -3.34 | 87.94 | 0.0582 | -984.0 | -778.4 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 10.46 | 177.30 | -3.99 | 42.69 | 0.1014 | -864.0 | -601.2 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.59 | 177.05 | -4.24 | 71.61 | 0.0776 | -928.0 | -737.2 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 8.96 | 176.67 | -4.62 | 58.79 | 0.0935 | -940.0 | -760.4 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 10.63 | 176.27 | -5.02 | 47.99 | 0.1162 | -1084.0 | -795.3 | |
| 0.00 | 5.78 | 0.00 | 2.88 | 10.84 | 176.12 | -5.18 | 47.52 | 0.1207 | -618.0 | -628.4 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 11.06 | 176.05 | -5.24 | 46.58 | 0.1240 | -874.0 | -797.0 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 8.44 | 175.87 | -5.42 | 67.21 | 0.1018 | -1169.0 | -919.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.90 | 175.85 | -5.44 | 55.29 | 0.1141 | -872.0 | -614.2 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 10.23 | 175.78 | -5.51 | 53.25 | 0.1184 | -910.0 | -785.7 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 10.44 | 175.72 | -5.57 | 52.14 | 0.1215 | -930.0 | -731.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 9.41 | 175.70 | -5.59 | 59.66 | 0.1118 | -861.0 | -798.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.71 | 175.65 | -5.64 | 65.62 | 0.1071 | -1108.0 | -912.5 | |
| 0.00 | 2.44 | 0.00 | 1.22 | 8.92 | 175.56 | -5.73 | 64.19 | 0.1101 | -815.0 | -786.7 | |
| 0.54 | 1.99 | 0.27 | 0.99 | 9.56 | 175.39 | -5.90 | 59.85 | 0.1177 | -931.8 | -751.7 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 8.83 | 175.31 | -5.98 | 65.86 | 0.1133 | -815.0 | -646.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.31 | 175.32 | -5.97 | 70.17 | 0.1100 | -755.0 | -665.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.64 | 175.22 | -6.07 | 67.66 | 0.1135 | -826.0 | -586.8 | |
| 0.00 | 18.15 | 0.00 | 9.06 | 9.55 | 175.02 | -6.27 | 61.34 | 0.1233 | -30.0 | -106.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.86 | 174.97 | -6.33 | 52.95 | 0.1362 | 778.0 | 502.9 | |
| 0.00 | 5.96 | 0.00 | 2.98 | 10.07 | 174.92 | -6.37 | 58.15 | 0.1292 | 674.0 | 610.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.04 | 174.58 | -6.71 | 59.66 | 0.1340 | 912.0 | 713.5 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 8.18 | 174.58 | -6.71 | 73.16 | 0.1214 | -825.0 | -571.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 9.82 | 174.49 | -6.80 | 61.39 | 0.1336 | 891.0 | 736.0 | |
| 6.14 | 10.39 | 3.07 | 5.20 | 10.06 | 173.92 | -7.37 | 61.72 | 0.1440 | 1183.0 | 922.1 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 8.84 | 173.67 | -7.62 | 70.38 | 0.1398 | 565.0 | 340.5 | |
| 0.00 | 4.15 | 0.00 | 2.08 | 8.99 | 173.45 | -7.84 | 69.88 | 0.1442 | 1083.0 | 855.3 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 10.48 | 173.38 | -7.91 | 60.88 | 0.1555 | 1055.0 | 724.3 | |
| 1.45 | 4.97 | 0.72 | 2.49 | 8.13 | 172.94 | -8.35 | 76.50 | 0.1486 | 1285.6 | 924.4 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 11.26 | 172.86 | -8.43 | 58.19 | 0.1699 | -583.0 | -503.3 | |
| 0.00 | 3.34 | 0.00 | 1.68 | 11.41 | 172.70 | -8.59 | 57.91 | 0.1736 | -1103.0 | -756.2 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 8.22 | 172.69 | -8.60 | 76.29 | 0.1531 | 1020.0 | 798.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.53 | 172.57 | -8.72 | 57.69 | 0.1765 | -814.0 | -585.9 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 9.83 | 172.59 | -8.70 | 66.69 | 0.1631 | 913.0 | 752.3 | |
| 0.00 | 2.44 | 0.00 | 1.23 | 10.10 | 172.40 | -8.90 | 65.62 | 0.1679 | 911.0 | 814.1 | |
| 0.00 | 4.06 | 0.00 | 2.04 | 10.34 | 172.17 | -9.12 | 64.84 | 0.1731 | 967.0 | 688.3 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 7.91 | 172.23 | -9.06 | 78.82 | 0.1597 | 962.0 | 780.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 8.45 | 172.12 | -9.17 | 75.63 | 0.1634 | 807.0 | 622.5 | |
| 3.16 | 41.46 | 1.59 | 20.86 | 9.60 | 171.97 | -9.32 | 69.24 | 0.1715 | 1161.4 | 816.2 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 9.97 | 171.96 | -9.33 | 67.27 | 0.1739 | 1053.0 | 843.7 | |
| 1.35 | -54.00 | 0.68 | -54.00 | 9.45 | 171.88 | -9.41 | 70.26 | 0.1721 | 1258.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 11.70 | 171.75 | -9.54 | 59.10 | 0.1900 | 938.0 | 716.2 | |
| 1.08 | -54.00 | 0.54 | -54.00 | 9.18 | 171.80 | -9.50 | 71.94 | 0.1721 | 1068.4 | 999999 | |
| 7.32 | -54.00 | 3.68 | -54.00 | 9.57 | 171.75 | -9.54 | 69.83 | 0.1748 | 1310.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.14 | 171.79 | -9.50 | 77.88 | 0.1679 | 818.0 | 759.1 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 10.76 | 171.63 | -9.67 | 63.93 | 0.1845 | 956.0 | 752.4 | |
| 3.88 | -54.00 | 1.96 | -54.00 | 9.69 | 171.59 | -9.70 | 69.48 | 0.1781 | 1083.2 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 7.80 | 171.61 | -9.68 | 80.04 | 0.1699 | 952.0 | 803.2 | |
| 7.59 | -54.00 | 3.82 | -54.00 | 9.32 | 171.48 | -9.81 | 71.65 | 0.1780 | 1140.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 8.99 | 171.49 | -9.80 | 73.46 | 0.1762 | 582.0 | 509.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 8.04 | 171.42 | -9.87 | 78.84 | 0.1738 | 787.0 | 690.4 | |
| 0.00 | 3.25 | 0.00 | 1.64 | 9.99 | 171.34 | -9.96 | 68.39 | 0.1840 | 978.0 | 826.0 | |
| 0.00 | 2.53 | 0.00 | 1.28 | 10.69 | 171.09 | -10.20 | 65.40 | 0.1922 | 782.0 | 610.8 | |
| 1.08 | 11.74 | 0.55 | 5.92 | 10.38 | 171.07 | -10.22 | 66.93 | 0.1905 | 939.2 | 749.9 | |
| 1.26 | -69.00 | 0.64 | -69.00 | 10.14 | 170.99 | -10.31 | 68.29 | 0.1904 | 827.8 | 999999 | |
| 0.00 | 12.01 | 0.00 | 6.06 | 9.40 | 170.95 | -10.35 | 72.06 | 0.1871 | 985.0 | 804.7 | |
| 0.00 | 2.71 | 0.00 | 1.37 | 8.73 | 170.75 | -10.55 | 75.82 | 0.1874 | 767.0 | 718.0 | |
| 2.17 | 4.43 | 1.09 | 2.23 | 9.04 | 170.71 | -10.59 | 74.29 | 0.1893 | 954.5 | 811.5 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.97 | 170.73 | -10.56 | 79.86 | 0.1852 | 840.0 | 687.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 9.94 | 168.63 | -12.66 | 72.64 | 0.2272 | 471.0 | 433.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 10.02 | 168.41 | -12.89 | 72.53 | 0.2312 | 957.0 | 830.0 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 10.14 | 168.18 | -13.11 | 72.31 | 0.2354 | 938.0 | 784.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 13.73 | 166.36 | -14.93 | 61.77 | 0.2853 | 823.0 | 638.7 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 9.09 | 166.28 | -15.01 | 78.13 | 0.2624 | 611.0 | 505.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 10.76 | 165.98 | -15.31 | 72.27 | 0.2735 | 874.0 | 653.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 10.93 | 163.52 | -17.77 | 73.77 | 0.3135 | 842.0 | 663.2 | |
| 0.00 | 2.89 | 0.00 | 1.51 | 11.44 | 163.16 | -18.13 | 72.48 | 0.3212 | 771.0 | 624.7 | |
| 0.00 | 2.80 | 0.00 | 1.46 | 11.19 | 163.05 | -18.24 | 73.32 | 0.3220 | 859.0 | 661.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.76 | 163.07 | -18.22 | 74.60 | 0.3199 | 750.0 | 590.3 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 11.52 | 162.90 | -18.40 | 72.44 | 0.3257 | 751.0 | 621.6 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 11.60 | 162.53 | -18.76 | 72.48 | 0.3318 | 835.0 | 676.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
