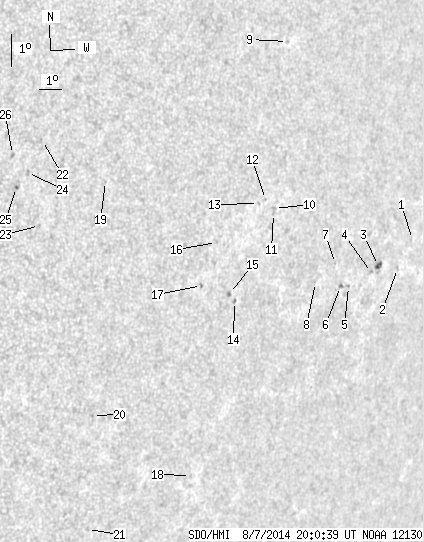

SDO HMI 2014-08-07 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 35.73 | 2.42 | 27.87 | -7.09 | 228.73 | 48.55 | 255.30 | 0.7676 | 142.6 | 147.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.76 | -7.09 | 236.58 | 56.39 | 257.56 | 0.8484 | 368.0 | 302.6 | |
| 0.00 | 1.35 | 0.00 | 1.24 | -7.94 | 235.91 | 55.73 | 256.42 | 0.8441 | 490.0 | 368.7 | |
| 2.71 | 5.78 | 2.42 | 5.16 | -7.74 | 234.84 | 54.66 | 256.36 | 0.8339 | 654.7 | 469.0 | |
| 0.00 | 1.26 | 0.00 | 1.12 | -7.93 | 234.51 | 54.32 | 256.05 | 0.8311 | 663.0 | 611.0 | |
| 0.00 | 1.08 | 0.00 | 0.94 | -8.27 | 233.37 | 53.19 | 255.34 | 0.8211 | 516.0 | 468.2 | |
| 0.00 | 1.81 | 0.00 | 1.54 | -8.23 | 232.95 | 52.77 | 255.27 | 0.8170 | 552.0 | 494.9 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -7.48 | 232.56 | 52.38 | 256.06 | 0.8114 | -252.0 | -216.3 | |
| 0.00 | 0.63 | 0.00 | 0.52 | -7.99 | 231.65 | 51.47 | 255.17 | 0.8035 | 481.0 | 396.6 | |
| 0.00 | 1.35 | 0.00 | 1.04 | -0.37 | 229.63 | 49.45 | 264.21 | 0.7659 | -173.0 | -224.6 | |
| 0.00 | 1.81 | 0.00 | 1.40 | -5.49 | 229.32 | 49.14 | 257.59 | 0.7731 | 454.0 | 271.5 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -5.64 | 229.29 | 49.11 | 257.39 | 0.7731 | 395.0 | 263.0 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -5.17 | 228.87 | 48.68 | 257.86 | 0.7674 | 640.0 | 576.9 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -5.27 | 228.55 | 48.37 | 257.65 | 0.7642 | 594.0 | 482.0 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -8.26 | 227.84 | 47.66 | 253.62 | 0.7647 | 515.0 | 379.0 | |
| 0.00 | 2.17 | 0.00 | 1.65 | -7.98 | 227.57 | 47.39 | 253.87 | 0.7609 | 727.0 | 536.3 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -6.33 | 226.76 | 46.58 | 255.72 | 0.7472 | 516.0 | 461.2 | |
| 0.00 | 1.35 | 0.00 | 1.00 | -7.63 | 226.26 | 46.07 | 253.87 | 0.7454 | 752.0 | 665.1 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -13.69 | 226.96 | 46.78 | 246.53 | 0.7741 | -438.0 | -499.7 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -4.06 | 221.82 | 41.64 | 257.15 | 0.6821 | -491.0 | -413.3 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -11.40 | 222.17 | 41.99 | 247.22 | 0.7136 | -676.0 | -572.7 | |
| 0.00 | 2.17 | 0.00 | 1.58 | -15.10 | 222.75 | 42.57 | 242.78 | 0.7368 | -193.0 | -198.4 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -2.61 | 219.23 | 39.04 | 258.38 | 0.6447 | -544.0 | -466.7 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -5.23 | 219.25 | 39.07 | 254.46 | 0.6537 | -555.0 | -411.0 | |
| 0.00 | 2.26 | 0.00 | 1.45 | -3.55 | 218.68 | 38.50 | 256.75 | 0.6405 | -494.0 | -459.4 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -3.99 | 218.27 | 38.09 | 255.93 | 0.6367 | -685.0 | -631.8 | |
| 0.00 | 2.08 | 0.00 | 1.32 | -2.96 | 218.07 | 37.89 | 257.43 | 0.6306 | -835.0 | -646.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
