SDO HMI 2014-08-07 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 14.43 | 0.21 | 8.49 | -19.22 | 160.03 | -20.15 | 142.77 | 0.5359 | 617.9 | 493.7 | |
|
previous
or next observation for the same group /

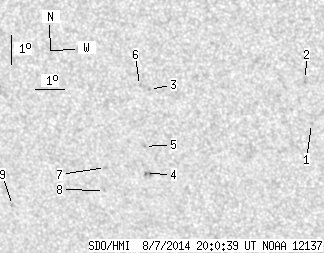

back to the solar disc SDO HMI 2014-08-07 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.61 | -18.36 | 165.08 | -15.10 | 149.06 | 0.4829 | 685.0 | 555.5 | |
| 0.00 | 2.89 | 0.00 | 1.62 | -16.90 | 165.01 | -15.17 | 147.24 | 0.4647 | 781.0 | 588.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -17.41 | 159.74 | -20.44 | 139.81 | 0.5184 | 920.0 | 732.2 | |
| 0.36 | 3.43 | 0.21 | 2.04 | -20.25 | 159.23 | -20.95 | 142.62 | 0.5547 | 823.2 | 694.6 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -19.33 | 159.33 | -20.86 | 141.66 | 0.5436 | 846.0 | 585.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -17.29 | 159.42 | -20.77 | 139.21 | 0.5203 | 673.0 | 555.0 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -20.10 | 157.86 | -22.32 | 140.71 | 0.5654 | 765.0 | 498.8 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -20.89 | 157.70 | -22.48 | 141.44 | 0.5752 | 593.0 | 497.5 | |
| 0.00 | 1.35 | 0.00 | 0.85 | -21.56 | 154.29 | -25.89 | 138.31 | 0.6129 | -568.0 | -422.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
