SDO HMI 2014-08-07 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.18 | 197.70 | 20.60 | 98.68 | 9.20 | 173.87 | -5.21 | 95.69 | 0.1186 | 281.0 | 125.7 | |
|
previous
or next observation for the same group /

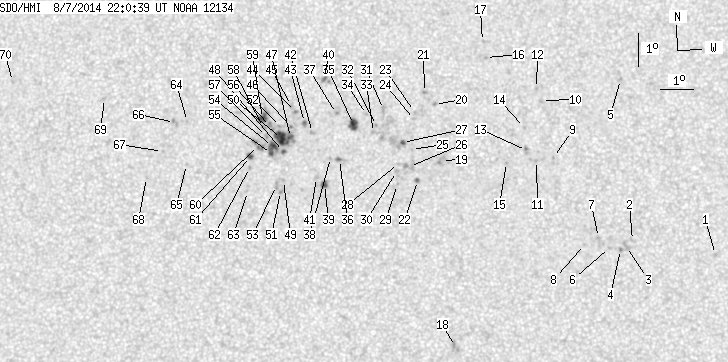

back to the solar disc SDO HMI 2014-08-07 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.85 | 6.07 | 185.07 | 5.99 | 268.73 | 0.1043 | -821.0 | -560.8 | |
| 0.00 | 2.35 | 0.00 | 1.17 | 6.52 | 182.53 | 3.45 | 274.94 | 0.0603 | -825.0 | -582.3 | |
| 0.00 | 5.24 | 0.00 | 2.60 | 6.34 | 182.34 | 3.26 | 272.02 | 0.0569 | -948.0 | -733.4 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 6.25 | 182.16 | 3.08 | 270.44 | 0.0537 | -1123.0 | -946.9 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 11.42 | 182.21 | 3.13 | 329.41 | 0.1057 | -1015.0 | -709.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.31 | 181.82 | 2.74 | 271.77 | 0.0478 | -787.0 | -693.2 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.62 | 181.49 | 2.41 | 279.23 | 0.0425 | -993.0 | -840.4 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 6.41 | 181.06 | 1.98 | 275.13 | 0.0346 | -889.0 | -610.9 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.06 | 180.12 | 1.04 | 339.96 | 0.0526 | -817.0 | -660.5 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 10.79 | 179.75 | 0.68 | 351.67 | 0.0807 | -707.0 | -537.5 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.97 | 179.59 | 0.52 | 349.38 | 0.0487 | -965.0 | -866.2 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 11.16 | 179.60 | 0.52 | 354.02 | 0.0867 | -896.0 | -668.2 | |
| 0.00 | 3.43 | 0.00 | 1.70 | 9.27 | 179.29 | 0.21 | 356.06 | 0.0533 | -871.0 | -809.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.97 | 179.23 | 0.15 | 357.72 | 0.0655 | -840.0 | -615.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.91 | 178.67 | -0.40 | 8.50 | 0.0473 | -1056.0 | -783.9 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 12.11 | 178.02 | -1.06 | 10.00 | 0.1044 | -803.0 | -636.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 12.60 | 177.92 | -1.15 | 10.04 | 0.1130 | -756.0 | -689.6 | |
| 0.00 | 5.51 | 0.00 | 2.73 | 3.31 | 177.12 | -1.96 | 146.17 | 0.0616 | -732.0 | -754.6 | |
| 0.00 | 4.24 | 0.00 | 2.11 | 8.97 | 176.67 | -2.40 | 40.97 | 0.0635 | -550.0 | -800.5 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 10.67 | 176.45 | -2.63 | 30.23 | 0.0900 | -1034.0 | -886.0 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.03 | 176.13 | -2.94 | 31.03 | 0.0982 | -1015.0 | -844.7 | |
| 0.54 | 1.99 | 0.27 | 0.99 | 8.36 | 175.94 | -3.14 | 55.58 | 0.0660 | -1237.0 | -973.3 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 10.45 | 175.83 | -3.25 | 37.08 | 0.0928 | -594.0 | -551.3 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 10.21 | 175.83 | -3.25 | 38.73 | 0.0895 | -641.0 | -530.0 | |
| 0.00 | 0.63 | 0.00 | 0.31 | 9.30 | 175.75 | -3.33 | 46.95 | 0.0788 | -782.0 | -530.1 | |
| 0.00 | 9.12 | 0.00 | 4.53 | 8.78 | 175.69 | -3.39 | 52.66 | 0.0738 | -528.0 | -699.1 | |
| 1.08 | 4.88 | 0.54 | 2.42 | 9.51 | 175.47 | -3.61 | 47.31 | 0.0849 | -996.2 | -357.2 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 8.87 | 175.35 | -3.73 | 54.30 | 0.0795 | -747.0 | -466.0 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.23 | 175.32 | -3.75 | 61.61 | 0.0740 | -871.0 | -736.6 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 8.63 | 175.29 | -3.79 | 57.31 | 0.0780 | -779.0 | -653.8 | |
| 0.00 | 2.98 | 0.00 | 1.48 | 10.51 | 174.87 | -4.21 | 43.97 | 0.1044 | 866.0 | 698.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.02 | 174.66 | -4.42 | 48.85 | 0.1012 | 928.0 | 763.7 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 9.81 | 174.57 | -4.51 | 51.06 | 0.1001 | 646.0 | 426.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 10.35 | 174.34 | -4.73 | 48.37 | 0.1091 | 965.0 | 798.0 | |
| 6.41 | 8.76 | 3.20 | 4.37 | 10.05 | 173.94 | -5.13 | 52.80 | 0.1111 | 1151.9 | 824.7 | |
| 0.00 | 3.43 | 0.00 | 1.71 | 8.98 | 173.53 | -5.55 | 63.17 | 0.1075 | 1045.0 | 813.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.38 | 173.41 | -5.66 | 53.17 | 0.1218 | 1014.0 | 840.3 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 9.04 | 173.25 | -5.83 | 63.79 | 0.1123 | 793.0 | 527.1 | |
| 2.71 | 4.43 | 1.35 | 2.21 | 8.21 | 173.07 | -6.00 | 71.28 | 0.1098 | 1183.7 | 915.4 | |
| 0.45 | 4.88 | 0.23 | 2.44 | 11.44 | 173.02 | -6.06 | 48.57 | 0.1386 | -985.4 | -700.2 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.42 | 172.82 | -6.25 | 70.20 | 0.1150 | 1003.0 | 707.5 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 9.79 | 172.68 | -6.40 | 60.30 | 0.1270 | 804.0 | 774.9 | |
| 0.63 | 3.07 | 0.32 | 1.53 | 10.09 | 172.42 | -6.65 | 59.21 | 0.1334 | 964.0 | 848.9 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.42 | 172.14 | -6.94 | 58.16 | 0.1405 | 865.0 | 737.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.61 | 172.01 | -7.07 | 57.52 | 0.1440 | 725.0 | 554.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.97 | 172.02 | -7.05 | 61.44 | 0.1383 | 1006.0 | 838.1 | |
| 2.26 | 36.49 | 1.13 | 18.25 | 9.63 | 172.00 | -7.08 | 63.71 | 0.1361 | 1108.2 | 785.6 | |
| 0.90 | 2.17 | 0.45 | 1.08 | 9.20 | 171.79 | -7.29 | 67.22 | 0.1364 | 1085.8 | 871.9 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.32 | 171.81 | -7.27 | 73.45 | 0.1312 | 954.0 | 733.6 | |
| 12.73 | -47.00 | 6.37 | -47.00 | 9.60 | 171.72 | -7.36 | 64.77 | 0.1402 | 1255.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.98 | 171.72 | -7.36 | 76.10 | 0.1312 | 889.0 | 814.3 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 9.96 | 171.68 | -7.40 | 62.55 | 0.1435 | 864.0 | 720.4 | |
| 0.00 | 3.34 | 0.00 | 1.67 | 8.17 | 171.59 | -7.48 | 74.99 | 0.1341 | 857.0 | 735.0 | |
| 5.15 | -47.00 | 2.58 | -47.00 | 9.35 | 171.44 | -7.63 | 67.14 | 0.1429 | 1196.1 | 999999 | |
| 1.63 | -47.00 | 0.81 | -47.00 | 9.14 | 171.42 | -7.66 | 68.61 | 0.1420 | 938.2 | 999999 | |
| 0.00 | 3.70 | 0.00 | 1.85 | 9.96 | 171.37 | -7.71 | 63.50 | 0.1483 | 1135.0 | 909.0 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 9.65 | 171.25 | -7.82 | 65.72 | 0.1479 | 886.0 | 731.4 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 9.92 | 171.15 | -7.92 | 64.31 | 0.1514 | 773.0 | 657.9 | |
| 4.61 | 10.66 | 2.31 | 5.34 | 10.20 | 171.11 | -7.96 | 62.79 | 0.1540 | 1033.7 | 724.9 | |
| 0.00 | 9.03 | 0.00 | 4.53 | 9.37 | 171.01 | -8.07 | 68.05 | 0.1500 | 861.0 | 833.5 | |
| 2.08 | 3.34 | 1.04 | 1.67 | 9.04 | 170.77 | -8.31 | 70.71 | 0.1519 | 981.8 | 789.9 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.70 | 170.74 | -8.33 | 72.88 | 0.1506 | 922.0 | 668.8 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 7.97 | 170.70 | -8.38 | 77.72 | 0.1484 | 722.0 | 662.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.07 | 168.77 | -10.30 | 68.73 | 0.1898 | 845.0 | 668.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.76 | 168.78 | -10.30 | 75.48 | 0.1833 | 885.0 | 596.8 | |
| 0.00 | 3.79 | 0.00 | 1.92 | 10.03 | 168.37 | -10.71 | 69.60 | 0.1961 | 793.0 | 727.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.14 | 168.02 | -11.06 | 74.46 | 0.1975 | 847.0 | 684.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 8.34 | 167.54 | -11.54 | 78.88 | 0.2026 | 864.0 | 705.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 10.72 | 166.13 | -12.94 | 69.84 | 0.2355 | 345.0 | 351.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 11.16 | 163.17 | -15.91 | 71.51 | 0.2848 | 901.0 | 685.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
