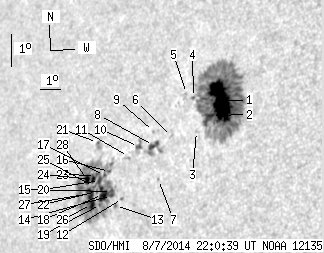

SDO HMI 2014-08-07 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.03 | 490.05 | 80.62 | 385.27 | 12.08 | 127.86 | -51.21 | 79.40 | 0.7771 | -123.2 | -83.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.29 | 288.02 | 39.25 | 216.32 | 13.38 | 130.11 | -48.97 | 77.65 | 0.7535 | -1034.1 | -323.7 | |
| 2.62 | -1.00 | 1.98 | -1.00 | 12.92 | 129.80 | -49.28 | 78.28 | 0.7567 | -219.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.83 | 12.38 | 129.22 | -49.86 | 79.03 | 0.7628 | 186.0 | 93.4 | |
| 0.45 | -1.00 | 0.35 | -1.00 | 13.40 | 128.79 | -50.28 | 77.72 | 0.7680 | -254.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.77 | 13.49 | 128.42 | -50.65 | 77.63 | 0.7721 | 297.0 | 273.5 | |
| 0.00 | 2.08 | 0.00 | 1.62 | 12.13 | 128.06 | -51.02 | 79.41 | 0.7754 | 397.0 | 380.1 | |
| 0.00 | 0.81 | 0.00 | 0.64 | 10.78 | 127.75 | -51.33 | 81.16 | 0.7784 | -349.0 | -384.3 | |
| 4.06 | 14.99 | 3.23 | 11.90 | 11.79 | 127.25 | -51.83 | 79.88 | 0.7840 | 723.2 | 484.2 | |
| 0.00 | 1.17 | 0.00 | 0.94 | 12.21 | 127.13 | -51.94 | 79.34 | 0.7853 | 585.0 | 482.2 | |
| 1.54 | 6.50 | 1.24 | 5.25 | 11.70 | 126.51 | -52.57 | 80.02 | 0.7918 | 745.4 | 452.0 | |
| 0.00 | 0.45 | 0.00 | 0.37 | 11.35 | 126.08 | -52.99 | 80.46 | 0.7961 | 683.0 | 691.2 | |
| 0.00 | 1.17 | 0.00 | 0.96 | 10.06 | 126.09 | -52.98 | 82.09 | 0.7959 | 696.0 | 635.7 | |
| 0.00 | 1.54 | 0.00 | 1.26 | 9.82 | 125.79 | -53.29 | 82.39 | 0.7991 | 711.0 | 581.9 | |
| 1.08 | 166.82 | 0.89 | 140.67 | 10.10 | 125.51 | -53.56 | 82.03 | 0.8020 | 764.9 | 207.6 | |
| 1.90 | -14.00 | 1.57 | -14.00 | 10.22 | 125.48 | -53.59 | 81.88 | 0.8023 | 809.6 | 999999 | |
| 0.81 | -14.00 | 0.68 | -14.00 | 10.82 | 125.23 | -53.85 | 81.14 | 0.8049 | 698.4 | 999999 | |
| 0.81 | -14.00 | 0.68 | -14.00 | 10.68 | 125.00 | -54.07 | 81.32 | 0.8072 | 834.6 | 999999 | |
| 9.66 | -14.00 | 8.06 | -14.00 | 10.09 | 125.04 | -54.03 | 82.04 | 0.8068 | 912.0 | 999999 | |
| 1.08 | -14.00 | 0.90 | -14.00 | 9.78 | 125.01 | -54.06 | 82.43 | 0.8071 | 704.4 | 999999 | |
| 2.62 | -14.00 | 2.20 | -14.00 | 10.50 | 124.78 | -54.30 | 81.53 | 0.8094 | 747.5 | 999999 | |
| 0.36 | 4.43 | 0.31 | 3.74 | 11.64 | 124.36 | -54.71 | 80.13 | 0.8137 | -229.0 | 58.3 | |
| 0.54 | -14.00 | 0.46 | -14.00 | 10.16 | 124.71 | -54.37 | 81.96 | 0.8102 | 828.8 | 999999 | |
| 1.90 | -14.00 | 1.60 | -14.00 | 10.63 | 124.53 | -54.54 | 81.37 | 0.8119 | 571.8 | 999999 | |
| 2.53 | -14.00 | 2.14 | -14.00 | 10.51 | 124.46 | -54.62 | 81.53 | 0.8127 | 581.1 | 999999 | |
| 0.54 | -14.00 | 0.46 | -14.00 | 10.29 | 124.51 | -54.56 | 81.79 | 0.8121 | 632.2 | 999999 | |
| 6.23 | -14.00 | 5.26 | -14.00 | 9.74 | 124.54 | -54.53 | 82.47 | 0.8119 | 585.1 | 999999 | |
| 6.77 | -14.00 | 5.74 | -14.00 | 10.07 | 124.41 | -54.67 | 82.06 | 0.8132 | 436.2 | 999999 | |
| 4.24 | -14.00 | 3.62 | -14.00 | 10.48 | 124.14 | -54.93 | 81.56 | 0.8158 | 357.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
