SDO HMI 2014-08-07 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.49 | 219.74 | 18.71 | 109.55 | 9.06 | 174.26 | -4.26 | 101.47 | 0.1058 | 211.4 | 50.0 | |
|
previous
or next observation for the same group /

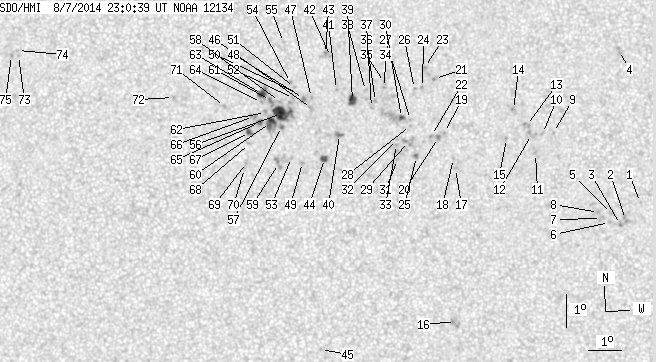

back to the solar disc SDO HMI 2014-08-07 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.54 | 6.91 | 182.81 | 4.28 | 279.22 | 0.0755 | -847.0 | -594.7 | |
| 0.00 | 4.43 | 0.00 | 2.20 | 6.40 | 182.34 | 3.82 | 272.62 | 0.0666 | -817.0 | -725.7 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 6.25 | 182.19 | 3.66 | 270.34 | 0.0638 | -1075.0 | -885.3 | |
| 0.00 | 3.34 | 0.00 | 1.67 | 11.55 | 182.22 | 3.69 | 325.74 | 0.1126 | -677.0 | -699.4 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 6.59 | 181.91 | 3.39 | 276.04 | 0.0594 | -822.0 | -665.8 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 6.31 | 181.85 | 3.33 | 271.43 | 0.0580 | -819.0 | -654.1 | |
| 0.00 | 3.16 | 0.00 | 1.57 | 6.44 | 181.61 | 3.08 | 273.82 | 0.0538 | -726.0 | -714.9 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 6.62 | 181.52 | 2.99 | 277.42 | 0.0525 | -907.0 | -808.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.06 | 180.15 | 1.63 | 330.31 | 0.0569 | -737.0 | -608.4 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 9.03 | 179.81 | 1.29 | 335.46 | 0.0538 | -900.0 | -686.3 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 8.42 | 179.60 | 1.07 | 334.09 | 0.0425 | -838.0 | -700.2 | |
| 0.00 | 4.25 | 0.00 | 2.11 | 9.00 | 179.47 | 0.95 | 341.21 | 0.0511 | -708.0 | -680.9 | |
| 0.00 | 4.34 | 0.00 | 2.15 | 9.28 | 179.32 | 0.80 | 345.45 | 0.0549 | -584.0 | -755.6 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.76 | 178.92 | 0.40 | 353.63 | 0.0621 | -954.0 | -816.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 8.88 | 178.71 | 0.18 | 356.11 | 0.0464 | -918.0 | -578.0 | |
| 0.00 | 7.14 | 0.00 | 3.54 | 3.32 | 177.14 | -1.38 | 154.75 | 0.0566 | -641.0 | -620.4 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 7.97 | 177.14 | -1.38 | 38.42 | 0.0387 | -753.0 | -593.9 | |
| 0.00 | 0.63 | 0.00 | 0.31 | 8.27 | 177.08 | -1.45 | 35.15 | 0.0436 | -863.0 | -696.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.06 | 176.80 | -1.73 | 31.12 | 0.0578 | -918.0 | -804.6 | |
| 0.00 | 2.71 | 0.00 | 1.34 | 8.91 | 176.61 | -1.91 | 35.23 | 0.0573 | -1160.0 | -917.9 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 10.71 | 176.48 | -2.04 | 24.20 | 0.0858 | -1024.0 | -774.8 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 8.97 | 176.40 | -2.13 | 37.53 | 0.0604 | -777.0 | -711.5 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 11.04 | 176.17 | -2.35 | 25.70 | 0.0934 | -1049.0 | -796.5 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 10.43 | 176.11 | -2.41 | 29.50 | 0.0844 | -909.0 | -754.7 | |
| 0.00 | 2.35 | 0.00 | 1.17 | 8.33 | 175.94 | -2.58 | 50.66 | 0.0579 | -1249.0 | -944.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.40 | 175.87 | -2.66 | 32.14 | 0.0862 | -865.0 | -709.8 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 9.46 | 175.75 | -2.78 | 40.37 | 0.0741 | -832.0 | -587.5 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.27 | 175.75 | -2.77 | 42.02 | 0.0717 | -861.0 | -613.8 | |
| 0.00 | 7.41 | 0.00 | 3.68 | 8.79 | 175.69 | -2.83 | 47.64 | 0.0664 | -761.0 | -754.0 | |
| 1.26 | 17.25 | 0.63 | 8.58 | 9.52 | 175.47 | -3.05 | 42.54 | 0.0781 | -892.2 | -169.0 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 8.24 | 175.36 | -3.17 | 57.39 | 0.0652 | -867.0 | -722.9 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.85 | 175.35 | -3.17 | 50.17 | 0.0715 | -782.0 | -582.8 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.69 | 175.32 | -3.20 | 52.12 | 0.0703 | -728.0 | -556.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.43 | 174.94 | -3.59 | 40.06 | 0.0960 | 975.0 | 743.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.58 | 174.94 | -3.59 | 39.06 | 0.0981 | 823.0 | 640.4 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 10.00 | 174.66 | -3.86 | 45.24 | 0.0938 | 873.0 | 754.1 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.82 | 174.54 | -3.98 | 47.56 | 0.0932 | 727.0 | 522.7 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 10.33 | 174.35 | -4.17 | 45.00 | 0.1017 | 979.0 | 701.1 | |
| 5.06 | 7.41 | 2.52 | 3.69 | 10.02 | 173.95 | -4.57 | 49.82 | 0.1032 | 1190.7 | 891.3 | |
| 0.00 | 3.79 | 0.00 | 1.89 | 8.99 | 173.56 | -4.96 | 60.52 | 0.0986 | 944.0 | 734.5 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.36 | 173.45 | -5.07 | 50.33 | 0.1135 | 1033.0 | 848.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.36 | 173.25 | -5.28 | 45.16 | 0.1277 | -836.0 | -664.9 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 11.45 | 173.09 | -5.43 | 45.48 | 0.1307 | -1068.0 | -837.3 | |
| 2.44 | 4.34 | 1.21 | 2.16 | 8.25 | 173.11 | -5.41 | 69.15 | 0.1004 | 1187.0 | 875.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 2.45 | 173.03 | -5.49 | 124.49 | 0.1166 | -782.0 | -579.4 | |
| 0.00 | 3.61 | 0.00 | 1.80 | 9.77 | 172.69 | -5.84 | 58.23 | 0.1185 | 737.0 | 676.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 10.10 | 172.68 | -5.84 | 55.88 | 0.1216 | 909.0 | 760.6 | |
| 0.00 | 2.89 | 0.00 | 1.44 | 10.07 | 172.43 | -6.09 | 57.18 | 0.1249 | 1054.0 | 880.2 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 8.12 | 172.43 | -6.09 | 72.33 | 0.1108 | 1002.0 | 695.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.22 | 172.24 | -6.28 | 56.95 | 0.1290 | 774.0 | 554.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.40 | 172.15 | -6.38 | 56.17 | 0.1321 | 782.0 | 644.2 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 10.07 | 172.12 | -6.40 | 58.45 | 0.1294 | 811.0 | 626.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.27 | 172.09 | -6.43 | 71.96 | 0.1172 | 888.0 | 708.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 10.56 | 172.02 | -6.50 | 55.73 | 0.1354 | 881.0 | 734.0 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 11.77 | 171.77 | -6.75 | 49.84 | 0.1512 | 641.0 | 446.2 | |
| 15.45 | 38.39 | 7.72 | 19.18 | 9.61 | 171.76 | -6.77 | 62.90 | 0.1311 | 1221.4 | 746.0 | |
| 0.00 | 2.80 | 0.00 | 1.40 | 9.21 | 171.76 | -6.76 | 65.66 | 0.1281 | 1059.0 | 836.1 | |
| 0.00 | 2.35 | 0.00 | 1.17 | 9.97 | 171.69 | -6.84 | 60.68 | 0.1350 | 868.0 | 660.0 | |
| 0.00 | 5.60 | 0.00 | 2.80 | 8.09 | 171.69 | -6.83 | 74.37 | 0.1229 | 563.0 | 767.0 | |
| 6.32 | -56.00 | 3.16 | -56.00 | 9.33 | 171.42 | -7.10 | 65.85 | 0.1343 | 1118.0 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.40 | 10.00 | 171.41 | -7.12 | 61.46 | 0.1395 | 1085.0 | 940.5 | |
| 0.00 | 2.44 | 0.00 | 1.22 | 9.63 | 171.26 | -7.26 | 64.30 | 0.1390 | 865.0 | 672.3 | |
| 3.70 | 8.58 | 1.85 | 4.30 | 10.18 | 171.16 | -7.37 | 61.15 | 0.1448 | 1063.2 | 774.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.94 | 171.13 | -7.39 | 62.74 | 0.1432 | 778.0 | 662.9 | |
| 1.63 | 3.52 | 0.81 | 1.76 | 9.33 | 171.08 | -7.44 | 66.83 | 0.1397 | 1127.2 | 837.4 | |
| 0.00 | 3.34 | 0.00 | 1.67 | 9.51 | 170.89 | -7.63 | 66.16 | 0.1439 | 797.0 | 752.3 | |
| 1.63 | 3.88 | 0.81 | 1.94 | 9.02 | 170.78 | -7.75 | 69.64 | 0.1427 | 1029.6 | 829.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.68 | 170.78 | -7.74 | 71.88 | 0.1407 | 948.0 | 660.5 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 8.10 | 170.70 | -7.82 | 76.04 | 0.1395 | 831.0 | 456.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 7.92 | 170.64 | -7.88 | 77.42 | 0.1398 | 753.0 | 473.4 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 9.80 | 169.98 | -8.54 | 66.65 | 0.1602 | 827.0 | 652.1 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 10.05 | 168.38 | -10.14 | 68.59 | 0.1871 | 867.0 | 736.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 11.22 | 163.42 | -15.11 | 70.52 | 0.2723 | 907.0 | 714.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.37 | 163.38 | -15.15 | 70.04 | 0.2737 | 746.0 | 561.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 11.21 | 163.19 | -15.33 | 70.78 | 0.2759 | 900.0 | 640.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
