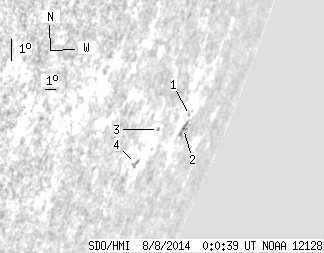

SDO HMI 2014-08-08 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 11.28 | 1.28 | 24.01 | -21.11 | 250.86 | 72.89 | 246.47 | 0.9729 | -91.8 | -63.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 1.49 | -20.57 | 252.55 | 74.58 | 247.36 | 0.9788 | 190.0 | 175.4 | |
| 0.54 | 5.69 | 1.28 | 13.42 | -20.98 | 252.38 | 74.41 | 246.92 | 0.9785 | 97.7 | 104.1 | |
| 0.00 | 1.35 | 0.00 | 2.57 | -20.67 | 249.20 | 71.22 | 246.58 | 0.9665 | -175.0 | -117.1 | |
| 0.00 | 3.61 | 0.00 | 6.53 | -21.68 | 248.02 | 70.05 | 245.30 | 0.9627 | -533.0 | -407.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
