SDO HMI 2014-08-08 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.95 | 181.84 | 17.95 | 90.61 | 9.19 | 174.11 | -3.86 | 87.86 | 0.0979 | 255.4 | 42.3 | |
|
previous
or next observation for the same group /

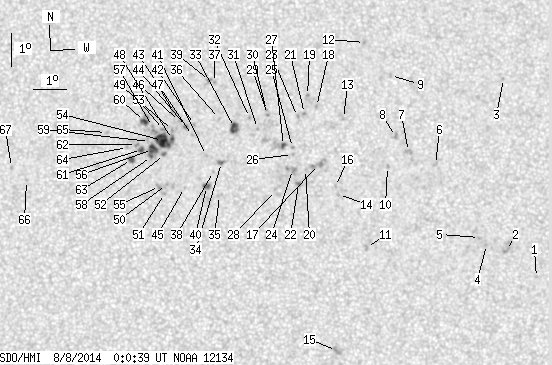

back to the solar disc SDO HMI 2014-08-08 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.49 | 5.45 | 183.22 | 5.25 | 261.61 | 0.0924 | -756.0 | -526.5 | |
| 0.00 | 3.61 | 0.00 | 1.80 | 6.28 | 182.31 | 4.34 | 270.70 | 0.0755 | -766.0 | -794.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.52 | 182.28 | 4.31 | 321.36 | 0.1185 | -895.0 | -714.7 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 6.47 | 181.70 | 3.72 | 273.64 | 0.0650 | -1029.0 | -815.8 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.68 | 181.48 | 3.51 | 277.33 | 0.0616 | -919.0 | -797.0 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 8.91 | 180.15 | 2.18 | 321.12 | 0.0601 | -822.0 | -661.5 | |
| 0.00 | 4.06 | 0.00 | 2.02 | 9.31 | 179.32 | 1.35 | 336.52 | 0.0586 | -814.0 | -761.0 | |
| 0.00 | 2.80 | 0.00 | 1.39 | 9.77 | 178.92 | 0.95 | 345.10 | 0.0639 | -1038.0 | -820.5 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 11.63 | 178.78 | 0.80 | 351.67 | 0.0952 | -789.0 | -676.9 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.86 | 178.67 | 0.70 | 345.14 | 0.0473 | -953.0 | -812.0 | |
| 0.00 | 2.62 | 0.00 | 1.30 | 6.40 | 178.02 | 0.05 | 340.94 | 0.0028 | -960.0 | -692.3 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.64 | 177.97 | -0.00 | 0.02 | 0.1118 | -819.0 | -667.1 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 10.32 | 177.32 | -0.65 | 8.97 | 0.0722 | -784.0 | -612.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.01 | 177.17 | -0.81 | 24.37 | 0.0339 | -863.0 | -648.5 | |
| 0.00 | 4.16 | 0.00 | 2.06 | 3.27 | 177.11 | -0.87 | 163.83 | 0.0544 | -1003.0 | -787.5 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.25 | 177.07 | -0.90 | 23.91 | 0.0384 | -839.0 | -680.9 | |
| 0.00 | 9.39 | 0.00 | 4.66 | 8.92 | 176.55 | -1.42 | 27.71 | 0.0529 | -907.0 | -805.2 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 10.68 | 176.48 | -1.49 | 18.25 | 0.0819 | -961.0 | -755.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.02 | 176.20 | -1.77 | 20.00 | 0.0890 | -977.0 | -809.0 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.77 | 176.15 | -1.82 | 35.51 | 0.0543 | -766.0 | -630.5 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 10.47 | 176.11 | -1.86 | 23.40 | 0.0807 | -958.0 | -699.4 | |
| 0.00 | 3.07 | 0.00 | 1.52 | 8.34 | 175.94 | -2.03 | 43.83 | 0.0509 | -1141.0 | -840.0 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 10.38 | 175.90 | -2.07 | 26.28 | 0.0808 | -836.0 | -680.0 | |
| 0.00 | 6.50 | 0.00 | 3.23 | 8.76 | 175.75 | -2.22 | 41.03 | 0.0586 | -734.0 | -791.5 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.43 | 175.75 | -2.22 | 34.51 | 0.0679 | -918.0 | -693.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.22 | 175.75 | -2.22 | 36.38 | 0.0648 | -854.0 | -642.4 | |
| 1.35 | 7.86 | 0.67 | 3.90 | 9.49 | 175.47 | -2.50 | 37.19 | 0.0715 | -873.1 | -252.5 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 8.12 | 175.23 | -2.74 | 55.21 | 0.0579 | -632.0 | -430.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.44 | 174.97 | -3.00 | 35.14 | 0.0899 | 943.0 | 736.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 10.56 | 174.94 | -3.03 | 34.65 | 0.0920 | 710.0 | 539.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 10.01 | 174.66 | -3.31 | 40.83 | 0.0873 | 932.0 | 699.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.34 | 174.41 | -3.56 | 40.45 | 0.0945 | 978.0 | 789.4 | |
| 5.15 | 7.86 | 2.56 | 3.91 | 10.03 | 173.95 | -4.02 | 46.15 | 0.0962 | 1157.0 | 797.5 | |
| 0.00 | 3.88 | 0.00 | 1.93 | 8.97 | 173.56 | -4.41 | 57.83 | 0.0901 | 1000.0 | 778.1 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 7.96 | 173.51 | -4.46 | 68.55 | 0.0831 | 675.0 | 630.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.31 | 173.49 | -4.49 | 47.27 | 0.1053 | 1103.0 | 829.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.40 | 173.31 | -4.66 | 41.43 | 0.1208 | -853.0 | -598.8 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.69 | 173.32 | -4.65 | 61.80 | 0.0914 | 825.0 | 588.2 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 11.46 | 173.16 | -4.81 | 42.03 | 0.1234 | -1073.0 | -740.7 | |
| 1.99 | 3.79 | 0.99 | 1.89 | 8.23 | 173.11 | -4.86 | 67.33 | 0.0914 | 1195.0 | 946.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.18 | 173.10 | -4.87 | 58.46 | 0.0989 | 877.0 | 611.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 10.12 | 172.71 | -5.26 | 53.02 | 0.1135 | 766.0 | 688.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.78 | 172.66 | -5.32 | 55.78 | 0.1109 | 874.0 | 757.7 | |
| 0.00 | 2.62 | 0.00 | 1.31 | 10.05 | 172.47 | -5.51 | 54.71 | 0.1163 | 1095.0 | 945.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.20 | 172.43 | -5.54 | 70.13 | 0.1021 | 929.0 | 687.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.20 | 172.25 | -5.73 | 54.69 | 0.1209 | 854.0 | 615.6 | |
| 0.00 | 3.43 | 0.00 | 1.71 | 10.48 | 172.09 | -5.89 | 53.61 | 0.1258 | 595.0 | 648.9 | |
| 1.35 | 36.77 | 0.68 | 18.35 | 9.65 | 172.04 | -5.93 | 59.51 | 0.1188 | 1085.5 | 798.8 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.93 | 172.03 | -5.94 | 57.56 | 0.1213 | 1061.0 | 786.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 8.28 | 171.87 | -6.10 | 71.03 | 0.1117 | 1028.0 | 846.8 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.01 | 171.82 | -6.16 | 73.54 | 0.1112 | 961.0 | 693.4 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 9.19 | 171.80 | -6.17 | 63.88 | 0.1188 | 1077.0 | 896.6 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 9.96 | 171.75 | -6.22 | 58.53 | 0.1256 | 834.0 | 704.9 | |
| 13.28 | -48.00 | 6.63 | -48.00 | 9.62 | 171.73 | -6.24 | 60.98 | 0.1232 | 1237.0 | 999999 | |
| 0.00 | 2.98 | 0.00 | 1.49 | 8.22 | 171.66 | -6.31 | 72.13 | 0.1149 | 891.0 | 797.2 | |
| 5.42 | -48.00 | 2.71 | -48.00 | 9.34 | 171.42 | -6.55 | 64.07 | 0.1257 | 1151.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.04 | 171.41 | -6.56 | 59.26 | 0.1315 | 940.0 | 739.8 | |
| 0.72 | -48.00 | 0.36 | -48.00 | 9.13 | 171.40 | -6.58 | 65.72 | 0.1246 | 880.4 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.31 | 9.59 | 171.33 | -6.65 | 62.68 | 0.1290 | 442.0 | 582.8 | |
| 2.89 | 7.95 | 1.45 | 3.98 | 10.19 | 171.16 | -6.81 | 59.21 | 0.1365 | 1071.1 | 747.1 | |
| 1.72 | 3.16 | 0.86 | 1.58 | 9.34 | 171.08 | -6.89 | 65.19 | 0.1310 | 1079.4 | 862.5 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 9.49 | 170.93 | -7.05 | 64.63 | 0.1345 | 895.0 | 780.5 | |
| 2.08 | 3.70 | 1.04 | 1.85 | 9.03 | 170.78 | -7.19 | 68.22 | 0.1338 | 1042.5 | 802.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.39 | 170.65 | -7.32 | 66.08 | 0.1382 | 698.0 | 502.3 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.84 | 169.99 | -7.99 | 65.03 | 0.1517 | 1001.0 | 782.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 8.34 | 167.53 | -10.44 | 77.93 | 0.1843 | 866.0 | 574.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.73 | 167.05 | -10.92 | 76.42 | 0.1936 | 826.0 | 657.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
