SDO HMI 2014-08-08 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.61 | 523.68 | 79.81 | 397.86 | 12.12 | 127.95 | -49.47 | 79.27 | 0.7581 | -182.5 | -57.7 | |
|
previous
or next observation for the same group /

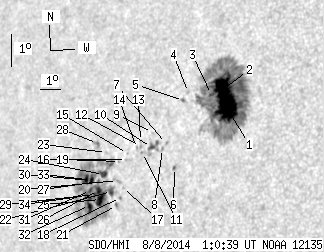

back to the solar disc SDO HMI 2014-08-08 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.04 | 309.33 | 26.82 | 224.98 | 13.20 | 130.37 | -47.05 | 77.75 | 0.7316 | -1073.5 | -307.0 | |
| 27.28 | -1.00 | 19.91 | -1.00 | 13.79 | 130.03 | -47.39 | 76.97 | 0.7360 | -979.1 | 999999 | |
| 2.44 | -1.00 | 1.79 | -1.00 | 13.57 | 129.53 | -47.89 | 77.32 | 0.7415 | -253.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.95 | 13.55 | 128.45 | -48.97 | 77.45 | 0.7537 | 223.0 | 185.0 | |
| 0.45 | 1.26 | 0.34 | 0.95 | 13.28 | 128.28 | -49.14 | 77.80 | 0.7554 | -518.6 | -386.2 | |
| 0.45 | 1.81 | 0.34 | 1.36 | 11.22 | 128.36 | -49.06 | 80.54 | 0.7534 | 625.4 | 514.3 | |
| 0.00 | 1.26 | 0.00 | 0.96 | 11.92 | 127.82 | -49.61 | 79.64 | 0.7598 | 510.0 | 470.2 | |
| 0.00 | 1.36 | 0.00 | 1.03 | 11.75 | 127.66 | -49.76 | 79.86 | 0.7614 | 756.0 | 627.9 | |
| 0.00 | 0.36 | 0.00 | 0.28 | 12.20 | 127.07 | -50.36 | 79.31 | 0.7682 | 693.0 | 625.2 | |
| 2.08 | 10.48 | 1.60 | 8.05 | 11.74 | 127.13 | -50.29 | 79.90 | 0.7673 | 760.5 | 518.8 | |
| 0.00 | 0.90 | 0.00 | 0.70 | 11.55 | 126.74 | -50.68 | 80.16 | 0.7716 | 463.0 | 529.2 | |
| 0.00 | 1.45 | 0.00 | 1.12 | 11.73 | 126.60 | -50.83 | 79.94 | 0.7732 | 756.0 | 582.9 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 11.88 | 126.56 | -50.86 | 79.74 | 0.7736 | 459.0 | 471.0 | |
| 0.00 | 0.81 | 0.00 | 0.64 | 11.68 | 126.41 | -51.01 | 80.00 | 0.7752 | 552.0 | 513.2 | |
| 0.00 | 0.81 | 0.00 | 0.64 | 11.46 | 126.02 | -51.40 | 80.30 | 0.7793 | 624.0 | 535.3 | |
| 0.00 | 0.81 | 0.00 | 0.64 | 11.28 | 126.01 | -51.41 | 80.53 | 0.7793 | 777.0 | 640.0 | |
| 0.00 | 0.54 | 0.00 | 0.43 | 10.42 | 126.02 | -51.40 | 81.64 | 0.7792 | 748.0 | 718.0 | |
| 0.00 | 1.17 | 0.00 | 0.92 | 10.11 | 125.99 | -51.43 | 82.04 | 0.7795 | 714.0 | 667.2 | |
| 0.00 | 1.26 | 0.00 | 1.00 | 11.19 | 125.68 | -51.74 | 80.66 | 0.7828 | 629.0 | 492.4 | |
| 0.00 | 3.34 | 0.00 | 2.65 | 10.61 | 125.73 | -51.70 | 81.40 | 0.7823 | 808.0 | 717.8 | |
| 0.00 | 2.26 | 0.00 | 1.78 | 9.85 | 125.85 | -51.57 | 82.37 | 0.7810 | 736.0 | 587.8 | |
| 2.89 | 177.70 | 2.30 | 144.31 | 10.25 | 125.51 | -51.91 | 81.86 | 0.7847 | 778.1 | 204.3 | |
| 0.00 | 1.08 | 0.00 | 0.87 | 11.41 | 124.97 | -52.45 | 80.39 | 0.7905 | 392.0 | 382.5 | |
| 4.07 | -22.00 | 3.27 | -22.00 | 10.73 | 124.99 | -52.43 | 81.25 | 0.7902 | 749.7 | 999999 | |
| 7.32 | -22.00 | 5.88 | -22.00 | 9.96 | 125.02 | -52.41 | 82.22 | 0.7899 | 941.9 | 999999 | |
| 2.89 | -22.00 | 2.33 | -22.00 | 10.23 | 124.85 | -52.57 | 81.89 | 0.7916 | 913.6 | 999999 | |
| 0.81 | -22.00 | 0.66 | -22.00 | 10.50 | 124.79 | -52.63 | 81.55 | 0.7923 | 748.0 | 999999 | |
| 0.45 | 4.16 | 0.37 | 3.39 | 11.64 | 124.44 | -52.98 | 80.11 | 0.7960 | -313.0 | 64.3 | |
| 1.45 | -22.00 | 1.17 | -22.00 | 10.09 | 124.68 | -52.74 | 82.06 | 0.7934 | 839.0 | 999999 | |
| 2.35 | -22.00 | 1.91 | -22.00 | 10.50 | 124.43 | -52.99 | 81.55 | 0.7960 | 599.0 | 999999 | |
| 1.54 | -22.00 | 1.25 | -22.00 | 10.19 | 124.45 | -52.97 | 81.93 | 0.7958 | 486.0 | 999999 | |
| 7.14 | -22.00 | 5.80 | -22.00 | 9.74 | 124.50 | -52.92 | 82.51 | 0.7953 | 629.7 | 999999 | |
| 3.70 | -22.00 | 3.04 | -22.00 | 10.51 | 124.17 | -53.25 | 81.54 | 0.7987 | 380.3 | 999999 | |
| 1.26 | -22.00 | 1.03 | -22.00 | 10.03 | 124.28 | -53.14 | 82.14 | 0.7975 | -10.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
