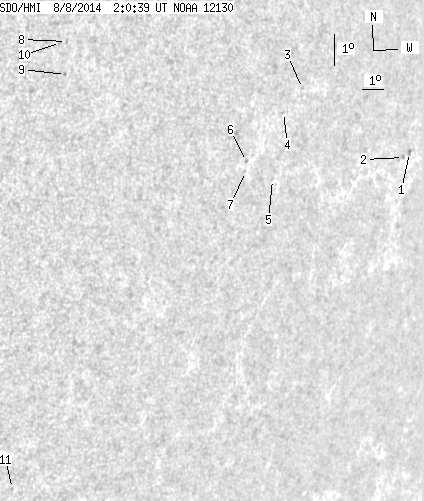

SDO HMI 2014-08-08 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.81 | 0.00 | 10.42 | -7.30 | 227.25 | 50.38 | 255.52 | 0.7873 | 91.2 | 190.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 2.12 | -7.82 | 234.91 | 58.04 | 257.10 | 0.8643 | 632.0 | 481.3 | |
| 0.00 | 1.36 | 0.00 | 1.31 | -7.95 | 234.59 | 57.72 | 256.88 | 0.8618 | 285.0 | 335.2 | |
| 0.00 | 1.17 | 0.00 | 0.97 | -5.27 | 228.75 | 51.88 | 258.58 | 0.8014 | 348.0 | 320.2 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -5.94 | 227.89 | 51.02 | 257.53 | 0.7941 | 582.0 | 543.8 | |
| 0.00 | 1.08 | 0.00 | 0.88 | -8.00 | 227.67 | 50.79 | 254.93 | 0.7969 | 441.0 | 353.7 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -7.32 | 226.31 | 49.43 | 255.35 | 0.7810 | 404.0 | 447.8 | |
| 0.00 | 0.63 | 0.00 | 0.50 | -7.64 | 226.31 | 49.43 | 254.96 | 0.7819 | 527.0 | 547.3 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -2.95 | 218.05 | 41.18 | 258.56 | 0.6732 | -505.0 | -459.5 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -3.97 | 218.06 | 41.19 | 257.09 | 0.6763 | -634.0 | -448.0 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -2.96 | 217.81 | 40.94 | 258.46 | 0.6702 | -644.0 | -493.0 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -17.08 | 218.00 | 41.13 | 239.49 | 0.7321 | -433.0 | -314.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
