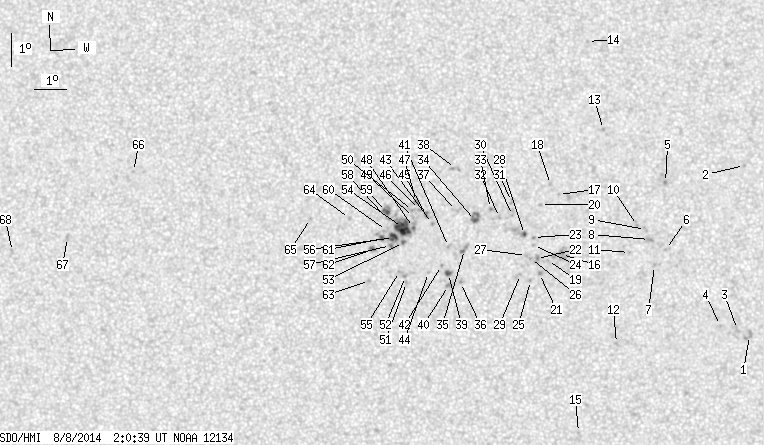

SDO HMI 2014-08-08 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.37 | 186.16 | 14.63 | 92.72 | 9.34 | 173.79 | -3.08 | 80.18 | 0.0935 | 244.4 | 122.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.07 | 0.00 | 2.02 | 6.37 | 182.38 | 5.50 | 271.48 | 0.0958 | -656.0 | -782.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.54 | 182.31 | 5.43 | 314.95 | 0.1317 | -914.0 | -661.2 | |
| 0.00 | 2.89 | 0.00 | 1.44 | 6.55 | 182.01 | 5.14 | 273.64 | 0.0895 | -865.0 | -688.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 6.68 | 181.49 | 4.62 | 275.56 | 0.0807 | -936.0 | -807.7 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 11.05 | 179.84 | 2.97 | 328.70 | 0.0984 | -909.0 | -748.6 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 9.01 | 179.82 | 2.95 | 313.44 | 0.0703 | -922.0 | -720.2 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 8.52 | 179.48 | 2.61 | 311.40 | 0.0602 | -896.0 | -830.1 | |
| 0.00 | 2.89 | 0.00 | 1.44 | 9.31 | 179.33 | 2.46 | 321.61 | 0.0685 | -996.0 | -918.6 | |
| 0.00 | 2.53 | 0.00 | 1.26 | 9.62 | 179.21 | 2.34 | 325.60 | 0.0715 | -638.0 | -681.9 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 9.74 | 178.96 | 2.09 | 329.41 | 0.0710 | -970.0 | -831.9 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.92 | 178.71 | 1.84 | 325.73 | 0.0566 | -1031.0 | -746.8 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 6.16 | 178.30 | 1.43 | 266.10 | 0.0249 | -880.0 | -610.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.67 | 177.93 | 1.06 | 350.84 | 0.1138 | -876.0 | -726.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 15.38 | 177.44 | 0.57 | 356.54 | 0.1595 | -756.0 | -592.3 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 3.45 | 177.13 | 0.26 | 185.34 | 0.0493 | -820.0 | -650.9 | |
| 0.00 | 13.46 | 0.00 | 6.68 | 8.87 | 176.62 | -0.25 | 5.44 | 0.0460 | -844.0 | -761.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.69 | 176.53 | -0.34 | 4.35 | 0.0779 | -877.0 | -625.0 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 11.00 | 176.28 | -0.59 | 6.98 | 0.0837 | -898.0 | -676.1 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.68 | 176.19 | -0.68 | 15.51 | 0.0442 | -783.0 | -586.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.39 | 175.97 | -0.90 | 12.09 | 0.0740 | -686.0 | -499.4 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 8.29 | 175.94 | -0.93 | 24.29 | 0.0391 | -1124.0 | -912.9 | |
| 0.00 | 3.98 | 0.00 | 1.97 | 8.74 | 175.85 | -1.02 | 22.05 | 0.0471 | -821.0 | -804.4 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.38 | 175.76 | -1.11 | 19.36 | 0.0581 | -784.0 | -567.1 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.14 | 175.76 | -1.11 | 20.86 | 0.0541 | -724.0 | -567.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.08 | 175.67 | -1.20 | 33.20 | 0.0381 | -905.0 | -676.7 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 8.74 | 175.67 | -1.20 | 25.56 | 0.0484 | -902.0 | -778.9 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 8.84 | 175.54 | -1.33 | 26.95 | 0.0508 | -768.0 | -572.5 | |
| 0.90 | 8.58 | 0.45 | 4.26 | 9.47 | 175.48 | -1.39 | 23.09 | 0.0613 | -872.9 | -188.9 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 8.26 | 175.36 | -1.51 | 36.73 | 0.0438 | -944.0 | -764.7 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 10.05 | 175.11 | -1.76 | 24.57 | 0.0732 | 714.0 | 556.0 | |
| 0.00 | 2.44 | 0.00 | 1.21 | 10.48 | 175.08 | -1.80 | 22.70 | 0.0802 | 769.0 | 614.2 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.99 | 174.71 | -2.16 | 29.70 | 0.0754 | 859.0 | 502.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.26 | 174.43 | -2.44 | 30.94 | 0.0820 | 968.0 | 842.9 | |
| 1.63 | 7.68 | 0.81 | 3.82 | 9.90 | 173.97 | -2.90 | 38.12 | 0.0812 | 1065.2 | 1003.7 | |
| 0.00 | 4.79 | 0.00 | 2.38 | 9.01 | 173.63 | -3.24 | 49.13 | 0.0741 | 811.0 | 758.7 | |
| 0.00 | 1.36 | 0.00 | 0.67 | 8.01 | 173.52 | -3.35 | 62.03 | 0.0659 | 902.0 | 730.9 | |
| 0.00 | 3.61 | 0.00 | 1.80 | 10.20 | 173.38 | -3.49 | 41.03 | 0.0918 | 702.0 | 630.6 | |
| 0.00 | 4.70 | 0.00 | 2.34 | 11.48 | 173.33 | -3.54 | 33.55 | 0.1100 | -578.0 | -637.2 | |
| 1.63 | 3.34 | 0.81 | 1.66 | 8.28 | 173.15 | -3.72 | 61.06 | 0.0738 | 1205.6 | 961.4 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 7.91 | 173.15 | -3.72 | 65.59 | 0.0709 | 1008.0 | 838.2 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 9.10 | 173.14 | -3.73 | 52.19 | 0.0817 | 896.0 | 687.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.52 | 172.93 | -3.94 | 59.66 | 0.0791 | 925.0 | 775.4 | |
| 0.00 | 1.36 | 0.00 | 0.67 | 9.80 | 172.64 | -4.23 | 49.52 | 0.0961 | 998.0 | 784.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.31 | 172.53 | -4.34 | 64.27 | 0.0835 | 919.0 | 675.7 | |
| 0.00 | 3.25 | 0.00 | 1.62 | 10.04 | 172.45 | -4.42 | 48.86 | 0.1013 | 1133.0 | 853.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.22 | 172.23 | -4.64 | 48.88 | 0.1062 | 915.0 | 772.3 | |
| 0.00 | 2.89 | 0.00 | 1.44 | 10.46 | 172.14 | -4.74 | 47.75 | 0.1102 | 785.0 | 688.2 | |
| 0.54 | 33.25 | 0.27 | 16.57 | 9.67 | 172.05 | -4.82 | 54.09 | 0.1027 | 1124.8 | 825.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 9.98 | 172.05 | -4.82 | 51.75 | 0.1059 | 935.0 | 705.5 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 10.19 | 172.02 | -4.86 | 50.38 | 0.1087 | 839.0 | 602.7 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.00 | 171.86 | -5.01 | 70.41 | 0.0923 | 836.0 | 631.0 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 8.18 | 171.82 | -5.05 | 68.68 | 0.0939 | 992.0 | 832.2 | |
| 0.63 | 1.90 | 0.31 | 0.94 | 9.21 | 171.75 | -5.12 | 59.45 | 0.1028 | 1010.6 | 783.5 | |
| 14.91 | -48.00 | 7.43 | -48.00 | 9.67 | 171.71 | -5.16 | 55.92 | 0.1075 | 1191.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 8.33 | 171.64 | -5.23 | 67.91 | 0.0979 | 899.0 | 711.9 | |
| 4.52 | -48.00 | 2.25 | -48.00 | 9.36 | 171.44 | -5.43 | 59.66 | 0.1087 | 1150.5 | 999999 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 9.12 | 171.35 | -5.52 | 62.04 | 0.1081 | 920.0 | 679.5 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 9.94 | 171.24 | -5.63 | 56.16 | 0.1168 | 795.0 | 687.3 | |
| 2.35 | 6.42 | 1.17 | 3.20 | 10.15 | 171.21 | -5.66 | 54.82 | 0.1194 | 1031.2 | 707.9 | |
| 0.00 | 3.52 | 0.00 | 1.76 | 9.57 | 171.22 | -5.65 | 58.99 | 0.1138 | 707.0 | 628.8 | |
| 1.36 | 4.70 | 0.68 | 2.34 | 9.33 | 171.10 | -5.77 | 61.39 | 0.1136 | 1136.1 | 845.0 | |
| 0.90 | 2.98 | 0.45 | 1.49 | 8.99 | 170.79 | -6.08 | 65.20 | 0.1157 | 1078.5 | 900.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.05 | 170.72 | -6.16 | 73.29 | 0.1114 | 924.0 | 603.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.93 | 170.07 | -6.81 | 60.98 | 0.1341 | 1031.0 | 802.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.91 | 168.85 | -8.02 | 64.75 | 0.1526 | 854.0 | 608.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.24 | 163.23 | -13.64 | 68.77 | 0.2492 | 824.0 | 626.7 | |
| 0.00 | 2.98 | 0.00 | 1.54 | 9.17 | 161.22 | -15.65 | 78.36 | 0.2732 | 819.0 | 649.0 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 8.70 | 159.48 | -17.40 | 80.87 | 0.3007 | 446.0 | 392.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
