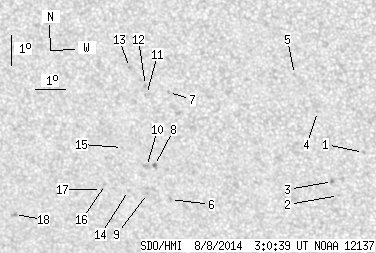

SDO HMI 2014-08-08 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 25.01 | 0.31 | 14.41 | -19.64 | 160.12 | -16.21 | 148.98 | 0.5094 | 545.7 | 373.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.66 | -19.42 | 166.60 | -9.73 | 159.75 | 0.4621 | -966.0 | -702.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -20.89 | 165.67 | -10.65 | 159.21 | 0.4883 | 774.0 | 644.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -20.42 | 165.51 | -10.81 | 158.54 | 0.4824 | 889.0 | 653.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.07 | 165.18 | -11.14 | 155.87 | 0.4511 | 512.0 | 410.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -16.85 | 164.51 | -11.81 | 153.35 | 0.4385 | 730.0 | 554.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -21.18 | 160.02 | -16.31 | 150.18 | 0.5285 | 794.0 | 644.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -17.56 | 160.32 | -16.00 | 146.69 | 0.4804 | 699.0 | 583.3 | |
| 0.54 | 2.08 | 0.31 | 1.20 | -20.03 | 159.60 | -16.72 | 148.36 | 0.5172 | 944.7 | 746.5 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -21.00 | 159.25 | -17.07 | 148.86 | 0.5319 | 707.0 | 644.4 | |
| 0.00 | 3.89 | 0.00 | 2.25 | -20.08 | 159.33 | -16.99 | 147.99 | 0.5199 | 733.0 | 440.7 | |
| 0.00 | 2.17 | 0.00 | 1.23 | -17.65 | 159.58 | -16.74 | 145.61 | 0.4878 | 658.0 | 479.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -17.35 | 159.58 | -16.74 | 145.23 | 0.4842 | 662.0 | 552.1 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -16.77 | 159.10 | -17.22 | 143.75 | 0.4813 | 815.0 | 632.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -20.92 | 158.62 | -17.71 | 147.84 | 0.5359 | 711.0 | 556.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -19.46 | 158.59 | -17.74 | 146.20 | 0.5184 | 553.0 | 520.9 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -20.74 | 157.85 | -18.47 | 146.56 | 0.5398 | 600.0 | 431.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -20.92 | 157.69 | -18.63 | 146.53 | 0.5432 | 603.0 | 505.8 | |
| 0.00 | 2.44 | 0.00 | 1.48 | -21.90 | 154.52 | -21.81 | 143.43 | 0.5807 | -720.0 | -566.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
