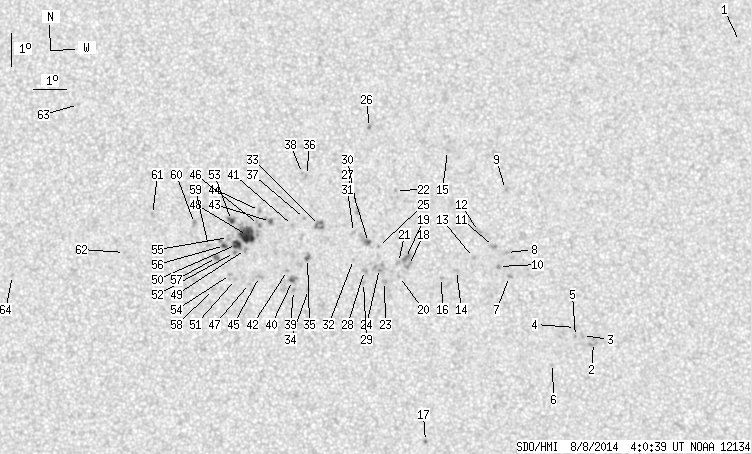

SDO HMI 2014-08-08 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.91 | 181.32 | 14.37 | 90.13 | 9.17 | 174.38 | -1.39 | 204.13 | 0.0819 | 142.6 | 29.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.46 | 15.46 | 187.27 | 11.49 | 310.15 | 0.2524 | -794.0 | -509.3 | |
| 0.00 | 5.33 | 0.00 | 2.66 | 6.36 | 182.38 | 6.61 | 271.23 | 0.1150 | -438.0 | -729.5 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 6.58 | 182.05 | 6.27 | 273.25 | 0.1092 | -838.0 | -691.8 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 6.82 | 181.84 | 6.06 | 275.67 | 0.1059 | -809.0 | -556.1 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.55 | 181.83 | 6.06 | 273.08 | 0.1055 | -1074.0 | -830.5 | |
| 0.00 | 0.63 | 0.00 | 0.31 | 5.74 | 181.12 | 5.34 | 264.66 | 0.0935 | -350.0 | -455.7 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 8.40 | 179.83 | 4.05 | 298.22 | 0.0797 | -947.0 | -767.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.13 | 179.74 | 3.97 | 306.33 | 0.0852 | -901.0 | -662.1 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 11.05 | 179.74 | 3.96 | 320.97 | 0.1082 | -745.0 | -688.9 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 8.70 | 179.49 | 3.72 | 303.76 | 0.0774 | -1091.0 | -925.7 | |
| 0.00 | 3.71 | 0.00 | 1.84 | 9.31 | 179.34 | 3.57 | 311.02 | 0.0818 | -1008.0 | -808.0 | |
| 0.00 | 3.71 | 0.00 | 1.84 | 9.77 | 178.88 | 3.11 | 318.95 | 0.0818 | -827.0 | -719.0 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 8.98 | 178.72 | 2.95 | 313.14 | 0.0699 | -845.0 | -667.6 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 8.59 | 178.20 | 2.42 | 314.27 | 0.0586 | -989.0 | -722.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 12.25 | 177.95 | 2.17 | 340.44 | 0.1113 | -838.0 | -650.2 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.38 | 177.73 | 1.96 | 317.59 | 0.0504 | -868.0 | -746.6 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 3.40 | 177.22 | 1.45 | 206.80 | 0.0562 | -1061.0 | -844.9 | |
| 0.00 | 3.16 | 0.00 | 1.57 | 8.75 | 176.72 | 0.95 | 339.39 | 0.0466 | -991.0 | -850.5 | |
| 0.00 | 4.34 | 0.00 | 2.15 | 8.96 | 176.63 | 0.85 | 342.63 | 0.0496 | -1056.0 | -894.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.41 | 176.44 | 0.67 | 342.92 | 0.0395 | -772.0 | -548.8 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 8.84 | 176.41 | 0.64 | 346.24 | 0.0466 | -905.0 | -781.5 | |
| 0.00 | 1.36 | 0.00 | 0.67 | 11.03 | 176.33 | 0.55 | 353.50 | 0.0841 | -859.0 | -597.4 | |
| 0.00 | 2.44 | 0.00 | 1.21 | 8.26 | 175.98 | 0.21 | 354.14 | 0.0353 | -971.0 | -861.3 | |
| 0.00 | 9.76 | 0.00 | 4.84 | 8.66 | 175.83 | 0.05 | 358.71 | 0.0420 | -604.0 | -759.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.33 | 175.80 | 0.02 | 359.54 | 0.0538 | -824.0 | -694.4 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 12.96 | 175.52 | -0.25 | 2.10 | 0.1172 | -1019.0 | -833.9 | |
| 0.81 | 8.22 | 0.40 | 4.08 | 9.45 | 175.49 | -0.28 | 5.01 | 0.0561 | -732.0 | -206.2 | |
| 0.00 | 2.62 | 0.00 | 1.30 | 8.60 | 175.37 | -0.41 | 9.76 | 0.0416 | -778.0 | -689.7 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 8.23 | 175.34 | -0.44 | 12.38 | 0.0354 | -935.0 | -691.0 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 10.43 | 175.15 | -0.62 | 8.37 | 0.0737 | 664.0 | 603.6 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 9.76 | 175.03 | -0.75 | 11.88 | 0.0626 | -221.0 | -143.8 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.93 | 175.03 | -0.74 | 15.40 | 0.0486 | -679.0 | -533.0 | |
| 0.00 | 7.23 | 0.00 | 3.59 | 9.97 | 173.98 | -1.80 | 25.50 | 0.0720 | 837.0 | 975.2 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 8.02 | 173.65 | -2.13 | 50.07 | 0.0481 | 901.0 | 775.1 | |
| 0.90 | 4.07 | 0.45 | 2.02 | 8.96 | 173.61 | -2.16 | 38.28 | 0.0604 | 891.9 | 651.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.49 | 173.57 | -2.21 | 22.47 | 0.0992 | -844.0 | -675.0 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 10.18 | 173.51 | -2.26 | 29.57 | 0.0790 | 969.0 | 828.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.55 | 173.44 | -2.33 | 23.35 | 0.1010 | -836.0 | -625.1 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 7.99 | 173.19 | -2.59 | 55.93 | 0.0542 | 1065.0 | 843.6 | |
| 1.08 | 4.70 | 0.54 | 2.33 | 8.29 | 173.16 | -2.62 | 51.84 | 0.0578 | 1150.5 | 897.8 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 9.96 | 173.15 | -2.63 | 34.92 | 0.0793 | 877.0 | 645.2 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.59 | 173.00 | -2.77 | 49.53 | 0.0632 | 998.0 | 761.6 | |
| 0.81 | 4.61 | 0.40 | 2.29 | 10.08 | 172.46 | -3.31 | 40.38 | 0.0881 | 1095.2 | 784.8 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 10.42 | 172.12 | -3.65 | 40.77 | 0.0964 | 897.0 | 796.3 | |
| 0.00 | 2.62 | 0.00 | 1.30 | 8.41 | 172.14 | -3.63 | 59.01 | 0.0735 | 1049.0 | 798.9 | |
| 0.00 | 3.34 | 0.00 | 1.66 | 9.99 | 172.09 | -3.68 | 44.09 | 0.0913 | 891.0 | 788.4 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.19 | 171.83 | -3.94 | 63.46 | 0.0764 | 810.0 | 613.4 | |
| 15.91 | 32.53 | 7.91 | 16.19 | 9.65 | 171.76 | -4.02 | 49.28 | 0.0915 | 1204.2 | 808.5 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 9.23 | 171.70 | -4.07 | 53.44 | 0.0877 | 1100.0 | 840.8 | |
| 4.88 | -48.00 | 2.43 | -48.00 | 9.38 | 171.42 | -4.35 | 53.88 | 0.0931 | 1140.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 8.31 | 171.40 | -4.37 | 64.43 | 0.0840 | 955.0 | 712.2 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.13 | 171.36 | -4.41 | 56.42 | 0.0916 | 927.0 | 796.2 | |
| 1.99 | 3.98 | 0.99 | 1.98 | 10.11 | 171.26 | -4.52 | 49.00 | 0.1032 | 1034.0 | 832.3 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 8.46 | 171.25 | -4.53 | 63.61 | 0.0876 | 927.0 | 750.0 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 9.59 | 171.17 | -4.60 | 53.58 | 0.0988 | 657.0 | 634.9 | |
| 1.36 | 4.07 | 0.67 | 2.02 | 9.34 | 171.05 | -4.72 | 56.33 | 0.0981 | 1116.4 | 899.1 | |
| 1.17 | 3.34 | 0.58 | 1.66 | 8.98 | 170.81 | -4.97 | 60.80 | 0.0984 | 1033.7 | 745.1 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 8.00 | 170.73 | -5.05 | 70.53 | 0.0928 | 764.0 | 584.7 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.34 | 170.56 | -5.22 | 58.89 | 0.1053 | 710.0 | 610.8 | |
| 0.00 | 3.25 | 0.00 | 1.62 | 10.01 | 170.11 | -5.66 | 55.88 | 0.1179 | 874.0 | 712.5 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 10.27 | 168.80 | -6.97 | 59.40 | 0.1394 | 856.0 | 669.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.10 | 167.96 | -7.82 | 69.40 | 0.1441 | 669.0 | 504.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 13.59 | 166.38 | -9.39 | 50.87 | 0.2054 | 784.0 | 515.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 8.34 | 164.48 | -11.29 | 78.80 | 0.1984 | 764.0 | 594.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
