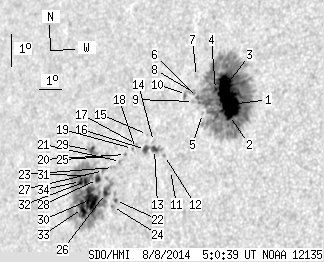

SDO HMI 2014-08-08 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.06 | 561.26 | 79.47 | 408.24 | 12.21 | 128.00 | -47.23 | 79.02 | 0.7326 | -130.1 | -71.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.20 | 326.73 | 19.61 | 228.24 | 13.39 | 130.50 | -44.73 | 77.26 | 0.7042 | -1196.2 | -328.5 | |
| 5.60 | -1.00 | 3.89 | -1.00 | 13.05 | 130.53 | -44.69 | 77.73 | 0.7035 | -1033.0 | 999999 | |
| 24.40 | -1.00 | 17.09 | -1.00 | 13.89 | 130.11 | -45.11 | 76.60 | 0.7094 | -1098.4 | 999999 | |
| 2.89 | -1.00 | 2.04 | -1.00 | 13.80 | 129.73 | -45.49 | 76.77 | 0.7138 | -530.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.77 | 13.03 | 129.34 | -45.89 | 77.89 | 0.7178 | -211.0 | -211.9 | |
| 0.63 | -1.00 | 0.45 | -1.00 | 13.49 | 129.00 | -46.23 | 77.27 | 0.7222 | -387.7 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.23 | 14.13 | 128.79 | -46.44 | 76.42 | 0.7252 | 160.0 | 134.8 | |
| 0.00 | 2.17 | 0.00 | 1.55 | 13.63 | 128.78 | -46.45 | 77.10 | 0.7248 | -433.0 | -298.8 | |
| 0.00 | 1.72 | 0.00 | 1.23 | 13.36 | 128.85 | -46.38 | 77.48 | 0.7238 | 305.0 | 210.5 | |
| 0.00 | 3.71 | 0.00 | 2.67 | 13.55 | 128.48 | -46.75 | 77.25 | 0.7282 | -71.0 | -96.8 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 11.19 | 128.30 | -46.93 | 80.51 | 0.7289 | 467.0 | 362.7 | |
| 0.00 | 1.17 | 0.00 | 0.85 | 11.62 | 127.93 | -47.30 | 79.93 | 0.7334 | -33.0 | -132.1 | |
| 2.71 | 10.85 | 1.99 | 7.97 | 11.77 | 127.43 | -47.79 | 79.76 | 0.7392 | 828.5 | 568.9 | |
| 0.00 | 1.17 | 0.00 | 0.86 | 12.01 | 127.33 | -47.89 | 79.44 | 0.7404 | 458.0 | 455.3 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 12.20 | 127.01 | -48.22 | 79.20 | 0.7443 | 365.0 | 417.6 | |
| 2.62 | -13.00 | 1.94 | -13.00 | 11.74 | 127.02 | -48.20 | 79.82 | 0.7439 | 656.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 11.85 | 126.57 | -48.65 | 79.69 | 0.7491 | 360.0 | 403.9 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 11.73 | 126.55 | -48.67 | 79.86 | 0.7492 | 699.0 | 606.9 | |
| 0.00 | 0.90 | 0.00 | 0.68 | 11.72 | 126.41 | -48.81 | 79.88 | 0.7508 | 387.0 | 475.8 | |
| 0.00 | 1.08 | 0.00 | 0.81 | 11.51 | 126.13 | -49.10 | 80.17 | 0.7539 | 449.0 | 496.8 | |
| 0.00 | 2.17 | 0.00 | 1.63 | 11.28 | 125.95 | -49.28 | 80.48 | 0.7559 | 502.0 | 496.7 | |
| 0.63 | 3.98 | 0.48 | 3.00 | 10.08 | 125.97 | -49.26 | 82.07 | 0.7554 | 716.7 | 652.8 | |
| 0.00 | 2.35 | 0.00 | 1.78 | 11.07 | 125.66 | -49.57 | 80.76 | 0.7591 | 707.0 | 642.8 | |
| 0.00 | 1.63 | 0.00 | 1.23 | 9.89 | 125.87 | -49.36 | 82.32 | 0.7566 | 799.0 | 588.1 | |
| 0.00 | 3.71 | 0.00 | 2.83 | 11.38 | 125.30 | -49.93 | 80.37 | 0.7632 | 141.0 | 179.4 | |
| 2.44 | 181.58 | 1.86 | 140.55 | 10.26 | 125.45 | -49.77 | 81.84 | 0.7612 | 820.4 | 235.8 | |
| 0.00 | 2.71 | 0.00 | 2.07 | 10.94 | 125.21 | -50.02 | 80.94 | 0.7641 | 655.0 | 591.3 | |
| 2.98 | -26.00 | 2.29 | -26.00 | 10.65 | 124.98 | -50.24 | 81.34 | 0.7665 | 804.1 | 999999 | |
| 2.53 | 7.77 | 1.96 | 6.03 | 11.50 | 124.49 | -50.74 | 80.24 | 0.7721 | 338.0 | 364.0 | |
| 20.15 | -26.00 | 15.54 | -26.00 | 10.02 | 124.78 | -50.45 | 82.16 | 0.7687 | 900.3 | 999999 | |
| 0.27 | -26.00 | 0.21 | -26.00 | 10.74 | 124.62 | -50.61 | 81.22 | 0.7705 | 636.0 | 999999 | |
| 2.62 | -26.00 | 2.04 | -26.00 | 10.54 | 124.42 | -50.81 | 81.49 | 0.7727 | 699.1 | 999999 | |
| 7.77 | -26.00 | 6.03 | -26.00 | 9.71 | 124.45 | -50.77 | 82.56 | 0.7723 | 613.0 | 999999 | |
| 2.62 | -26.00 | 2.05 | -26.00 | 10.52 | 124.18 | -51.05 | 81.51 | 0.7753 | 596.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
