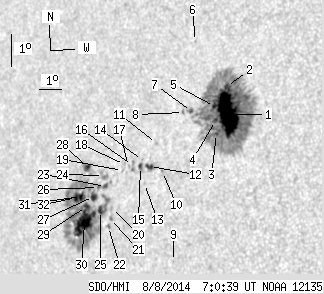

SDO HMI 2014-08-08 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.11 | 605.90 | 86.87 | 432.64 | 12.20 | 127.95 | -46.18 | 78.95 | 0.7204 | -60.1 | -82.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.05 | 348.72 | 37.67 | 239.05 | 13.62 | 130.40 | -43.73 | 76.81 | 0.6923 | -1110.3 | -330.5 | |
| 3.16 | -1.00 | 2.18 | -1.00 | 14.47 | 130.15 | -43.98 | 75.62 | 0.6964 | -690.9 | 999999 | |
| 1.08 | -1.00 | 0.75 | -1.00 | 13.01 | 130.06 | -44.07 | 77.73 | 0.6958 | -461.8 | 999999 | |
| 1.72 | -1.00 | 1.18 | -1.00 | 13.40 | 129.93 | -44.20 | 77.18 | 0.6978 | -299.8 | 999999 | |
| 1.54 | -1.00 | 1.06 | -1.00 | 13.82 | 129.78 | -44.35 | 76.60 | 0.7000 | -371.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.45 | 15.74 | 128.43 | -45.70 | 74.10 | 0.7186 | -526.0 | -506.6 | |
| 0.90 | -1.00 | 0.64 | -1.00 | 13.60 | 128.82 | -45.31 | 77.04 | 0.7114 | -371.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.09 | 13.54 | 128.48 | -45.66 | 77.15 | 0.7154 | -372.0 | -298.3 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 8.99 | 128.95 | -45.18 | 83.53 | 0.7074 | 579.0 | 473.7 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 11.68 | 127.96 | -46.17 | 79.79 | 0.7201 | -356.0 | -242.0 | |
| 0.00 | 1.36 | 0.00 | 0.97 | 12.51 | 127.50 | -46.63 | 78.68 | 0.7261 | 164.0 | 201.1 | |
| 2.80 | 5.42 | 2.02 | 3.90 | 11.79 | 127.35 | -46.78 | 79.68 | 0.7274 | 877.6 | 652.7 | |
| 0.00 | 1.45 | 0.00 | 1.04 | 11.25 | 127.23 | -46.90 | 80.42 | 0.7285 | 307.0 | 285.0 | |
| 0.00 | 1.63 | 0.00 | 1.18 | 11.94 | 126.99 | -47.14 | 79.49 | 0.7317 | 459.0 | 449.8 | |
| 1.45 | 4.25 | 1.05 | 3.08 | 11.75 | 126.94 | -47.19 | 79.75 | 0.7322 | 653.8 | 435.4 | |
| 0.00 | 3.80 | 0.00 | 2.77 | 11.76 | 126.57 | -47.56 | 79.76 | 0.7364 | 757.0 | 594.3 | |
| 0.00 | 0.72 | 0.00 | 0.53 | 11.71 | 126.40 | -47.73 | 79.83 | 0.7384 | 688.0 | 632.5 | |
| 0.00 | 0.54 | 0.00 | 0.40 | 11.76 | 126.20 | -47.93 | 79.78 | 0.7407 | 490.0 | 428.3 | |
| 0.00 | 1.18 | 0.00 | 0.86 | 11.57 | 126.15 | -47.98 | 80.04 | 0.7412 | 681.0 | 506.2 | |
| 0.00 | 2.08 | 0.00 | 1.54 | 10.38 | 125.90 | -48.24 | 81.65 | 0.7438 | 680.0 | 589.6 | |
| 0.00 | 1.63 | 0.00 | 1.20 | 10.07 | 125.91 | -48.22 | 82.07 | 0.7436 | 800.0 | 728.3 | |
| 0.36 | 1.81 | 0.27 | 1.34 | 9.83 | 125.87 | -48.27 | 82.40 | 0.7441 | 703.2 | 585.0 | |
| 1.27 | 220.91 | 0.94 | 167.17 | 11.02 | 125.48 | -48.65 | 80.80 | 0.7488 | 827.9 | 210.8 | |
| 0.00 | 6.24 | 0.00 | 4.66 | 11.35 | 125.31 | -48.82 | 80.37 | 0.7508 | 515.0 | 368.4 | |
| 3.16 | -23.00 | 2.36 | -23.00 | 10.28 | 125.40 | -48.73 | 81.80 | 0.7495 | 844.6 | 999999 | |
| 0.63 | -23.00 | 0.47 | -23.00 | 10.97 | 125.16 | -48.97 | 80.89 | 0.7524 | 622.6 | 999999 | |
| 3.71 | -23.00 | 2.78 | -23.00 | 10.68 | 124.99 | -49.15 | 81.28 | 0.7542 | 855.7 | 999999 | |
| 3.07 | -23.00 | 2.33 | -23.00 | 11.53 | 124.50 | -49.63 | 80.16 | 0.7599 | 265.1 | 999999 | |
| 3.43 | -23.00 | 2.59 | -23.00 | 10.35 | 124.72 | -49.41 | 81.72 | 0.7572 | 751.3 | 999999 | |
| 30.73 | -23.00 | 23.21 | -23.00 | 9.86 | 124.73 | -49.40 | 82.37 | 0.7570 | 785.7 | 999999 | |
| 3.62 | -23.00 | 2.75 | -23.00 | 10.63 | 124.37 | -49.76 | 81.36 | 0.7611 | 727.0 | 999999 | |
| 3.43 | -23.00 | 2.62 | -23.00 | 10.58 | 124.19 | -49.94 | 81.42 | 0.7631 | 534.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
