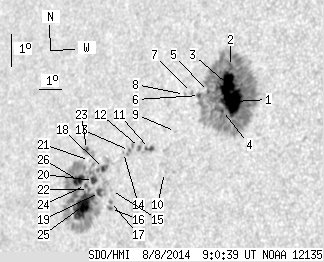

SDO HMI 2014-08-08 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.36 | 567.43 | 87.52 | 397.01 | 12.25 | 128.05 | -44.99 | 78.76 | 0.7062 | -71.3 | -90.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.35 | 333.88 | 22.36 | 224.77 | 13.50 | 130.62 | -42.41 | 76.81 | 0.6759 | -1118.5 | -331.2 | |
| 3.16 | -1.00 | 2.14 | -1.00 | 14.55 | 130.25 | -42.78 | 75.32 | 0.6819 | -722.0 | 999999 | |
| 24.49 | -1.00 | 16.53 | -1.00 | 14.00 | 130.26 | -42.78 | 76.13 | 0.6811 | -999.5 | 999999 | |
| 1.27 | -1.00 | 0.85 | -1.00 | 13.19 | 130.22 | -42.81 | 77.32 | 0.6805 | -446.5 | 999999 | |
| 0.90 | -1.00 | 0.62 | -1.00 | 13.72 | 129.50 | -43.54 | 76.63 | 0.6901 | -209.4 | 999999 | |
| 1.36 | -1.00 | 0.93 | -1.00 | 13.58 | 129.14 | -43.89 | 76.89 | 0.6942 | -467.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 13.64 | 128.78 | -44.26 | 76.85 | 0.6988 | -515.0 | -329.9 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 13.56 | 128.49 | -44.54 | 77.00 | 0.7022 | -400.0 | -260.6 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 12.41 | 128.36 | -44.68 | 78.65 | 0.7027 | 268.0 | 243.7 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 11.13 | 128.13 | -44.90 | 80.49 | 0.7045 | 458.0 | 412.4 | |
| 2.44 | 6.06 | 1.72 | 4.28 | 11.81 | 127.33 | -45.70 | 79.58 | 0.7146 | 827.7 | 535.8 | |
| 0.90 | 3.34 | 0.64 | 2.38 | 11.80 | 126.88 | -46.15 | 79.62 | 0.7200 | 711.3 | 557.3 | |
| 0.36 | 5.15 | 0.26 | 3.69 | 11.68 | 126.46 | -46.58 | 79.82 | 0.7249 | 804.8 | 642.0 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 11.60 | 126.20 | -46.83 | 79.94 | 0.7279 | 597.0 | 586.9 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 10.40 | 125.90 | -47.13 | 81.59 | 0.7310 | 609.0 | 533.2 | |
| 0.72 | 1.81 | 0.52 | 1.31 | 9.86 | 125.96 | -47.07 | 82.35 | 0.7302 | 752.2 | 620.7 | |
| 0.36 | 1.81 | 0.26 | 1.31 | 10.07 | 125.92 | -47.11 | 82.06 | 0.7307 | 854.0 | 733.9 | |
| 2.17 | 200.93 | 1.58 | 148.78 | 11.04 | 125.41 | -47.63 | 80.74 | 0.7370 | 832.2 | 220.1 | |
| 3.25 | -18.00 | 2.38 | -18.00 | 10.30 | 125.37 | -47.66 | 81.75 | 0.7371 | 878.6 | 999999 | |
| 3.53 | -18.00 | 2.59 | -18.00 | 10.64 | 125.03 | -48.01 | 81.29 | 0.7412 | 848.0 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.33 | 11.23 | 124.71 | -48.32 | 80.51 | 0.7450 | 574.0 | 517.8 | |
| 0.63 | -18.00 | 0.47 | -18.00 | 10.35 | 124.85 | -48.18 | 81.69 | 0.7432 | 856.1 | 999999 | |
| 1.54 | 8.13 | 1.14 | 6.03 | 11.55 | 124.50 | -48.53 | 80.09 | 0.7476 | 29.8 | 300.6 | |
| 1.08 | -18.00 | 0.80 | -18.00 | 10.46 | 124.69 | -48.34 | 81.55 | 0.7451 | 693.3 | 999999 | |
| 34.62 | -18.00 | 25.60 | -18.00 | 9.85 | 124.72 | -48.31 | 82.37 | 0.7446 | 767.4 | 999999 | |
| 8.23 | -18.00 | 6.13 | -18.00 | 10.59 | 124.34 | -48.70 | 81.39 | 0.7491 | 655.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
