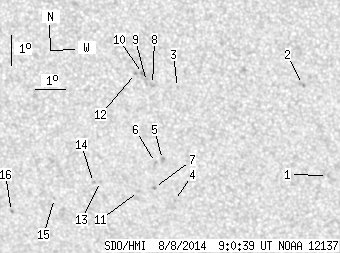

SDO HMI 2014-08-08 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.66 | 0.00 | 13.91 | -19.05 | 159.76 | -13.28 | 153.07 | 0.4796 | 646.4 | 576.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.61 | -20.37 | 165.25 | -7.79 | 164.15 | 0.4669 | 731.0 | 612.4 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -17.32 | 164.59 | -8.44 | 160.64 | 0.4246 | 864.0 | 653.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.50 | 160.53 | -12.51 | 152.72 | 0.4525 | 745.0 | 559.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -21.32 | 160.12 | -12.92 | 155.67 | 0.5074 | 666.0 | 516.9 | |
| 0.00 | 2.26 | 0.00 | 1.28 | -19.93 | 159.84 | -13.19 | 153.94 | 0.4904 | 796.0 | 666.8 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -20.04 | 159.60 | -13.44 | 153.63 | 0.4934 | 764.0 | 556.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -20.89 | 159.49 | -13.55 | 154.24 | 0.5056 | 773.0 | 650.5 | |
| 0.00 | 2.71 | 0.00 | 1.51 | -17.42 | 159.72 | -13.32 | 151.14 | 0.4573 | 564.0 | 657.9 | |
| 0.00 | 3.25 | 0.00 | 1.81 | -17.33 | 159.53 | -13.51 | 150.70 | 0.4575 | 766.0 | 715.1 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -17.06 | 159.42 | -13.62 | 150.20 | 0.4548 | 1012.0 | 812.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -21.05 | 158.94 | -14.10 | 153.49 | 0.5113 | 594.0 | 510.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.07 | 159.19 | -13.85 | 149.79 | 0.4567 | 842.0 | 756.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -20.74 | 157.69 | -15.35 | 151.21 | 0.5160 | 697.0 | 564.6 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -20.78 | 157.45 | -15.59 | 150.88 | 0.5182 | 696.0 | 550.5 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -21.37 | 156.06 | -16.98 | 149.38 | 0.5360 | 559.0 | 401.9 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -21.87 | 154.51 | -18.52 | 147.70 | 0.5538 | -727.0 | -630.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
