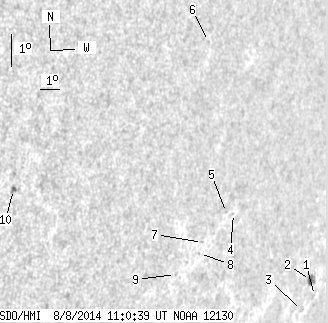

SDO HMI 2014-08-08 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.80 | 16.79 | 3.22 | 17.11 | -6.96 | 231.27 | 59.33 | 258.37 | 0.8690 | 307.2 | 183.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.85 | -8.54 | 235.36 | 63.43 | 257.52 | 0.9076 | 284.0 | 255.2 | |
| 2.80 | 6.87 | 3.22 | 7.90 | -8.03 | 234.94 | 63.00 | 257.98 | 0.9039 | 584.4 | 423.7 | |
| 0.00 | 2.17 | 0.00 | 2.48 | -8.93 | 234.59 | 62.65 | 256.93 | 0.9026 | 314.0 | 271.1 | |
| 0.00 | 0.81 | 0.00 | 0.78 | -5.42 | 229.59 | 57.66 | 259.75 | 0.8567 | 421.0 | 331.0 | |
| 0.00 | 0.54 | 0.00 | 0.51 | -5.35 | 229.18 | 57.25 | 259.74 | 0.8530 | 505.0 | 451.0 | |
| 0.00 | 0.72 | 0.00 | 0.64 | 0.03 | 227.80 | 55.87 | 265.81 | 0.8321 | -383.0 | -324.1 | |
| 0.00 | 0.72 | 0.00 | 0.66 | -6.17 | 227.96 | 56.03 | 258.52 | 0.8434 | 542.0 | 527.9 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -6.50 | 227.85 | 55.92 | 258.11 | 0.8430 | 459.0 | 399.3 | |
| 0.00 | 0.81 | 0.00 | 0.72 | -7.04 | 226.64 | 54.71 | 257.17 | 0.8329 | 455.0 | 444.6 | |
| 0.00 | 3.16 | 0.00 | 2.32 | -3.70 | 218.42 | 46.48 | 259.12 | 0.7391 | -725.0 | -591.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
