SDO HMI 2014-08-08 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.16 | 0.00 | 9.58 | -18.74 | 159.79 | -10.49 | 157.85 | 0.4572 | 668.9 | 592.9 | |
|
previous
or next observation for the same group /

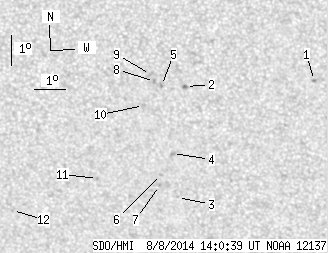

back to the solar disc SDO HMI 2014-08-08 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.78 | -17.24 | 164.76 | -5.52 | 167.01 | 0.4106 | 785.0 | 643.6 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -17.50 | 160.60 | -9.68 | 158.23 | 0.4342 | 840.0 | 650.5 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -21.26 | 160.10 | -10.18 | 160.32 | 0.4910 | 719.0 | 643.2 | |
| 0.00 | 2.17 | 0.00 | 1.22 | -19.76 | 160.04 | -10.24 | 159.05 | 0.4699 | 746.0 | 651.9 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.48 | 159.83 | -10.46 | 156.65 | 0.4386 | 884.0 | 779.6 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -20.48 | 159.63 | -10.65 | 158.88 | 0.4825 | 575.0 | 612.1 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -20.86 | 159.54 | -10.75 | 159.01 | 0.4883 | 846.0 | 677.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -17.36 | 159.61 | -10.68 | 156.09 | 0.4381 | 945.0 | 790.4 | |
| 0.00 | 2.44 | 0.00 | 1.34 | -17.13 | 159.49 | -10.79 | 155.64 | 0.4356 | 900.0 | 583.0 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.16 | 159.20 | -11.08 | 156.07 | 0.4522 | 753.0 | 634.4 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -20.66 | 157.49 | -12.79 | 155.30 | 0.4977 | 711.0 | 552.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -21.84 | 154.51 | -15.77 | 151.64 | 0.5331 | -677.0 | -564.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
