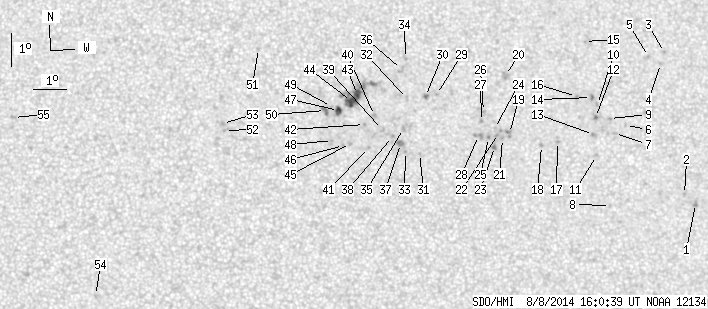

SDO HMI 2014-08-08 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.08 | 141.30 | 7.00 | 70.58 | 9.18 | 174.33 | 5.15 | 288.88 | 0.1149 | 74.9 | 88.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.98 | 0.00 | 1.52 | 6.41 | 182.50 | 13.32 | 271.36 | 0.2300 | -979.0 | -785.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 6.70 | 182.16 | 12.98 | 272.62 | 0.2243 | -951.0 | -864.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.03 | 181.69 | 12.51 | 291.92 | 0.2302 | -933.0 | -729.1 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 10.70 | 181.54 | 12.37 | 290.74 | 0.2261 | -856.0 | -637.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 10.92 | 181.17 | 12.00 | 292.23 | 0.2215 | -903.0 | -693.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 8.84 | 180.37 | 11.20 | 283.72 | 0.1984 | -694.0 | -592.2 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 8.60 | 180.02 | 10.84 | 282.90 | 0.1917 | -865.0 | -686.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.42 | 179.84 | 10.66 | 271.38 | 0.1847 | -876.0 | -630.0 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.06 | 179.88 | 10.70 | 285.42 | 0.1911 | -839.0 | -664.2 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 9.49 | 179.52 | 10.34 | 288.14 | 0.1871 | -844.0 | -696.6 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 7.94 | 179.44 | 10.26 | 279.95 | 0.1800 | -819.0 | -647.7 | |
| 0.00 | 2.35 | 0.00 | 1.18 | 9.10 | 179.44 | 10.26 | 286.20 | 0.1841 | -1207.0 | -1020.0 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 8.58 | 179.36 | 10.19 | 283.53 | 0.1807 | -937.0 | -864.9 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 9.71 | 179.34 | 10.16 | 289.55 | 0.1853 | -886.0 | -812.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 11.42 | 179.17 | 10.00 | 298.24 | 0.1940 | -815.0 | -606.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.75 | 178.87 | 9.69 | 290.57 | 0.1780 | -845.0 | -804.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.39 | 178.24 | 9.06 | 283.85 | 0.1612 | -962.0 | -798.9 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 8.28 | 177.74 | 8.56 | 283.84 | 0.1524 | -970.0 | -780.0 | |
| 0.00 | 4.06 | 0.00 | 2.03 | 8.66 | 176.75 | 7.58 | 288.13 | 0.1378 | -904.0 | -828.7 | |
| 0.00 | 5.78 | 0.00 | 2.90 | 10.43 | 176.67 | 7.49 | 299.79 | 0.1485 | -824.0 | -742.9 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.51 | 176.53 | 7.36 | 287.54 | 0.1334 | -1050.0 | -846.2 | |
| 0.00 | 2.62 | 0.00 | 1.31 | 8.67 | 176.41 | 7.24 | 288.92 | 0.1322 | -905.0 | -855.9 | |
| 0.00 | 2.80 | 0.00 | 1.40 | 8.27 | 176.28 | 7.10 | 286.30 | 0.1281 | -1117.0 | -952.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 8.82 | 176.29 | 7.11 | 290.33 | 0.1311 | -744.0 | -533.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.55 | 176.10 | 6.92 | 288.80 | 0.1265 | -1127.0 | -937.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.34 | 175.96 | 6.78 | 295.00 | 0.1292 | -867.0 | -688.5 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 9.04 | 175.89 | 6.72 | 293.01 | 0.1261 | -992.0 | -765.1 | |
| 0.00 | 5.06 | 0.00 | 2.52 | 8.61 | 175.79 | 6.61 | 290.08 | 0.1218 | -931.0 | -822.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.88 | 174.51 | 5.34 | 304.67 | 0.1120 | 1000.0 | 812.5 | |
| 0.00 | 2.89 | 0.00 | 1.44 | 9.82 | 174.17 | 5.00 | 306.00 | 0.1066 | 1169.0 | 905.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.09 | 173.96 | 4.79 | 291.26 | 0.0890 | 880.0 | 684.0 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 9.76 | 173.62 | 4.44 | 308.79 | 0.0983 | 641.0 | 623.0 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.15 | 173.53 | 4.36 | 293.83 | 0.0826 | 944.0 | 783.3 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 10.98 | 173.57 | 4.40 | 317.64 | 0.1122 | 807.0 | 575.2 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 8.85 | 173.48 | 4.30 | 301.48 | 0.0873 | 830.0 | 636.6 | |
| 0.00 | 3.43 | 0.00 | 1.71 | 10.65 | 173.44 | 4.27 | 316.37 | 0.1064 | 662.0 | 649.1 | |
| 0.00 | 4.33 | 0.00 | 2.15 | 8.40 | 173.38 | 4.20 | 297.31 | 0.0820 | 1169.0 | 978.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 8.61 | 173.14 | 3.96 | 301.08 | 0.0801 | 984.0 | 748.3 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 8.83 | 172.83 | 3.66 | 305.47 | 0.0777 | 642.0 | 763.2 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 9.26 | 172.59 | 3.41 | 311.67 | 0.0790 | 870.0 | 762.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.28 | 172.40 | 3.22 | 302.46 | 0.0662 | 876.0 | 750.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.98 | 172.28 | 3.10 | 311.65 | 0.0719 | 1024.0 | 849.1 | |
| 4.24 | 35.22 | 2.11 | 17.51 | 9.90 | 172.07 | 2.90 | 321.89 | 0.0810 | 1130.5 | 815.3 | |
| 6.68 | -43.00 | 3.32 | -43.00 | 9.69 | 171.89 | 2.71 | 322.06 | 0.0761 | 1287.0 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 8.41 | 171.84 | 2.67 | 309.16 | 0.0596 | 1013.0 | 784.5 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.35 | 171.63 | 2.45 | 310.72 | 0.0561 | 888.0 | 735.7 | |
| 3.16 | 5.06 | 1.57 | 2.51 | 9.42 | 171.48 | 2.31 | 324.18 | 0.0681 | 1231.5 | 898.6 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 8.50 | 171.29 | 2.11 | 316.97 | 0.0537 | 969.0 | 779.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.54 | 171.27 | 2.09 | 327.79 | 0.0678 | 795.0 | 685.9 | |
| 0.00 | 4.24 | 0.00 | 2.11 | 9.42 | 171.08 | 1.90 | 329.19 | 0.0643 | 1273.0 | 967.4 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 11.31 | 169.02 | -0.16 | 1.76 | 0.0884 | 875.0 | 664.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.82 | 167.97 | -1.20 | 25.05 | 0.0493 | 812.0 | 613.1 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 9.03 | 167.91 | -1.27 | 24.38 | 0.0531 | 938.0 | 748.4 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 3.78 | 164.04 | -5.13 | 115.69 | 0.0995 | 633.0 | 454.1 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 9.16 | 161.46 | -7.72 | 68.79 | 0.1429 | 776.0 | 631.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
