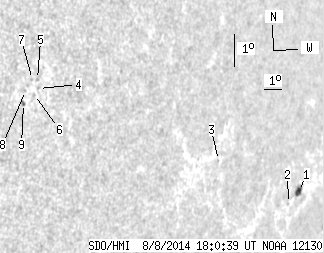

SDO HMI 2014-08-08 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.15 | 13.80 | 5.61 | 14.80 | -6.33 | 229.05 | 60.99 | 259.42 | 0.8771 | 22.4 | -112.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.15 | 6.23 | 5.61 | 8.41 | -8.03 | 235.22 | 67.16 | 258.78 | 0.9318 | 488.9 | 359.5 | |
| 0.00 | 0.45 | 0.00 | 0.59 | -8.34 | 234.54 | 66.47 | 258.33 | 0.9279 | 410.0 | 374.0 | |
| 0.00 | 0.54 | 0.00 | 0.58 | -6.46 | 229.13 | 61.06 | 259.30 | 0.8869 | 371.0 | 308.7 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -3.28 | 218.85 | 50.78 | 260.76 | 0.7858 | -608.0 | -516.4 | |
| 0.00 | 1.26 | 0.00 | 1.01 | -3.00 | 218.78 | 50.71 | 261.09 | 0.7846 | -370.0 | -388.7 | |
| 0.00 | 1.08 | 0.00 | 0.86 | -3.45 | 218.67 | 50.60 | 260.50 | 0.7843 | -374.0 | -290.4 | |
| 0.00 | 0.63 | 0.00 | 0.50 | -2.98 | 218.54 | 50.47 | 261.06 | 0.7819 | -569.0 | -446.3 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -3.29 | 218.22 | 50.15 | 260.60 | 0.7792 | -559.0 | -461.2 | |
| 0.00 | 1.90 | 0.00 | 1.49 | -3.68 | 218.15 | 50.09 | 260.08 | 0.7793 | -739.0 | -614.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
