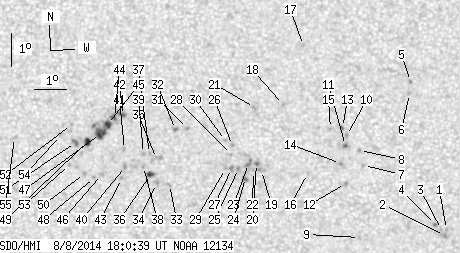

SDO HMI 2014-08-08 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.26 | 127.18 | 7.60 | 63.63 | 9.11 | 174.81 | 6.74 | 298.10 | 0.1305 | 18.7 | 68.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.60 | 6.57 | 182.59 | 14.52 | 271.97 | 0.2503 | -836.0 | -673.3 | |
| 0.00 | 2.98 | 0.00 | 1.52 | 6.39 | 182.52 | 14.45 | 271.25 | 0.2491 | -962.0 | -730.6 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 6.57 | 182.43 | 14.36 | 271.99 | 0.2476 | -854.0 | -705.1 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 6.73 | 182.24 | 14.17 | 272.64 | 0.2445 | -900.0 | -840.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 11.10 | 181.63 | 13.56 | 290.73 | 0.2471 | -875.0 | -760.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 10.74 | 181.58 | 13.51 | 289.38 | 0.2444 | -772.0 | -578.7 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.58 | 180.04 | 11.97 | 281.73 | 0.2104 | -810.0 | -639.2 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 9.04 | 179.93 | 11.86 | 283.98 | 0.2101 | -799.0 | -652.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 6.40 | 179.85 | 11.78 | 271.24 | 0.2038 | -799.0 | -624.1 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 9.51 | 179.53 | 11.47 | 286.61 | 0.2055 | -864.0 | -661.8 | |
| 0.45 | 1.99 | 0.23 | 1.00 | 9.20 | 179.49 | 11.42 | 285.22 | 0.2035 | -1145.2 | -975.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 8.05 | 179.46 | 11.39 | 279.59 | 0.1992 | -909.0 | -691.2 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 9.75 | 179.42 | 11.35 | 287.92 | 0.2047 | -889.0 | -764.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 8.66 | 179.32 | 11.25 | 282.75 | 0.1986 | -1081.0 | -902.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.73 | 179.04 | 10.97 | 288.35 | 0.1985 | -865.0 | -696.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.38 | 178.28 | 10.21 | 282.34 | 0.1803 | -690.0 | -674.2 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 12.28 | 178.29 | 10.22 | 301.50 | 0.2042 | -794.0 | -647.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 10.49 | 177.59 | 9.52 | 294.74 | 0.1799 | -913.0 | -746.6 | |
| 0.00 | 3.16 | 0.00 | 1.59 | 8.50 | 176.85 | 8.78 | 284.83 | 0.1569 | -762.0 | -719.2 | |
| 0.36 | 2.08 | 0.18 | 1.04 | 8.71 | 176.70 | 8.63 | 286.41 | 0.1553 | -1033.8 | -787.4 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 10.42 | 176.68 | 8.61 | 296.48 | 0.1653 | -977.0 | -749.5 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 8.47 | 176.60 | 8.53 | 285.05 | 0.1526 | -471.0 | -509.2 | |
| 0.00 | 3.52 | 0.00 | 1.76 | 8.71 | 176.45 | 8.38 | 286.87 | 0.1512 | -856.0 | -915.6 | |
| 0.00 | 4.15 | 0.00 | 2.08 | 8.29 | 176.35 | 8.28 | 284.28 | 0.1477 | -980.0 | -865.3 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 8.57 | 176.14 | 8.07 | 286.48 | 0.1454 | -1031.0 | -834.9 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.27 | 175.97 | 7.90 | 291.44 | 0.1463 | -948.0 | -749.7 | |
| 0.00 | 2.44 | 0.00 | 1.22 | 8.57 | 175.92 | 7.85 | 286.91 | 0.1418 | -1142.0 | -895.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.00 | 175.93 | 7.86 | 289.74 | 0.1442 | -907.0 | -757.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 8.57 | 175.73 | 7.66 | 287.29 | 0.1387 | -918.0 | -676.9 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 9.43 | 175.75 | 7.68 | 292.97 | 0.1439 | -740.0 | -542.1 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 9.81 | 174.58 | 6.51 | 299.13 | 0.1285 | 1000.0 | 712.8 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 9.78 | 174.21 | 6.14 | 300.37 | 0.1227 | 1114.0 | 891.8 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 8.11 | 173.99 | 5.92 | 287.70 | 0.1077 | 829.0 | 687.8 | |
| 0.00 | 2.53 | 0.00 | 1.26 | 8.15 | 173.59 | 5.52 | 289.18 | 0.1013 | 896.0 | 776.8 | |
| 0.00 | 5.51 | 0.00 | 2.74 | 8.91 | 173.60 | 5.54 | 295.96 | 0.1065 | 745.0 | 606.1 | |
| 2.17 | 4.06 | 1.08 | 2.02 | 8.42 | 173.41 | 5.34 | 292.38 | 0.1001 | 1038.7 | 734.1 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 9.06 | 173.39 | 5.32 | 298.18 | 0.1044 | 617.0 | 537.2 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 8.67 | 173.20 | 5.13 | 295.50 | 0.0984 | 813.0 | 718.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.06 | 173.21 | 5.14 | 299.03 | 0.1016 | 944.0 | 803.4 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 8.67 | 172.64 | 4.58 | 298.14 | 0.0898 | 953.0 | 832.0 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 9.19 | 172.62 | 4.55 | 303.17 | 0.0940 | 864.0 | 660.1 | |
| 0.45 | 4.70 | 0.22 | 2.34 | 10.23 | 172.60 | 4.54 | 311.65 | 0.1046 | 1032.8 | 779.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 8.31 | 172.52 | 4.45 | 295.03 | 0.0851 | 910.0 | 687.5 | |
| 0.00 | 4.51 | 0.00 | 2.25 | 10.17 | 172.33 | 4.26 | 313.02 | 0.1004 | 1095.0 | 840.9 | |
| 2.89 | 21.04 | 1.44 | 10.47 | 9.96 | 172.11 | 4.04 | 312.91 | 0.0951 | 1138.2 | 819.3 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 8.44 | 171.90 | 3.83 | 299.86 | 0.0766 | 966.0 | 727.0 | |
| 5.87 | -45.00 | 2.92 | -45.00 | 9.69 | 171.89 | 3.82 | 312.29 | 0.0891 | 1275.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.35 | 171.69 | 3.62 | 300.23 | 0.0726 | 1037.0 | 780.3 | |
| 3.07 | 4.88 | 1.53 | 2.42 | 9.45 | 171.48 | 3.41 | 313.36 | 0.0811 | 1246.1 | 881.7 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 8.47 | 171.38 | 3.31 | 303.98 | 0.0692 | 999.0 | 771.2 | |
| 0.00 | 3.43 | 0.00 | 1.70 | 9.42 | 171.11 | 3.04 | 316.38 | 0.0762 | 1388.0 | 1018.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.97 | 170.99 | 2.92 | 322.07 | 0.0821 | 816.0 | 580.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.75 | 170.92 | 2.85 | 311.36 | 0.0658 | 901.0 | 765.1 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 9.63 | 170.65 | 2.58 | 322.87 | 0.0739 | 843.0 | 560.5 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 9.58 | 169.23 | 1.16 | 340.84 | 0.0613 | 690.0 | 602.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
