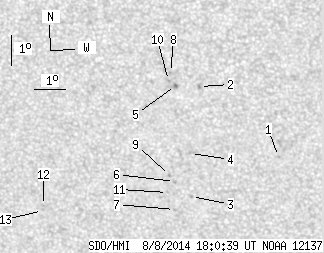

SDO HMI 2014-08-08 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.50 | 0.00 | 8.66 | -19.50 | 159.53 | -8.54 | 162.19 | 0.4580 | 511.3 | 485.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.65 | -19.80 | 163.04 | -5.02 | 169.37 | 0.4487 | 485.0 | 396.5 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -17.48 | 160.58 | -7.49 | 162.82 | 0.4225 | 911.0 | 666.9 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -21.20 | 160.14 | -7.93 | 164.39 | 0.4800 | 755.0 | 533.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.73 | 160.19 | -7.88 | 163.56 | 0.4581 | 734.0 | 624.4 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -17.46 | 159.81 | -8.26 | 161.16 | 0.4260 | 930.0 | 775.8 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -20.69 | 159.61 | -8.46 | 163.08 | 0.4748 | 485.0 | 570.1 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -21.65 | 159.55 | -8.52 | 163.59 | 0.4891 | 553.0 | 457.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -17.03 | 159.67 | -8.40 | 160.51 | 0.4203 | 742.0 | 653.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -20.49 | 159.46 | -8.61 | 162.66 | 0.4725 | 781.0 | 731.2 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.30 | 159.59 | -8.47 | 160.57 | 0.4247 | 974.0 | 821.1 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -21.07 | 159.36 | -8.71 | 162.86 | 0.4815 | 674.0 | 565.4 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -21.61 | 155.20 | -12.87 | 156.00 | 0.5112 | -684.0 | -520.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.78 | 155.15 | -12.92 | 156.06 | 0.5138 | -693.0 | -562.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
