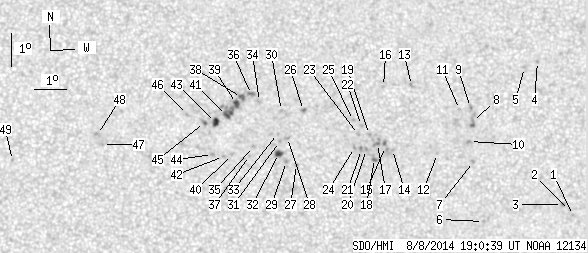

SDO HMI 2014-08-08 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.03 | 111.45 | 4.99 | 55.87 | 9.12 | 174.73 | 7.21 | 293.85 | 0.1384 | 34.5 | 47.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.74 | 6.38 | 182.56 | 15.05 | 271.20 | 0.2593 | -885.0 | -737.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 6.53 | 182.44 | 14.93 | 271.80 | 0.2572 | -783.0 | -700.2 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 6.72 | 182.23 | 14.71 | 272.55 | 0.2536 | -977.0 | -828.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 11.09 | 181.62 | 14.10 | 290.01 | 0.2556 | -926.0 | -766.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 10.92 | 181.19 | 13.68 | 289.87 | 0.2480 | -959.0 | -675.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 6.27 | 179.73 | 12.22 | 270.62 | 0.2113 | -773.0 | -621.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 8.10 | 179.47 | 11.95 | 279.44 | 0.2088 | -927.0 | -746.4 | |
| 0.00 | 6.05 | 0.00 | 3.07 | 9.32 | 179.48 | 11.96 | 285.13 | 0.2129 | -893.0 | -858.1 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 9.75 | 179.43 | 11.92 | 287.13 | 0.2139 | -845.0 | -697.9 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 8.71 | 179.36 | 11.85 | 282.42 | 0.2088 | -1010.0 | -845.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 9.69 | 179.08 | 11.57 | 287.33 | 0.2080 | -745.0 | -626.6 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 8.37 | 178.35 | 10.83 | 281.66 | 0.1908 | -860.0 | -698.3 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 10.45 | 177.60 | 10.09 | 293.37 | 0.1885 | -949.0 | -770.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 8.52 | 176.95 | 9.44 | 284.03 | 0.1679 | -731.0 | -579.9 | |
| 0.00 | 4.60 | 0.00 | 2.31 | 8.62 | 176.73 | 9.22 | 284.89 | 0.1647 | -609.0 | -790.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 10.44 | 176.72 | 9.21 | 295.16 | 0.1747 | -1033.0 | -792.1 | |
| 0.00 | 4.24 | 0.00 | 2.13 | 8.71 | 176.49 | 8.97 | 285.83 | 0.1610 | -1207.0 | -889.7 | |
| 0.00 | 3.79 | 0.00 | 1.90 | 8.26 | 176.38 | 8.87 | 283.19 | 0.1574 | -1121.0 | -854.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 8.99 | 176.25 | 8.73 | 287.92 | 0.1583 | -732.0 | -603.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.53 | 176.14 | 8.63 | 285.28 | 0.1545 | -1114.0 | -913.4 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 8.54 | 175.99 | 8.47 | 285.55 | 0.1519 | -1068.0 | -943.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.27 | 176.00 | 8.49 | 290.08 | 0.1558 | -874.0 | -765.4 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 8.99 | 175.90 | 8.39 | 288.60 | 0.1527 | -926.0 | -729.2 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 8.60 | 175.77 | 8.26 | 286.33 | 0.1486 | -988.0 | -739.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 9.42 | 175.76 | 8.24 | 291.57 | 0.1528 | -792.0 | -543.1 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 9.75 | 174.21 | 6.70 | 298.05 | 0.1309 | 1060.0 | 866.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.11 | 173.96 | 6.45 | 286.35 | 0.1164 | 868.0 | 737.2 | |
| 0.00 | 2.44 | 0.00 | 1.22 | 8.94 | 173.70 | 6.19 | 293.80 | 0.1169 | 652.0 | 611.4 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 8.21 | 173.66 | 6.14 | 287.91 | 0.1118 | 1039.0 | 745.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.76 | 173.53 | 6.02 | 300.67 | 0.1206 | 912.0 | 731.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.82 | 173.45 | 5.94 | 293.68 | 0.1121 | 775.0 | 632.4 | |
| 2.62 | 4.24 | 1.30 | 2.11 | 8.45 | 173.41 | 5.90 | 290.72 | 0.1092 | 1080.6 | 723.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 9.06 | 173.39 | 5.88 | 295.88 | 0.1129 | 671.0 | 579.4 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 10.04 | 172.85 | 5.34 | 305.78 | 0.1135 | 783.0 | 682.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.68 | 172.65 | 5.13 | 295.51 | 0.0984 | 1081.0 | 903.3 | |
| 0.00 | 3.16 | 0.00 | 1.58 | 10.26 | 172.61 | 5.10 | 308.60 | 0.1123 | 967.0 | 822.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.40 | 172.52 | 5.00 | 293.45 | 0.0945 | 749.0 | 653.8 | |
| 0.00 | 3.52 | 0.00 | 1.75 | 10.17 | 172.30 | 4.78 | 309.71 | 0.1072 | 970.0 | 890.6 | |
| 2.35 | 17.24 | 1.17 | 8.58 | 9.99 | 172.14 | 4.63 | 309.29 | 0.1031 | 1159.9 | 1019.9 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.44 | 172.00 | 4.48 | 296.16 | 0.0865 | 936.0 | 698.6 | |
| 1.63 | -39.00 | 0.81 | -39.00 | 9.63 | 171.83 | 4.31 | 308.35 | 0.0950 | 1293.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.38 | 171.72 | 4.20 | 296.98 | 0.0817 | 1007.0 | 842.4 | |
| 3.43 | 5.51 | 1.71 | 2.74 | 9.42 | 171.48 | 3.97 | 308.82 | 0.0881 | 1227.7 | 831.3 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 8.44 | 171.38 | 3.87 | 299.66 | 0.0771 | 1026.0 | 800.1 | |
| 0.00 | 2.89 | 0.00 | 1.44 | 9.42 | 171.14 | 3.63 | 311.34 | 0.0836 | 1354.0 | 1004.4 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.67 | 170.62 | 3.11 | 317.92 | 0.0801 | 986.0 | 724.0 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.77 | 168.00 | 0.49 | 349.07 | 0.0444 | 881.0 | 717.0 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 9.07 | 167.85 | 0.33 | 353.28 | 0.0492 | 906.0 | 791.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.28 | 165.24 | -2.28 | 48.40 | 0.0529 | 918.0 | 726.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
