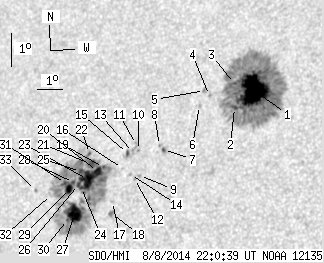

SDO HMI 2014-08-08 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.47 | 669.92 | 81.69 | 420.91 | 12.32 | 128.05 | -37.80 | 77.76 | 0.6146 | -15.4 | -46.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-08 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.51 | 353.30 | 34.81 | 213.97 | 13.96 | 131.05 | -34.80 | 74.62 | 0.5767 | -1180.4 | -386.8 | |
| 2.26 | -1.00 | 1.37 | -1.00 | 13.40 | 130.42 | -35.44 | 75.74 | 0.5841 | -570.2 | 999999 | |
| 0.90 | -1.00 | 0.55 | -1.00 | 14.13 | 130.29 | -35.56 | 74.53 | 0.5874 | -316.8 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 13.70 | 129.40 | -36.46 | 75.46 | 0.5986 | -714.0 | -546.7 | |
| 0.00 | 2.62 | 0.00 | 1.62 | 13.84 | 129.18 | -36.68 | 75.28 | 0.6019 | -567.0 | -489.6 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 13.37 | 129.06 | -36.79 | 76.08 | 0.6025 | -591.0 | -450.4 | |
| 0.90 | 2.08 | 0.57 | 1.30 | 11.95 | 127.89 | -37.96 | 78.62 | 0.6161 | 883.4 | 723.3 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 12.06 | 127.72 | -38.14 | 78.47 | 0.6186 | 733.0 | 628.4 | |
| 0.00 | 1.26 | 0.00 | 0.80 | 11.09 | 127.08 | -38.78 | 80.09 | 0.6261 | -798.0 | -657.1 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 11.85 | 126.92 | -38.94 | 78.91 | 0.6291 | 836.0 | 724.3 | |
| 0.00 | 1.90 | 0.00 | 1.21 | 12.03 | 126.81 | -39.05 | 78.64 | 0.6307 | 581.0 | 529.4 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 10.99 | 126.89 | -38.96 | 80.28 | 0.6285 | -558.0 | -445.3 | |
| 0.00 | 1.44 | 0.00 | 0.92 | 11.78 | 126.73 | -39.13 | 79.05 | 0.6315 | 664.0 | 590.2 | |
| 0.00 | 1.35 | 0.00 | 0.86 | 11.10 | 126.72 | -39.14 | 80.12 | 0.6309 | -334.0 | -223.7 | |
| 1.17 | 2.80 | 0.75 | 1.79 | 11.73 | 126.49 | -39.36 | 79.15 | 0.6345 | 811.5 | 698.3 | |
| 0.00 | 0.63 | 0.00 | 0.40 | 11.26 | 126.37 | -39.48 | 79.90 | 0.6357 | -454.0 | -355.0 | |
| 0.00 | 1.35 | 0.00 | 0.87 | 10.23 | 126.13 | -39.73 | 81.54 | 0.6381 | 821.0 | 633.1 | |
| 0.00 | 3.16 | 0.00 | 2.03 | 9.87 | 126.14 | -39.71 | 82.11 | 0.6377 | 892.0 | 722.8 | |
| 0.90 | 288.02 | 0.58 | 188.68 | 11.24 | 125.60 | -40.25 | 80.01 | 0.6457 | 876.7 | 353.6 | |
| 6.50 | -19.00 | 4.22 | -19.00 | 11.10 | 125.38 | -40.47 | 80.25 | 0.6485 | 1103.8 | 999999 | |
| 5.33 | -19.00 | 3.47 | -19.00 | 11.30 | 125.10 | -40.75 | 79.97 | 0.6523 | 418.3 | 999999 | |
| 0.54 | -19.00 | 0.35 | -19.00 | 11.62 | 124.97 | -40.89 | 79.48 | 0.6544 | -402.7 | 999999 | |
| 19.14 | -19.00 | 12.49 | -19.00 | 10.83 | 125.02 | -40.84 | 80.69 | 0.6531 | 1032.0 | 999999 | |
| 2.26 | -19.00 | 1.48 | -19.00 | 10.57 | 124.81 | -41.04 | 81.11 | 0.6556 | 901.6 | 999999 | |
| 2.17 | -19.00 | 1.42 | -19.00 | 11.05 | 124.69 | -41.16 | 80.38 | 0.6575 | 572.9 | 999999 | |
| 1.90 | -19.00 | 1.24 | -19.00 | 10.65 | 124.68 | -41.18 | 80.99 | 0.6574 | 822.3 | 999999 | |
| 19.14 | -19.00 | 12.55 | -19.00 | 9.76 | 124.65 | -41.20 | 82.35 | 0.6573 | 1001.5 | 999999 | |
| 0.27 | -19.00 | 0.18 | -19.00 | 10.70 | 124.46 | -41.39 | 80.93 | 0.6602 | 733.3 | 999999 | |
| 5.87 | -19.00 | 3.87 | -19.00 | 10.51 | 124.33 | -41.52 | 81.24 | 0.6618 | 695.2 | 999999 | |
| 0.27 | -19.00 | 0.18 | -19.00 | 9.56 | 124.39 | -41.46 | 82.67 | 0.6606 | 597.7 | 999999 | |
| 2.44 | -19.00 | 1.61 | -19.00 | 10.65 | 124.14 | -41.71 | 81.04 | 0.6643 | 556.0 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.87 | 10.27 | 123.62 | -42.23 | 81.63 | 0.6708 | -394.0 | -201.2 | |
| 0.00 | 1.35 | 0.00 | 0.91 | 10.34 | 122.93 | -42.92 | 81.56 | 0.6795 | -578.0 | -449.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
