SDO HMI 2014-08-08 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.11 | 124.14 | 5.07 | 62.63 | 8.90 | 174.88 | 9.58 | 283.25 | 0.1799 | 83.3 | -17.6 | |
|
previous
or next observation for the same group /

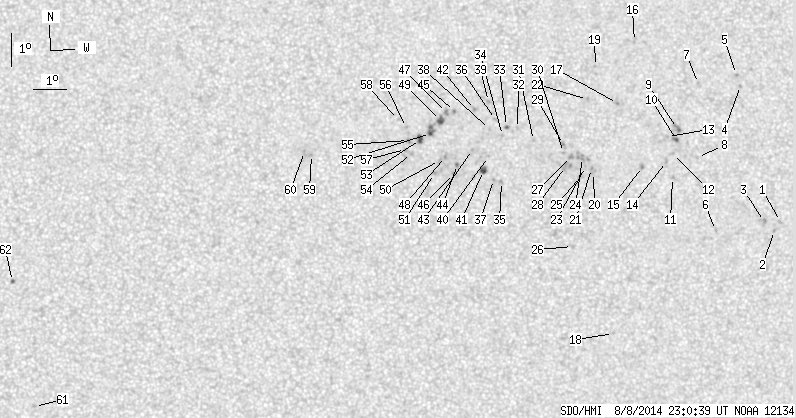

back to the solar disc SDO HMI 2014-08-08 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.84 | 6.69 | 182.79 | 17.48 | 272.25 | 0.2999 | -673.0 | -576.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 6.42 | 182.58 | 17.28 | 271.35 | 0.2966 | -810.0 | -560.4 | |
| 0.00 | 2.26 | 0.00 | 1.17 | 6.70 | 182.27 | 16.97 | 272.32 | 0.2914 | -840.0 | -714.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 10.86 | 181.70 | 16.40 | 286.83 | 0.2910 | -778.0 | -636.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 11.20 | 181.59 | 16.29 | 288.06 | 0.2907 | -763.0 | -581.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 6.48 | 180.70 | 15.40 | 271.52 | 0.2652 | -686.0 | -543.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 10.96 | 180.36 | 15.05 | 288.43 | 0.2700 | -656.0 | -515.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 8.71 | 180.22 | 14.91 | 280.19 | 0.2596 | -714.0 | -551.4 | |
| 0.00 | 3.70 | 0.00 | 1.90 | 9.61 | 179.62 | 14.32 | 284.07 | 0.2525 | -818.0 | -760.9 | |
| 0.63 | 2.53 | 0.32 | 1.29 | 9.28 | 179.57 | 14.27 | 282.80 | 0.2506 | -1071.1 | -930.3 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 8.13 | 179.40 | 14.10 | 278.29 | 0.2448 | -873.0 | -704.7 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 8.86 | 179.43 | 14.13 | 281.22 | 0.2470 | -933.0 | -726.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 9.38 | 179.29 | 13.99 | 283.41 | 0.2463 | -781.0 | -616.7 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 8.62 | 179.23 | 13.93 | 280.39 | 0.2430 | -763.0 | -644.1 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 8.49 | 178.46 | 13.16 | 280.31 | 0.2300 | -856.0 | -771.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 12.30 | 178.38 | 13.08 | 295.88 | 0.2468 | -875.0 | -734.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.42 | 177.75 | 12.45 | 289.34 | 0.2257 | -993.0 | -827.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 3.44 | 177.43 | 12.13 | 257.23 | 0.2160 | -768.0 | -580.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.57 | 177.10 | 11.80 | 295.14 | 0.2223 | -755.0 | -582.2 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 8.34 | 176.92 | 11.62 | 280.75 | 0.2037 | -676.0 | -583.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.47 | 176.86 | 11.56 | 281.40 | 0.2031 | -897.0 | -786.0 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 10.57 | 176.81 | 11.51 | 291.32 | 0.2115 | -797.0 | -629.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 8.53 | 176.67 | 11.37 | 281.88 | 0.2002 | -841.0 | -708.1 | |
| 0.00 | 8.67 | 0.00 | 4.38 | 8.81 | 176.59 | 11.29 | 283.32 | 0.1997 | -869.0 | -732.7 | |
| 0.00 | 2.44 | 0.00 | 1.23 | 8.23 | 176.51 | 11.21 | 280.52 | 0.1965 | -638.0 | -491.6 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 6.11 | 176.20 | 10.90 | 269.58 | 0.1889 | -770.0 | -473.6 | |
| 0.00 | 2.71 | 0.00 | 1.37 | 8.85 | 176.25 | 10.94 | 283.87 | 0.1941 | -808.0 | -734.1 | |
| 0.00 | 6.59 | 0.00 | 3.33 | 8.55 | 176.05 | 10.75 | 282.54 | 0.1898 | -965.0 | -780.9 | |
| 0.00 | 2.89 | 0.00 | 1.46 | 9.22 | 176.01 | 10.70 | 286.03 | 0.1916 | -832.0 | -635.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.97 | 176.00 | 10.70 | 284.80 | 0.1905 | -888.0 | -649.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 9.36 | 175.07 | 9.77 | 288.13 | 0.1770 | -657.0 | -558.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.73 | 174.58 | 9.28 | 291.06 | 0.1711 | 679.0 | 535.2 | |
| 0.36 | 1.35 | 0.18 | 0.68 | 9.80 | 174.24 | 8.94 | 292.13 | 0.1661 | 959.8 | 769.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 9.53 | 174.11 | 8.81 | 290.85 | 0.1623 | 720.0 | 597.2 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.13 | 174.04 | 8.74 | 282.41 | 0.1548 | 763.0 | 581.8 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 10.02 | 173.90 | 8.60 | 294.13 | 0.1622 | 823.0 | 601.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.19 | 173.80 | 8.49 | 283.16 | 0.1508 | 905.0 | 713.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.72 | 173.71 | 8.41 | 292.84 | 0.1571 | 949.0 | 756.2 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 10.57 | 173.70 | 8.40 | 297.74 | 0.1630 | 863.0 | 617.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 8.90 | 173.66 | 8.36 | 287.90 | 0.1516 | 611.0 | 498.8 | |
| 2.53 | 5.06 | 1.27 | 2.53 | 8.47 | 173.49 | 8.19 | 285.45 | 0.1469 | 976.9 | 697.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.33 | 173.26 | 7.96 | 297.64 | 0.1544 | 957.0 | 784.9 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.12 | 173.17 | 7.86 | 290.35 | 0.1447 | 957.0 | 718.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.67 | 172.69 | 7.39 | 288.35 | 0.1346 | 1069.0 | 964.1 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.28 | 172.63 | 7.33 | 299.23 | 0.1446 | 952.0 | 808.5 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.40 | 172.56 | 7.26 | 286.65 | 0.1311 | 928.0 | 712.1 | |
| 0.00 | 2.71 | 0.00 | 1.36 | 10.25 | 172.38 | 7.08 | 299.89 | 0.1406 | 890.0 | 772.4 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 8.92 | 172.32 | 7.02 | 291.02 | 0.1300 | 986.0 | 780.4 | |
| 2.71 | 12.19 | 1.35 | 6.09 | 10.01 | 172.19 | 6.89 | 299.00 | 0.1357 | 1113.3 | 959.9 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 8.80 | 172.14 | 6.83 | 290.64 | 0.1262 | 1018.0 | 790.8 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.40 | 171.97 | 6.67 | 288.03 | 0.1214 | 921.0 | 697.7 | |
| 0.81 | -49.00 | 0.41 | -49.00 | 9.62 | 171.87 | 6.57 | 297.45 | 0.1277 | 1212.6 | 999999 | |
| 2.62 | 4.42 | 1.31 | 2.21 | 9.44 | 171.56 | 6.26 | 297.27 | 0.1215 | 1184.9 | 835.6 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 9.02 | 171.27 | 5.97 | 295.05 | 0.1139 | 823.0 | 729.6 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 9.42 | 171.19 | 5.89 | 298.49 | 0.1156 | 1216.0 | 944.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.81 | 171.13 | 5.83 | 301.69 | 0.1182 | 1027.0 | 814.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.15 | 171.09 | 5.79 | 296.73 | 0.1120 | 873.0 | 737.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.06 | 170.89 | 5.59 | 304.56 | 0.1170 | 684.0 | 525.7 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.02 | 168.19 | 2.89 | 313.72 | 0.0691 | 864.0 | 697.0 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.11 | 167.97 | 2.67 | 316.88 | 0.0676 | 980.0 | 783.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 1.35 | 159.72 | -5.58 | 131.43 | 0.1304 | 878.0 | 656.6 | |
| 0.45 | 1.99 | 0.23 | 0.99 | 5.14 | 159.03 | -6.28 | 100.20 | 0.1111 | 1018.6 | 771.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
