SDO HMI 2014-08-09 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140.75 | 740.08 | 85.25 | 445.93 | 12.28 | 128.10 | -34.45 | 77.18 | 0.5689 | -29.6 | -33.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-09 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

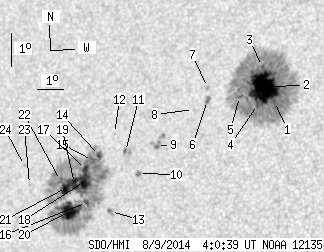

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 379.81 | 1.20 | 221.08 | 13.63 | 131.78 | -30.77 | 74.04 | 0.5192 | -1266.3 | -391.0 | |
| 58.45 | -1.00 | 34.02 | -1.00 | 14.03 | 131.32 | -31.23 | 73.43 | 0.5269 | -1229.5 | 999999 | |
| 0.27 | -1.00 | 0.16 | -1.00 | 14.67 | 131.18 | -31.37 | 72.29 | 0.5307 | -742.7 | 999999 | |
| 0.27 | -1.00 | 0.16 | -1.00 | 13.50 | 131.18 | -31.38 | 74.47 | 0.5275 | -812.7 | 999999 | |
| 1.36 | -1.00 | 0.80 | -1.00 | 13.71 | 130.48 | -32.07 | 74.31 | 0.5379 | -442.6 | 999999 | |
| 1.08 | 3.79 | 0.64 | 2.25 | 13.52 | 129.32 | -33.23 | 74.99 | 0.5538 | -752.8 | -578.2 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 13.92 | 129.26 | -33.29 | 74.30 | 0.5556 | -796.0 | -649.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 13.22 | 128.84 | -33.71 | 75.66 | 0.5598 | -515.0 | -362.7 | |
| 0.72 | 9.12 | 0.44 | 5.51 | 12.01 | 127.63 | -34.92 | 78.05 | 0.5745 | 980.2 | 732.6 | |
| 0.90 | 3.07 | 0.55 | 1.87 | 11.15 | 127.07 | -35.49 | 79.64 | 0.5812 | -761.8 | -596.8 | |
| 0.63 | 4.25 | 0.39 | 2.60 | 11.78 | 126.48 | -36.08 | 78.64 | 0.5902 | 797.7 | 738.4 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 12.30 | 125.97 | -36.58 | 77.85 | 0.5978 | 563.0 | 457.0 | |
| 0.00 | 3.79 | 0.00 | 2.33 | 9.92 | 126.16 | -36.39 | 81.82 | 0.5927 | 876.0 | 726.7 | |
| 2.71 | 331.21 | 1.68 | 207.15 | 11.60 | 125.50 | -37.06 | 79.09 | 0.6034 | -383.6 | 348.8 | |
| 3.88 | -14.00 | 2.42 | -14.00 | 11.43 | 125.25 | -37.30 | 79.41 | 0.6065 | 813.9 | 999999 | |
| 2.53 | -14.00 | 1.57 | -14.00 | 10.14 | 125.20 | -37.35 | 81.54 | 0.6060 | 1031.0 | 999999 | |
| 4.07 | -14.00 | 2.53 | -14.00 | 11.14 | 125.02 | -37.53 | 79.91 | 0.6093 | 909.6 | 999999 | |
| 15.36 | -14.00 | 9.57 | -14.00 | 10.77 | 125.03 | -37.52 | 80.52 | 0.6088 | 1122.9 | 999999 | |
| 9.58 | -14.00 | 6.00 | -14.00 | 10.68 | 124.66 | -37.90 | 80.70 | 0.6139 | 894.5 | 999999 | |
| 25.66 | -14.00 | 16.07 | -14.00 | 9.82 | 124.58 | -37.97 | 82.11 | 0.6143 | 969.1 | 999999 | |
| 9.12 | -14.00 | 5.74 | -14.00 | 10.54 | 124.36 | -38.19 | 80.95 | 0.6177 | 821.6 | 999999 | |
| 2.08 | -14.00 | 1.31 | -14.00 | 10.74 | 124.09 | -38.46 | 80.66 | 0.6215 | 504.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 10.54 | 122.89 | -39.66 | 81.09 | 0.6375 | -652.0 | -587.2 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 11.10 | 122.60 | -39.96 | 80.23 | 0.6417 | -719.0 | -555.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
