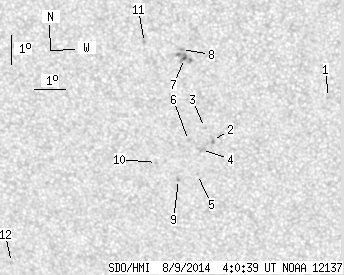

SDO HMI 2014-08-09 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 28.00 | 0.44 | 15.38 | -18.97 | 159.96 | -2.59 | 174.35 | 0.4315 | 733.7 | 610.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-09 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.53 | 164.47 | 1.91 | 184.31 | 0.4232 | 538.0 | 368.8 | |
| 0.00 | 2.53 | 0.00 | 1.40 | -19.98 | 160.73 | -1.82 | 176.14 | 0.4459 | 797.0 | 740.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.54 | 160.48 | -2.08 | 175.53 | 0.4393 | 669.0 | 682.4 | |
| 0.00 | 4.52 | 0.00 | 2.51 | -20.29 | 160.37 | -2.18 | 175.44 | 0.4511 | 721.0 | 574.9 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -21.14 | 160.22 | -2.33 | 175.30 | 0.4645 | 655.0 | 503.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -19.98 | 159.95 | -2.60 | 174.50 | 0.4469 | 688.0 | 611.8 | |
| 0.81 | 10.12 | 0.44 | 5.47 | -17.23 | 159.87 | -2.68 | 173.62 | 0.4037 | 931.8 | 640.0 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -16.93 | 159.78 | -2.77 | 173.31 | 0.3991 | 971.0 | 762.6 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -21.32 | 159.60 | -2.95 | 174.10 | 0.4681 | 771.0 | 681.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -20.74 | 158.90 | -3.66 | 172.53 | 0.4605 | 620.0 | 429.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -16.71 | 158.61 | -3.95 | 170.43 | 0.3982 | 765.0 | 616.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -24.27 | 153.93 | -8.62 | 164.94 | 0.5279 | 590.0 | 439.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
