SDO HMI 2014-08-09 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.81 | 22.85 | 0.98 | 12.52 | -18.73 | 160.21 | -1.25 | 177.18 | 0.4258 | 777.3 | 697.8 | |
|
previous
or next observation for the same group /

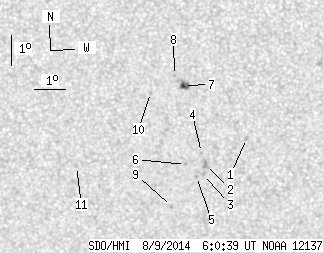

back to the solar disc SDO HMI 2014-08-09 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.04 | -19.00 | 162.06 | 0.60 | 181.33 | 0.4296 | 691.0 | 562.3 | |
| 0.00 | 3.70 | 0.00 | 2.05 | -19.88 | 160.73 | -0.72 | 178.46 | 0.4435 | 813.0 | 770.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -20.22 | 160.67 | -0.79 | 178.34 | 0.4488 | 601.0 | 503.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.47 | 160.61 | -0.85 | 178.16 | 0.4372 | 741.0 | 610.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -20.28 | 160.44 | -1.02 | 177.87 | 0.4500 | 759.0 | 659.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.88 | 160.09 | -1.37 | 177.09 | 0.4439 | 880.0 | 689.5 | |
| 1.81 | 8.22 | 0.98 | 4.44 | -17.23 | 160.05 | -1.41 | 176.64 | 0.4019 | 1002.6 | 812.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.90 | 159.77 | -1.69 | 175.90 | 0.3969 | 922.0 | 750.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.31 | 159.62 | -1.84 | 176.31 | 0.4666 | 781.0 | 689.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.46 | 158.99 | -2.46 | 174.20 | 0.4070 | 703.0 | 593.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -19.96 | 156.56 | -4.90 | 169.71 | 0.4516 | 661.0 | 465.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
