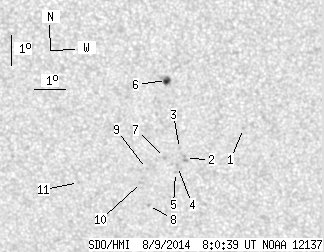

SDO HMI 2014-08-09 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.16 | 20.23 | 1.71 | 11.11 | -19.09 | 160.25 | -0.12 | 179.76 | 0.4310 | 774.3 | 643.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-09 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.77 | 162.67 | 2.30 | 185.13 | 0.4275 | 757.0 | 616.0 | |
| 0.00 | 2.98 | 0.00 | 1.65 | -19.78 | 160.80 | 0.44 | 180.95 | 0.4418 | 666.0 | 702.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -19.44 | 160.61 | 0.25 | 180.54 | 0.4364 | 901.0 | 764.0 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -20.05 | 160.55 | 0.18 | 180.39 | 0.4460 | 773.0 | 656.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -20.25 | 160.48 | 0.12 | 180.25 | 0.4492 | 693.0 | 514.2 | |
| 3.16 | 6.87 | 1.71 | 3.71 | -17.16 | 160.20 | -0.17 | 179.60 | 0.4002 | 1075.1 | 762.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -19.74 | 160.13 | -0.24 | 179.50 | 0.4412 | 719.0 | 587.5 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -21.38 | 159.60 | -0.76 | 178.47 | 0.4669 | 869.0 | 655.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -20.11 | 159.54 | -0.82 | 178.27 | 0.4473 | 689.0 | 586.1 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -20.59 | 159.38 | -0.98 | 177.96 | 0.4548 | 533.0 | 440.7 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -20.60 | 157.33 | -3.03 | 173.76 | 0.4572 | 629.0 | 520.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
