SDO HMI 2014-08-09 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 78.18 | 0.00 | 40.60 | 9.23 | 174.80 | 16.64 | 282.16 | 0.2904 | 128.8 | 168.8 | |
|
previous
or next observation for the same group /

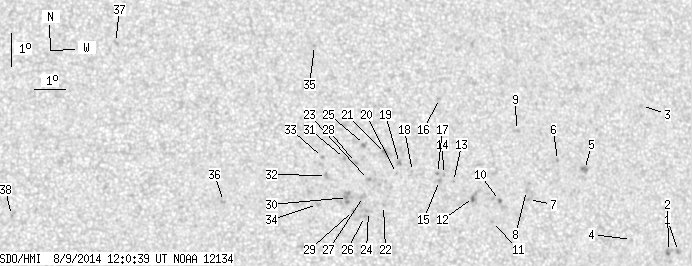

back to the solar disc SDO HMI 2014-08-09 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.08 | 6.77 | 183.05 | 24.89 | 272.46 | 0.4200 | -787.0 | -677.0 | |
| 0.00 | 3.88 | 0.00 | 2.11 | 6.79 | 182.71 | 24.55 | 272.50 | 0.4147 | -996.0 | -797.8 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 11.26 | 182.13 | 23.96 | 283.47 | 0.4113 | -773.0 | -656.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 7.21 | 181.50 | 23.33 | 273.55 | 0.3953 | -727.0 | -525.9 | |
| 0.00 | 4.25 | 0.00 | 2.27 | 9.40 | 180.07 | 21.90 | 279.49 | 0.3747 | -706.0 | -651.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 9.71 | 179.19 | 21.03 | 280.62 | 0.3614 | -906.0 | -743.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 8.56 | 178.17 | 20.00 | 277.69 | 0.3428 | -810.0 | -697.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 8.84 | 178.12 | 19.95 | 278.50 | 0.3424 | -811.0 | -564.5 | |
| 0.00 | 2.71 | 0.00 | 1.43 | 10.67 | 177.91 | 19.74 | 283.92 | 0.3435 | -712.0 | -551.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 8.57 | 177.22 | 19.06 | 277.96 | 0.3274 | -955.0 | -847.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 7.94 | 176.96 | 18.80 | 276.08 | 0.3224 | -823.0 | -596.0 | |
| 0.00 | 4.06 | 0.00 | 2.12 | 8.69 | 176.39 | 18.22 | 278.60 | 0.3140 | -970.0 | -846.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 9.20 | 175.76 | 17.60 | 280.48 | 0.3049 | -787.0 | -620.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 9.42 | 175.45 | 17.29 | 281.37 | 0.3004 | -812.0 | -738.6 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 9.24 | 175.32 | 17.15 | 280.85 | 0.2977 | -951.0 | -688.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 11.74 | 175.46 | 17.30 | 288.83 | 0.3089 | 729.0 | 566.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 9.46 | 175.26 | 17.10 | 281.59 | 0.2974 | -970.0 | -821.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 9.54 | 174.46 | 16.30 | 282.35 | 0.2845 | 317.0 | 265.4 | |
| 0.00 | 2.89 | 0.00 | 1.49 | 9.80 | 174.06 | 15.89 | 283.51 | 0.2788 | 914.0 | 744.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 9.50 | 173.95 | 15.78 | 282.51 | 0.2760 | 674.0 | 523.8 | |
| 0.00 | 3.70 | 0.00 | 1.91 | 10.12 | 173.62 | 15.46 | 284.96 | 0.2728 | 896.0 | 802.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 8.54 | 173.49 | 15.32 | 279.25 | 0.2660 | 637.0 | 460.8 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 9.34 | 173.04 | 14.88 | 282.54 | 0.2607 | 1036.0 | 849.7 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 8.37 | 173.00 | 14.84 | 278.83 | 0.2576 | 801.0 | 679.4 | |
| 0.00 | 2.62 | 0.00 | 1.34 | 10.41 | 172.97 | 14.80 | 286.60 | 0.2634 | 752.0 | 645.6 | |
| 0.00 | 3.25 | 0.00 | 1.67 | 8.22 | 172.87 | 14.71 | 278.32 | 0.2551 | 848.0 | 624.2 | |
| 0.00 | 3.43 | 0.00 | 1.76 | 8.83 | 172.86 | 14.70 | 280.69 | 0.2563 | 829.0 | 729.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 9.87 | 172.65 | 14.49 | 284.85 | 0.2562 | 868.0 | 730.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 8.41 | 172.53 | 14.36 | 279.24 | 0.2498 | 969.0 | 849.1 | |
| 0.00 | 8.31 | 0.00 | 4.25 | 8.82 | 172.35 | 14.19 | 280.94 | 0.2478 | 1064.0 | 880.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 10.00 | 172.31 | 14.15 | 285.67 | 0.2511 | 1036.0 | 751.8 | |
| 0.00 | 2.53 | 0.00 | 1.29 | 9.50 | 171.72 | 13.55 | 284.20 | 0.2395 | 1087.0 | 825.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 10.05 | 171.61 | 13.45 | 286.55 | 0.2400 | 953.0 | 747.1 | |
| 0.00 | 2.44 | 0.00 | 1.24 | 8.63 | 171.40 | 13.23 | 280.79 | 0.2314 | 864.0 | 647.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 13.48 | 171.53 | 13.37 | 299.55 | 0.2596 | 776.0 | 662.0 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 8.79 | 168.45 | 10.29 | 284.24 | 0.1829 | 657.0 | 655.0 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 13.70 | 165.22 | 7.05 | 317.27 | 0.1766 | 831.0 | 695.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.46 | 161.88 | 3.71 | 300.35 | 0.0745 | 853.0 | 703.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
