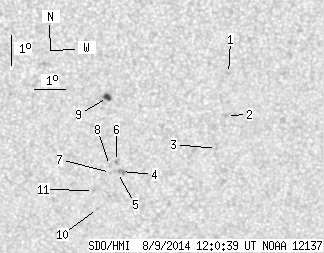

SDO HMI 2014-08-09 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.98 | 18.22 | 1.61 | 10.00 | -18.80 | 161.14 | 2.98 | 186.65 | 0.4295 | 783.1 | 689.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-09 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.41 | 164.28 | 6.12 | 194.84 | 0.4009 | 787.0 | 640.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -17.80 | 164.26 | 6.10 | 193.92 | 0.4223 | 742.0 | 591.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.90 | 163.98 | 5.82 | 192.69 | 0.4381 | 449.0 | 365.9 | |
| 0.00 | 3.43 | 0.00 | 1.89 | -19.65 | 160.93 | 2.77 | 185.93 | 0.4420 | 848.0 | 791.2 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -19.68 | 160.80 | 2.64 | 185.64 | 0.4423 | 720.0 | 643.0 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -19.31 | 160.76 | 2.60 | 185.65 | 0.4364 | 935.0 | 787.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.68 | 160.57 | 2.41 | 185.16 | 0.4419 | 633.0 | 580.3 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -19.44 | 160.54 | 2.38 | 185.14 | 0.4382 | 835.0 | 692.7 | |
| 2.98 | 4.70 | 1.61 | 2.54 | -17.17 | 160.45 | 2.28 | 185.46 | 0.4020 | 1064.2 | 865.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -20.90 | 160.17 | 2.01 | 184.09 | 0.4605 | 657.0 | 535.4 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -20.29 | 160.03 | 1.87 | 183.91 | 0.4508 | 773.0 | 599.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
