SDO HMI 2014-08-09 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.52 | 15.45 | 1.91 | 8.46 | -18.55 | 161.04 | 3.42 | 187.74 | 0.4263 | 858.0 | 722.6 | |
|
previous
or next observation for the same group /

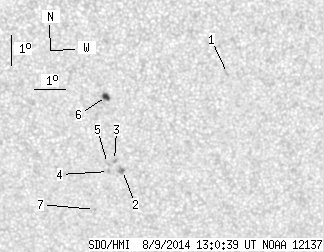

back to the solar disc SDO HMI 2014-08-09 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.83 | -16.42 | 164.33 | 6.72 | 196.22 | 0.4036 | 633.0 | 599.5 | |
| 0.54 | 3.88 | 0.30 | 2.14 | -19.62 | 161.05 | 3.44 | 187.36 | 0.4427 | 861.3 | 775.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.28 | 160.79 | 3.17 | 186.90 | 0.4369 | 931.0 | 832.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -19.65 | 160.60 | 2.99 | 186.40 | 0.4424 | 837.0 | 605.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -19.38 | 160.56 | 2.95 | 186.39 | 0.4381 | 792.0 | 674.8 | |
| 2.98 | 4.97 | 1.61 | 2.69 | -17.14 | 160.50 | 2.88 | 186.89 | 0.4026 | 1047.3 | 797.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -20.94 | 160.17 | 2.56 | 185.19 | 0.4617 | 788.0 | 657.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
