SDO HMI 2014-08-09 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 78.81 | 0.19 | 41.42 | 9.09 | 175.64 | 18.57 | 280.80 | 0.3218 | -37.6 | 97.8 | |
|
previous
or next observation for the same group /

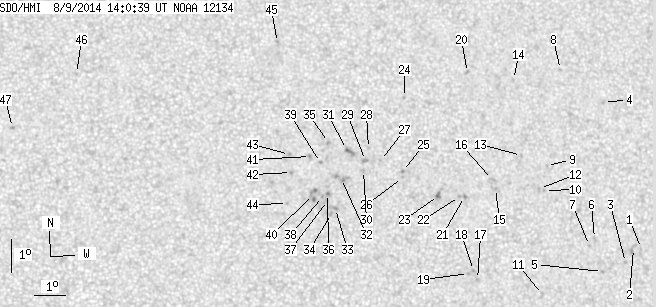

back to the solar disc SDO HMI 2014-08-09 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.40 | 6.78 | 183.07 | 26.00 | 272.50 | 0.4376 | -748.0 | -613.6 | |
| 0.00 | 4.42 | 0.00 | 2.43 | 6.79 | 182.79 | 25.73 | 272.52 | 0.4333 | -711.0 | -751.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 6.38 | 182.50 | 25.44 | 271.55 | 0.4288 | -812.0 | -691.3 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 11.27 | 182.12 | 25.05 | 283.07 | 0.4281 | -804.0 | -630.8 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 6.14 | 181.71 | 24.65 | 270.94 | 0.4164 | -707.0 | -602.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 7.16 | 181.50 | 24.43 | 273.39 | 0.4129 | -743.0 | -623.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 6.95 | 181.32 | 24.25 | 272.89 | 0.4100 | -780.0 | -569.6 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 12.35 | 180.75 | 23.69 | 286.19 | 0.4104 | -628.0 | -493.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 9.44 | 180.03 | 22.97 | 279.30 | 0.3918 | -715.0 | -559.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 8.69 | 179.91 | 22.85 | 277.39 | 0.3888 | -652.0 | -532.0 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 5.53 | 179.68 | 22.62 | 269.20 | 0.3845 | -662.0 | -473.5 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 8.76 | 179.75 | 22.69 | 277.60 | 0.3863 | -845.0 | -582.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 9.78 | 179.22 | 22.16 | 280.42 | 0.3796 | -874.0 | -727.1 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 12.11 | 179.14 | 22.08 | 286.47 | 0.3849 | -707.0 | -654.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 8.82 | 178.30 | 21.24 | 278.09 | 0.3631 | -818.0 | -742.4 | |
| 0.00 | 2.26 | 0.00 | 1.20 | 9.09 | 178.21 | 21.15 | 278.88 | 0.3622 | -827.0 | -676.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 6.08 | 177.56 | 20.50 | 270.43 | 0.3498 | -804.0 | -647.0 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 6.36 | 177.45 | 20.39 | 271.23 | 0.3478 | -897.0 | -619.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 6.27 | 177.28 | 20.22 | 270.97 | 0.3451 | -795.0 | -613.9 | |
| 0.00 | 1.99 | 0.00 | 1.06 | 12.38 | 177.63 | 20.57 | 288.14 | 0.3626 | -886.0 | -722.8 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 8.61 | 177.26 | 20.20 | 277.78 | 0.3461 | -949.0 | -796.1 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 8.62 | 177.10 | 20.04 | 277.84 | 0.3435 | -882.0 | -618.8 | |
| 0.00 | 2.89 | 0.00 | 1.52 | 8.68 | 176.42 | 19.36 | 278.20 | 0.3325 | -985.0 | -792.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 11.70 | 175.50 | 18.44 | 287.76 | 0.3266 | 747.0 | 562.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 9.45 | 175.29 | 18.23 | 281.00 | 0.3157 | -934.0 | -784.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 9.27 | 175.28 | 18.22 | 280.43 | 0.3151 | -777.0 | -633.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 9.81 | 174.60 | 17.54 | 282.50 | 0.3055 | 524.0 | 438.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 10.19 | 174.23 | 17.17 | 283.95 | 0.3007 | 737.0 | 483.4 | |
| 0.00 | 2.89 | 0.00 | 1.50 | 9.82 | 174.11 | 17.05 | 282.83 | 0.2977 | 820.0 | 781.9 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 9.52 | 174.03 | 16.97 | 281.87 | 0.2955 | 733.0 | 556.0 | |
| 0.36 | 4.42 | 0.19 | 2.29 | 10.18 | 173.52 | 16.46 | 284.41 | 0.2892 | 900.5 | 781.2 | |
| 0.00 | 7.77 | 0.00 | 4.01 | 9.30 | 173.31 | 16.25 | 281.52 | 0.2831 | 582.0 | 787.7 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 8.40 | 173.08 | 16.02 | 278.41 | 0.2772 | 828.0 | 724.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 8.25 | 172.95 | 15.89 | 277.93 | 0.2747 | 826.0 | 695.8 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 10.41 | 172.95 | 15.89 | 285.64 | 0.2809 | 827.0 | 728.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 8.86 | 172.85 | 15.78 | 280.19 | 0.2743 | 1038.0 | 895.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 8.65 | 172.84 | 15.78 | 279.43 | 0.2737 | 845.0 | 747.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 8.77 | 172.68 | 15.62 | 279.96 | 0.2714 | 956.0 | 810.9 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 9.81 | 172.67 | 15.61 | 283.73 | 0.2741 | 935.0 | 763.6 | |
| 0.00 | 5.60 | 0.00 | 2.88 | 8.84 | 172.40 | 15.34 | 280.37 | 0.2669 | 566.0 | 886.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 10.00 | 172.36 | 15.30 | 284.66 | 0.2697 | 881.0 | 710.9 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 9.53 | 171.73 | 14.67 | 283.40 | 0.2578 | 1085.0 | 861.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 10.08 | 171.69 | 14.63 | 285.52 | 0.2592 | 965.0 | 708.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 8.59 | 171.56 | 14.50 | 279.87 | 0.2524 | 922.0 | 717.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 13.51 | 171.49 | 14.43 | 297.92 | 0.2755 | 691.0 | 630.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 12.70 | 165.06 | 8.00 | 309.56 | 0.1769 | 678.0 | 496.7 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 11.08 | 163.01 | 5.95 | 309.38 | 0.1323 | 910.0 | 671.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
