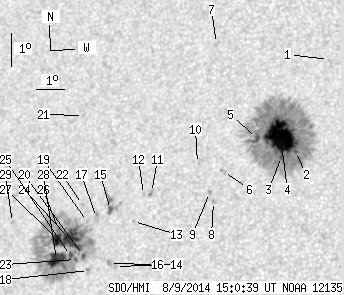

SDO HMI 2014-08-09 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.54 | 709.83 | 68.08 | 400.25 | 12.43 | 128.58 | -27.93 | 74.90 | 0.4755 | -86.2 | -69.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-09 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.39 | 16.54 | 133.22 | -23.29 | 63.87 | 0.4240 | -756.0 | -675.6 | |
| 1.17 | 387.34 | 0.64 | 212.57 | 13.67 | 132.42 | -24.09 | 70.92 | 0.4214 | -1052.3 | -401.9 | |
| 3.43 | -2.00 | 1.88 | -2.00 | 13.50 | 131.95 | -24.55 | 71.58 | 0.4276 | -990.0 | 999999 | |
| 54.90 | -2.00 | 30.12 | -2.00 | 14.11 | 131.85 | -24.66 | 70.26 | 0.4316 | -1206.6 | 999999 | |
| 4.06 | -2.00 | 2.24 | -2.00 | 14.01 | 131.03 | -25.48 | 70.95 | 0.4433 | -577.2 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.56 | 12.95 | 130.01 | -26.50 | 73.76 | 0.4548 | -711.0 | -589.9 | |
| 0.00 | 2.53 | 0.00 | 1.43 | 16.86 | 129.24 | -27.27 | 66.07 | 0.4817 | -626.0 | -530.2 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 12.02 | 129.76 | -26.75 | 75.88 | 0.4558 | 582.0 | 422.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 12.29 | 129.59 | -26.92 | 75.36 | 0.4590 | 827.0 | 577.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 13.15 | 129.07 | -27.44 | 73.73 | 0.4693 | -637.0 | -629.0 | |
| 0.00 | 2.98 | 0.00 | 1.69 | 12.19 | 127.56 | -28.95 | 76.27 | 0.4890 | 878.0 | 732.3 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 12.11 | 127.28 | -29.22 | 76.51 | 0.4929 | 774.0 | 677.5 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 11.27 | 127.02 | -29.48 | 78.27 | 0.4949 | -739.0 | -598.0 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 9.87 | 126.53 | -29.98 | 81.19 | 0.5001 | 868.0 | 553.9 | |
| 2.08 | 13.99 | 1.19 | 8.04 | 11.59 | 126.16 | -30.34 | 77.85 | 0.5082 | -726.7 | 177.3 | |
| 0.00 | 2.26 | 0.00 | 1.29 | 9.95 | 126.31 | -30.20 | 81.06 | 0.5035 | 814.0 | 763.2 | |
| 0.00 | 4.33 | 0.00 | 2.50 | 11.32 | 125.69 | -30.82 | 78.48 | 0.5147 | 371.0 | 254.6 | |
| 0.00 | 3.34 | 0.00 | 1.93 | 9.70 | 125.58 | -30.93 | 81.66 | 0.5140 | 852.0 | 708.0 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 11.18 | 125.38 | -31.13 | 78.82 | 0.5190 | 181.0 | 189.5 | |
| 1.63 | 277.37 | 0.94 | 161.87 | 10.14 | 125.35 | -31.15 | 80.83 | 0.5179 | 1039.9 | 333.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 14.40 | 124.79 | -31.72 | 72.92 | 0.5348 | 648.0 | 528.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 11.69 | 125.14 | -31.37 | 77.90 | 0.5234 | 750.0 | 655.9 | |
| 0.99 | -20.00 | 0.58 | -20.00 | 10.00 | 125.08 | -31.43 | 81.14 | 0.5218 | 894.5 | 999999 | |
| 20.95 | -20.00 | 12.18 | -20.00 | 10.60 | 124.83 | -31.68 | 80.03 | 0.5261 | 1041.7 | 999999 | |
| 2.44 | -20.00 | 1.42 | -20.00 | 10.12 | 124.89 | -31.62 | 80.95 | 0.5247 | 976.7 | 999999 | |
| 3.16 | -20.00 | 1.85 | -20.00 | 10.88 | 124.36 | -32.15 | 79.59 | 0.5333 | 675.6 | 999999 | |
| 9.57 | -20.00 | 5.60 | -20.00 | 10.58 | 124.36 | -32.15 | 80.16 | 0.5329 | 850.7 | 999999 | |
| 16.16 | -20.00 | 9.44 | -20.00 | 9.97 | 124.39 | -32.12 | 81.30 | 0.5318 | 933.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.81 | 11.00 | 122.65 | -33.86 | 79.66 | 0.5581 | -767.0 | -645.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
