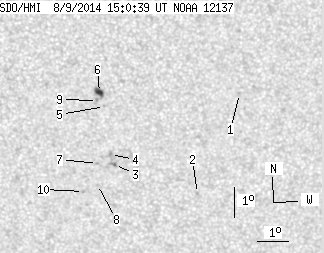

SDO HMI 2014-08-09 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.42 | 19.03 | 2.40 | 10.44 | -18.51 | 161.19 | 4.68 | 190.45 | 0.4289 | 838.5 | 662.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-09 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.69 | -17.24 | 165.07 | 8.56 | 199.62 | 0.4250 | 771.0 | 609.4 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -20.58 | 163.86 | 7.35 | 194.85 | 0.4692 | 638.0 | 443.8 | |
| 0.36 | 3.25 | 0.20 | 1.80 | -19.56 | 161.12 | 4.61 | 189.85 | 0.4446 | 846.0 | 679.1 | |
| 0.00 | 2.17 | 0.00 | 1.19 | -19.22 | 160.98 | 4.47 | 189.70 | 0.4390 | 946.0 | 766.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -17.61 | 160.75 | 4.24 | 189.86 | 0.4132 | 815.0 | 639.6 | |
| 4.06 | 6.41 | 2.20 | 3.47 | -17.14 | 160.58 | 4.07 | 189.68 | 0.4054 | 1039.3 | 731.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.52 | 160.57 | 4.06 | 188.71 | 0.4426 | 839.0 | 691.7 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -20.23 | 160.59 | 4.08 | 188.50 | 0.4536 | 604.0 | 442.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -17.41 | 160.52 | 4.01 | 189.43 | 0.4094 | 844.0 | 688.5 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -20.46 | 160.14 | 3.63 | 187.50 | 0.4563 | 800.0 | 659.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
